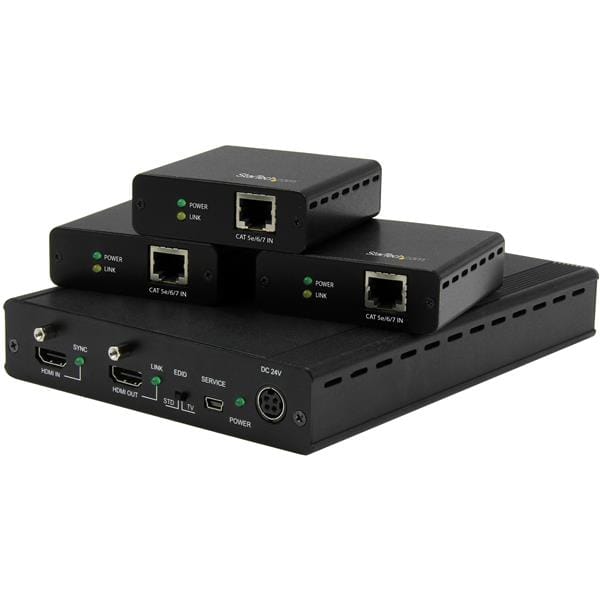

This 3-Port HDBaseT™ extender kit lets you extend an HDMI® source to three remote locations, using HDBaseT technology. The kit includes three remote receiver units, and the transmitter features a local HDMI output, which gives you the ability to keep a fourth HDMI display at your local video source.
A complete extender kit that includes transmitter and receivers
This all-in-one extender kit saves you the complications and compatibility issues that can happen if you're not using the correct receivers. It?s perfect for use in corporate environments such as small or large offices, or in retail, hospitality, and educational establishments.
Astonishing 4K picture quality from an impressive distance
With the A/V industry adopting 4K as its new high-resolution standard, long-range video distribution can be difficult, especially considering the 4K distance limitations on standard HDMI cables. You?ll be amazed at how this HDBase-T extender kit can deliver your video signal to three different locations while maintaining 4K Ultra HD picture quality. You get four times the resolution of high-definition 1080p, even at 115 feet (35 m) away from your video source.
The extender is also backward compatible with 1080p at 230 feet (70 m), so you can comfortably use it to make any video source look great.
Professional installation
HDBaseT technology offers a single-cable installation, so you can integrate this solution seamlessly using your existing CAT5e or CAT6 infrastructure. Plus, each device included with the HDBaseT extender kit is mountable, so you can keep the equipment out of sight in an equipment rack, or on a wall. This helps to reduce clutter and ensure a professional installation that doesn't draw your viewers' attention away from the content on your display. It?s perfect for customer-facing displays in bars or restaurants.
What is HDBaseT?
HDBaseT is a standardized, zero-latency video technology that?s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video, along with additional signals, over a single Ethernet cable.
Offering greater versatility than traditional HDMI extenders, and longer distances than HDMI cables alone, HDBaseT is the clear choice for every integrator and system designer. It can do so much, with just a single cable.
The ST124HDBT is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| Environmental | |
| Humidity | 0% - 80 % RH (non-condensing) |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -10?C to 60?C (14?F to 140?F) |
| Hardware | |
| Audio | Yes |
| Cabling | Cat 5e UTP or better |
| Daisy-Chain | Yes |
| Output Signal | HDMI |
| Ports | 4 |
| Rack-Mountable | Yes |
| Packaging Information | |
| Shipping (Package) Weight | 1600 g [56.5 oz] |
| Performance | |
| Max Distance | 70 m / 230 ft |
| Maximum 1080p Distance | Maximum 1080p Distance: 70 m (230 ft.) |
| Maximum 4K Distance | Maximum 4K Distance: 35 m (115 ft.) |
| Maximum Cable Length | 70000 mm [2755.9 in] |
| Maximum Digital Resolutions | 4096 x 2160 (4K) @ 30 Hz - maximum distance 35 m (115 ft.) 1920x1080 (1080p) - maximum distance 70 m (230 ft.) |
| Supported Resolutions | 4k x 2K (Ultra HD) @ 30 Hz 2560x1600 @ 60 Hz 1920x1200 1920x1080 (1080p) 1280x720 (720p) |
| Physical Characteristics | |
| Product Height | 70 mm [2.8 in] |
| Product Length | 289 mm [11.4 in] |
| Product Weight | 1600 g [56.5 oz] |
| Product Width | 262 mm [10.3 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 1.5A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 2.7A |
| Output Voltage | 24 DC |
| Plug Type | 4-pin DIN |
| Power Consumption (In Watts) | 64.8 |
| Power Source | AC Adapter Included |
| Special Notes / Requirements | |
| Note | CAT6 STP Cables provide protection against electromagnetic interference and cross-talk, and are highly recommended for use with this product. |
| What's in the Box | |
| Included in Package | 3-port HDBaseT extender |
| HDBaseT receivers | |
| IR blasters | |
| IR receivers | |
| quick start guide | |
| universal power adapter (NA / EU / UK / AU) | |
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Cable types supported | Cat5e,Cat6,Cat7 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 70 m |
| Maximum refresh rate | 30 Hz |
| LED indicators | Link,Power |
| Supported video modes The video modes that can be displayed by the device. | 720p,1080p,2160p |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA),4096 x 2160 |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| HDCP & EDID bypass |
|
| Daisy chain |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, REACH, TAA |
| Ports & interfaces | |
| RJ-45 input ports | 3 |
| RJ-45 output ports | 3 |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 4 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Operating voltage Defines the range of operating voltages available | 24 V |
| Input current | 1.5 A |
| Output current | 2.7 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 64.8 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 145 mm |
| Depth The distance from the front to the back of something. | 200 mm |
| Height The measurement of the product from head to foot or from base to top. | 30 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 299 mm |
| Package depth The distance from the front to the back of the packaging. | 363 mm |
| Package height The distance from the top to the bottom of the packaging. | 98 mm |
| Package weight Weight of the packaged product. | 2.6 kg |
| Packaging content | |
| AC adapter included |
|
| Included power plug types | AU,EU,NA,UK |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| IR blaster included |
|
| IR receiver included |
|
| Technical details | |
| Audio support |
|
| Country of origin Country where the device is made. | Taiwan |
| SKU | 245721 |
| MPN | ST124HDBT |
| Brand | Startech |
| Product Condition | Brand New/Unused |
