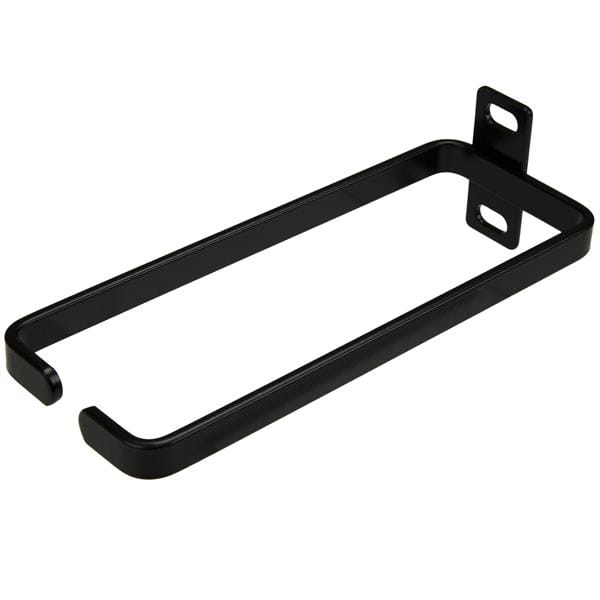

The CMHOOK1UL Vertical Cable Management D-ring lets you add a 1U metal cable hook to your server rack or cabinet to provide an organized channel for your cables. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Constructed of high-quality steel, the cable D-ring measures 2.2 x 5.9in (5.7 x 15cm) and offers a flexible opening for easy insertion of bundled cables. Providing strain relief for attached cables, multiple cable rings can be attached to your rack where you need them for a versatile cable management solution.
Please see our other cable management D-ring products for different size configurations:
1U Cable Management D-ring - 2.2 x 3.9in (5.7 x 10cm) - CMHOOK1U
1U Cable Management D-ring - 1.8 x 3.9in (4.5 x 10cm) - CMHOOK1UN
Backed by a StarTech.com 2-year warranty.
| Hardware | |
| Industry Standards | EIA RS310-D |
| Orientation | Vertical |
| U Height | 1U |
| Packaging Information | |
| Shipping (Package) Weight | 119 g [4.2 oz] |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| External Height | 57 mm [2.2 in] |
| External Width | 154.7 mm [6.1 in] |
| Internal Height | 50.6 mm [2 in] |
| Internal Width | 146 mm [5.7 in] |
| What's in the Box | |
| Included in Package | 2.2x5.9in (5.7x15cm) Cable Management Hook |
| Features | |
| Type Characteristics of the device. | Cable ring |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Steel |
| Rack capacity The spase that device fill in rack. | 1U |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Compliance industry standards List of characteristics that describe methods of compliance to industry-defined standards for the product | EIA RS310-D |
| Certification | CE, REACH, TAA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 57 mm |
| Depth The distance from the front to the back of something. | 155 mm |
| Height The measurement of the product from head to foot or from base to top. | 45 mm |
| Mounting depth (min) | 5.06 cm |
| Mounting depth (max) | 14.6 cm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 109 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package length | 6.69 |
| Package width The distance from one side of the packaging to the other. | 125 mm |
| Package depth The distance from the front to the back of the packaging. | 225 mm |
| Package height The distance from the top to the bottom of the packaging. | 46 mm |
| Package weight Weight of the packaged product. | 114 g |
| SKU | 240429 |
| MPN | CMHOOK1UL |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
