StarTech.com 1-Port 2.5GbE M.2 2280 Network Card, Multi-Gigabit Speeds (2.5G/1G/100M/10M), NBASE-T (802.3bz) NIC, M.2 B+M Key, PCIe Ethernet Interface, For SFF/Desktop PCs - TAA, Internal, Wired, M.2, Ethernet, 2500 Mbit/s, Red
M.2 PCIe network card featuring the Intel® I225-V-chip, offering multi-gigabit speeds with support for NBASE-T
This 2.5 GbE M.2 Network Interface Card (NIC) features an Intel I225-V chipset with Intel vPro® technology, for enhanced performance and data integrity. Variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support of new and legacy network hardware. Leverage existing Cat5e or CAT6 cabling infrastructure while adding 2.5GBASE-T (802.3bz) compatibility for seamless integration.
Increased Network Speed
The PCIe network card takes advantage of Intel vPro® technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and online content streaming or uploading while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.
Enhance Existing Hardware

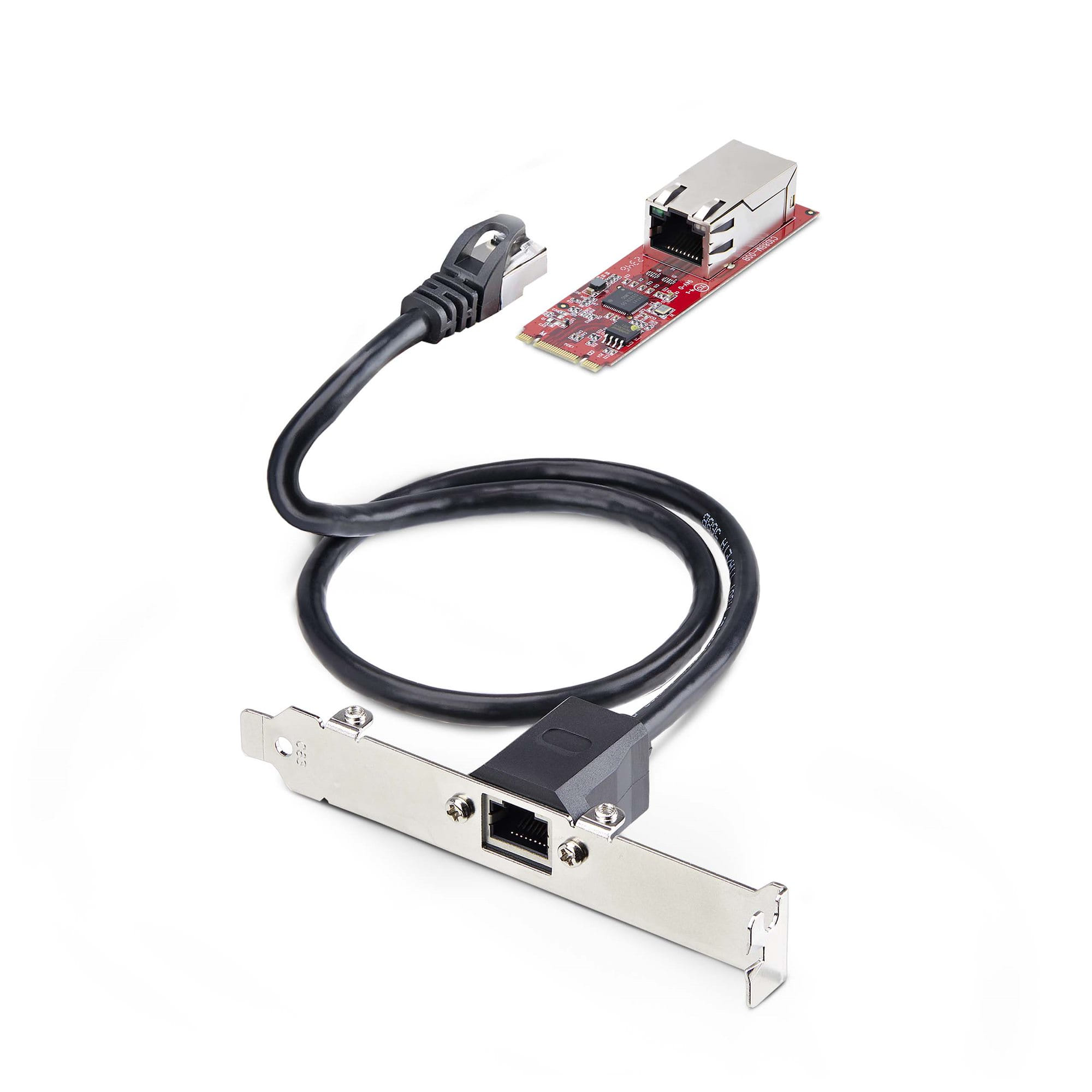

The network adapter card connects to an available M.2 2280 PCIe slot (B or M key compatible). Standard and low-profile brackets and a 2ft (60cm) Cat6 adapter cable are included for versatile installation. Compatible with Windows, and Linux.
Advanced Features
This Ethernet card supports the following advanced features: PXE Boot, Wake-on-Lan (WoL), VLAN tagging, 9K jumbo frame, half-duplex, auto-negotiation, and Error Correcting Memory (ECC) for optimal network functionality.
The StarTech.com Advantage
This 2.5 GbE M.2 Network Interface Card (NIC) features an Intel I225-V chipset with Intel vPro® technology, for enhanced performance and data integrity. Variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support of new and legacy network hardware. Leverage existing Cat5e or CAT6 cabling infrastructure while adding 2.5GBASE-T (802.3bz) compatibility for seamless integration.
Increased Network Speed
The PCIe network card takes advantage of Intel vPro® technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and online content streaming or uploading while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.
Enhance Existing Hardware
The network adapter card connects to an available M.2 2280 PCIe slot (B or M key compatible). Standard and low-profile brackets and a 2ft (60cm) Cat6 adapter cable are included for versatile installation. Compatible with Windows, and Linux.
Advanced Features
This Ethernet card supports the following advanced features: PXE Boot, Wake-on-Lan (WoL), VLAN tagging, 9K jumbo frame, half-duplex, auto-negotiation, and Error Correcting Memory (ECC) for optimal network functionality.
The StarTech.com Advantage
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | M.2 |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Ethernet |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| PCI version | 2.0 |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 2500 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,2500 Mbit/s |
| Cabling technology Type of cable technology performance. | NBase-T |
| Wake-on-LAN ready |
|
| Jumbo frames support |
|
| Jumbo frames | 9000 |
| Design | |
| Component for What this product is used as a part of (component for). | PC/Server |
| Product colour The colour e.g. red, blue, green, black, white. | Red |
| Internal The product is built in. |
|
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Intel I225-V |
| LED indicators |
|
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Sustainability | |
| Sustainability compliance |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 80 mm |
| Depth The distance from the front to the back of something. | 22 mm |
| Height The measurement of the product from head to foot or from base to top. | 15 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 15 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 142 mm |
| Package depth The distance from the front to the back of the packaging. | 170 mm |
| Package height The distance from the top to the bottom of the packaging. | 30 mm |
| Package weight Weight of the packaged product. | 170 g |
| Packaging content | |
| Mounting brackets included |
|
| Packaging content | CAT6 Cable Adapter |
| Technical details | |
| Compliance certificates | Trade Agreements Act (TAA) |
| Logistics data | |
| Master (outer) case width | 500 mm |
| Master (outer) case length | 380 mm |
| Master (outer) case height | 310 mm |
| Products per master (outer) case | 60 pc(s) |
| Other features | |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| SKU | 827957 |
| MPN | MR12GI-NETWORK-CARD |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.startech.com/ |
