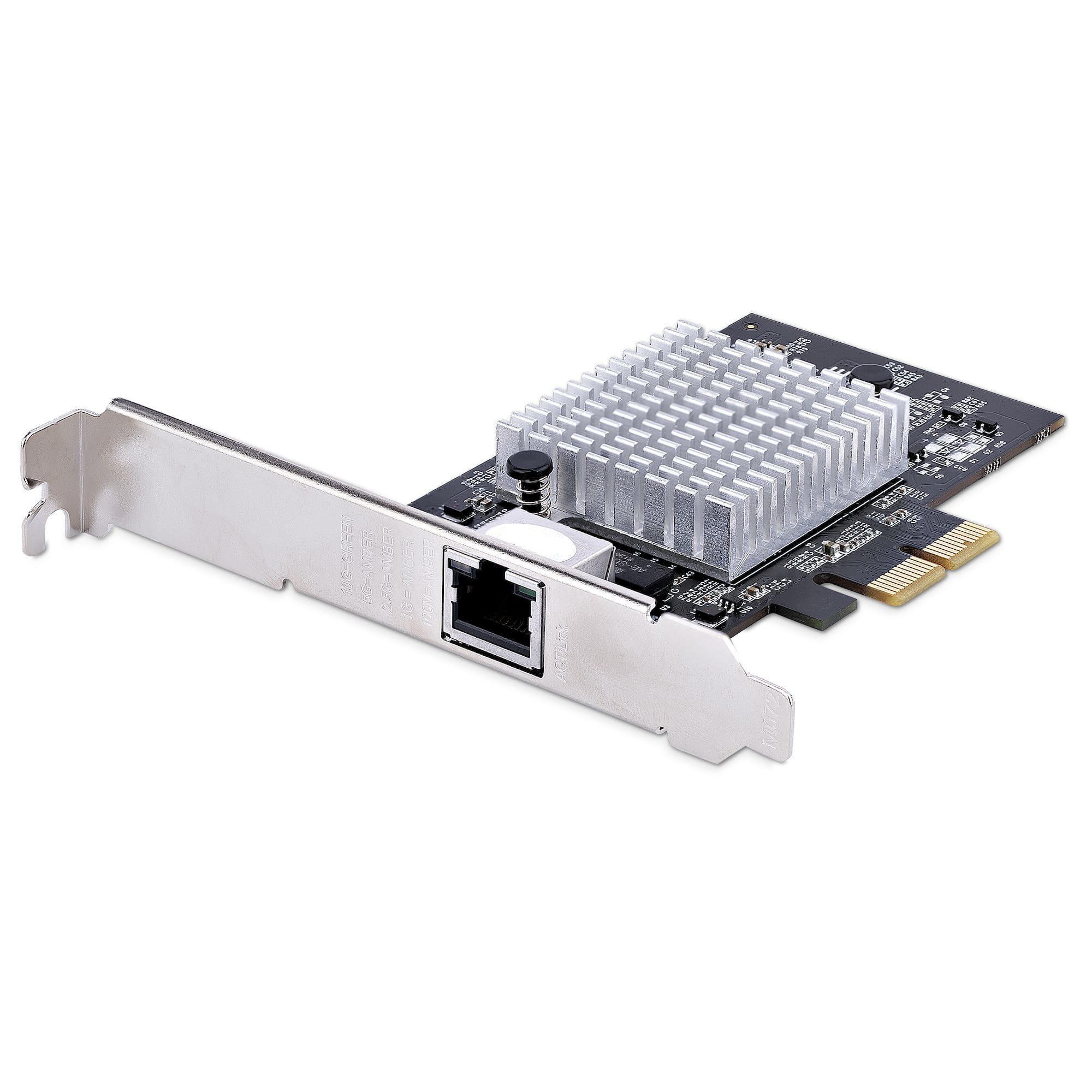

StarTech.com 1 Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Six Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE T and NBASE T, Internal, Wired, PCIe, Ethernet, 10000 Mbit/s, Black
Six Speed AVB PXE Boot x2 PCIe 3.0 Marvell AQC113CSInstall this single port 10GbE PCI Express (PCIe) Network Interface Card (NIC) into a server or computer to enable faster network speeds and enhanced network functionality. This card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps. The variable speeds permit access to legacy hardware. Alternatively, the 10GBASE T and NBASE T capabilities ensure compatibility with the latest network switches and network access points manufactured by Cisco ; HPE ; and Juniper .Increased Network SpeedsThis PCIe network card provides access to increased bandwidth. It reduces network slowdown/degradation when running data intensive applications/processes such as FTPs, online storage/backup, and when streaming online content.NBASE T technology maximizes the capability of Cat5e copper cabling over at distances of up to 100 meters. The Ethernet network card supports a 10 Gbps connection over copper using existing Cat6 (or better) copper cabling.Enhance Existing HardwareThe Network Interface Card connects via an available PCI Express x2 3.0/4.0 (or higher) expansion slot. The card is shipped with a standard profile bracket and includes a low profile bracket for installation in various systems. This card is compatible with Windows, Windows Server, and Linux.Take advantage of advanced features such as Audio Video Bridging (AVB), VLAN tagging, 16 K jumbo frame, full duplex, secure boot, and PXE.The PCI Express 10G NIC is backed for 2 years, including free lifetime 24/5 multi lingual technical assistance.The StarTech.com Advantage
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCIe |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Ethernet |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| PCI version | 3.0 |
| PCI Card form factor Design of the PCI Card. | Full-height (low-profile) |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 10000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 1588, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,2500,5000,10000 Mbit/s |
| Cabling technology Type of cable technology performance. | 10GBase-T |
| Auto MDIX IEEE |
|
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Jumbo frames support |
|
| Jumbo frames | 16000 |
| Design | |
| Component for What this product is used as a part of (component for). | PC |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Internal The product is built in. |
|
| LED indicators |
|
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 70 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 107 mm |
| Depth The distance from the front to the back of something. | 121 mm |
| Height The measurement of the product from head to foot or from base to top. | 22 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 70 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 210 mm |
| Package depth The distance from the front to the back of the packaging. | 145 mm |
| Package height The distance from the top to the bottom of the packaging. | 35 mm |
| Package weight Weight of the packaged product. | 120 g |
| Packaging content | |
| Mounting brackets included |
|
| Quick installation guide |
|
| Logistics data | |
| Master (outer) case width | 445 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case height | 320 mm |
| Products per master (outer) case | 40 pc(s) |
| SKU | 749756 |
| MPN | ST10GSPEXNB2 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.startech.com/ |
