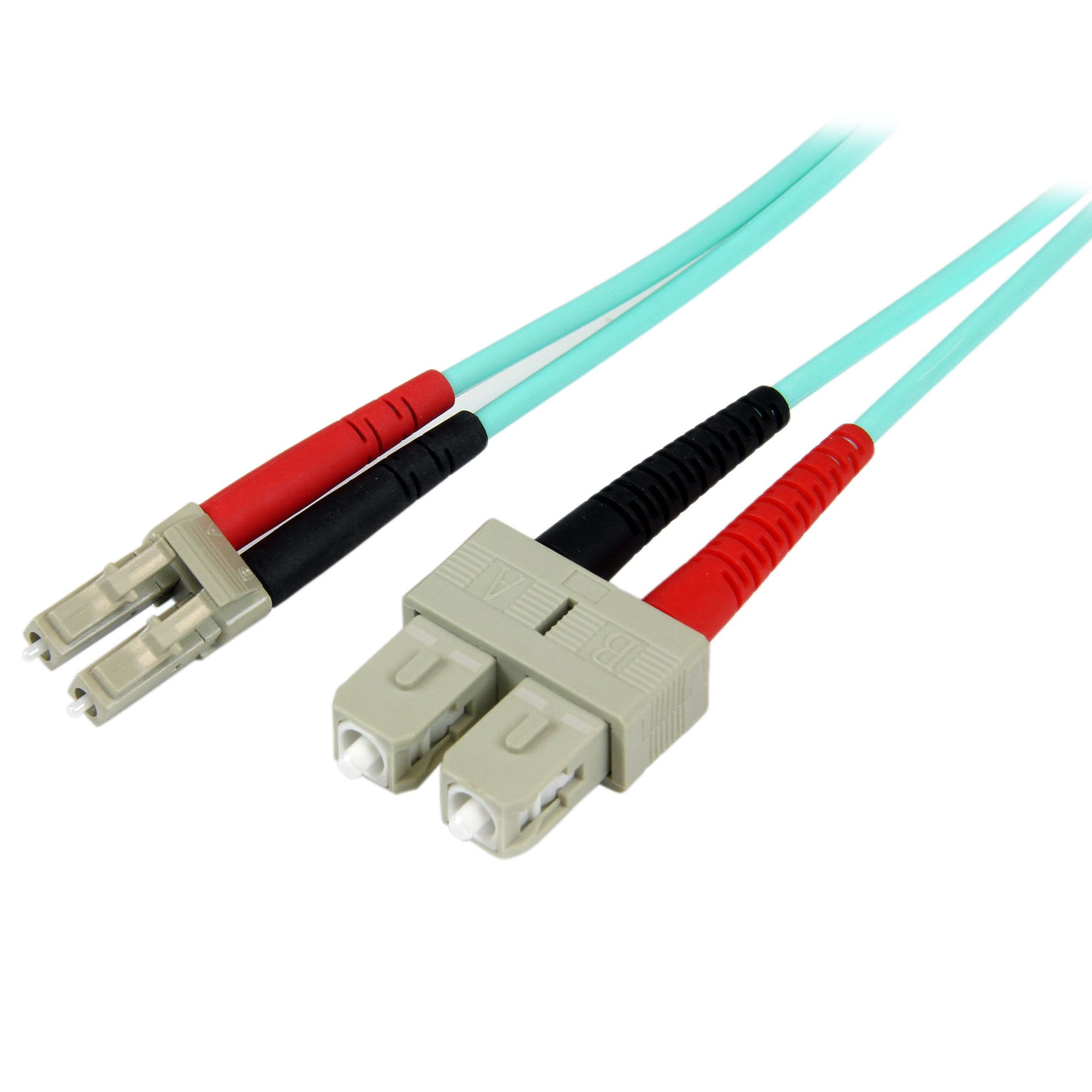

Perfect for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment, this high speed 10 Gigabit Multimode Duplex Fiber Cable is terminated with LC and SC connectors, and is composed of 50/125 micron OM3 aqua fiber to deliver reliable data transfers at blinding speeds.
Suited for a broad range of environments, A50FBLCSC1 is housed in a flame retardant, LSZH (Low-Smoke, Zero-Halogen) cable jacket, taking safety to a new level by ensuring minimal smoke, toxicity and corrosion in the event of a fire ? making it the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
| Connector(s) | |
| Connector A | Fiber Optic LC Duplex Male |
| Connector B | Fiber Optic SC Duplex Male |
| Hardware | |
| Fiber Size | 50/125 |
| Fire Rating | LSZH Rated (Low Smoke Zero Halogen) |
| Packaging Information | |
| Shipping (Package) Weight | 0 kg [0.1 lb] |
| Performance | |
| Cable Rating | Fiber - 10 Gbit/s |
| Fiber Classification | OM3 |
| Fiber Type | Multi Mode |
| Maximum Data Transfer Rate | 10Gbps |
| Wavelength | 850nm |
| Physical Characteristics | |
| Cable Length | 1 m [3.3 ft] |
| Color | Aqua |
| Diameter | 3mm |
| Product Length | 1 m [3.3 ft] |
| Features | |
| Cable length How long the cable is. | 1 m |
| Connector 1 This is the first connector in the device. | LC |
| Connector 2 This is the second connector in the device. | SC |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| Fibre optic type The standardised properties of the fiber optic cable. | OM3 |
| Cable colour Colour of the cable e.g. white, gray. | Turquoise |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
 |
| Core diameter The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire. | 50 µm |
| Cladding diameter The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire. | 125 µm |
| Fiber mode structure | Multi-mode |
| Wavelengths supported | 850 nm |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 10 Gbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Halogen-free |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Weight & dimensions | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 3 mm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 200 mm |
| Package depth The distance from the front to the back of the packaging. | 220 mm |
| Package height The distance from the top to the bottom of the packaging. | 26 mm |
| Package weight Weight of the packaged product. | 35 g |
| SKU | 239575 |
| MPN | A50FBLCSC1 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
