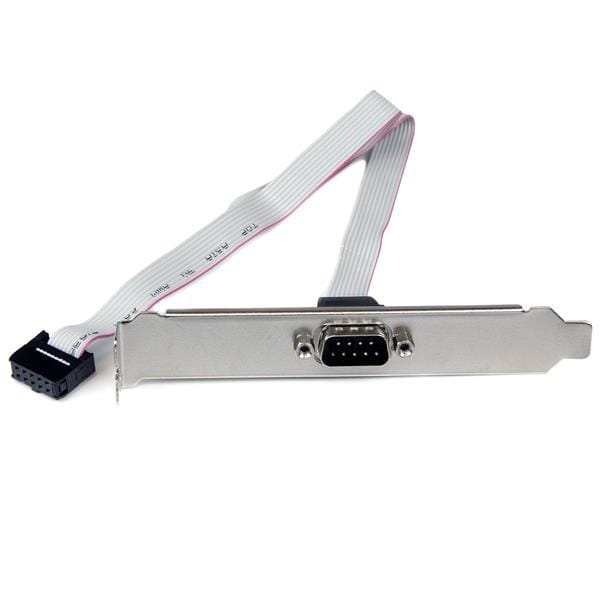

This 9-pin Serial to 10-pin Header Slot Plate adapter features one DB9 male connector and one IDC10 connector. The adapter is constructed of high quality components and expertly designed to ensure durability and reliability.
Please refer to the Technical Specifications to ensure your motherboard is compatible with this product.
| Connector(s) | |
| Connector A | IDC (10 pin, Motherboard Header) Female |
| Connector B | DB-9 (9 pin, D-Sub) Male |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.1 lb] |
| Physical Characteristics | |
| Cable Length | 406.4 mm [16 in] |
| Color | Gray |
| Product Length | 406.4 mm [16 in] |
| Product Weight | 48 g [1.7 oz] |
| Special Notes / Requirements | |
| Note | Conforms to Apex10-Everex-Intel Specification, please refer to wiring diagram manual on the Support tab |
| What's in the Box | |
| Included in Package | 16in (40cm) 9 Pin Serial Male to 10 Pin Motherboard Header Slot Plate |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | IDC |
| Output interface The socket (port) where the output connectors are connected. | Serial |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| Serial interface type | RS-232 |
| Design | |
| Internal The product is built in. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Gray |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, REACH |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 121 mm |
| Depth The distance from the front to the back of something. | 406.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 21 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 31 g |
| Packaging data | |
| Quantity The number of products there are. | 1 |
| Package width The distance from one side of the packaging to the other. | 128 mm |
| Package depth The distance from the front to the back of the packaging. | 220 |
| Package height The distance from the top to the bottom of the packaging. | 220 mm |
| Package weight Weight of the packaged product. | 36 g |
| Other features | |
| I/O ports An interface on a device to which you can connect another device. | DB9 Male IDC 10 |
| Cable length How long the cable is. | 0.406 m |
| Package length | 8.66 |
| SKU | 244307 |
| MPN | PLATE9M16 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
