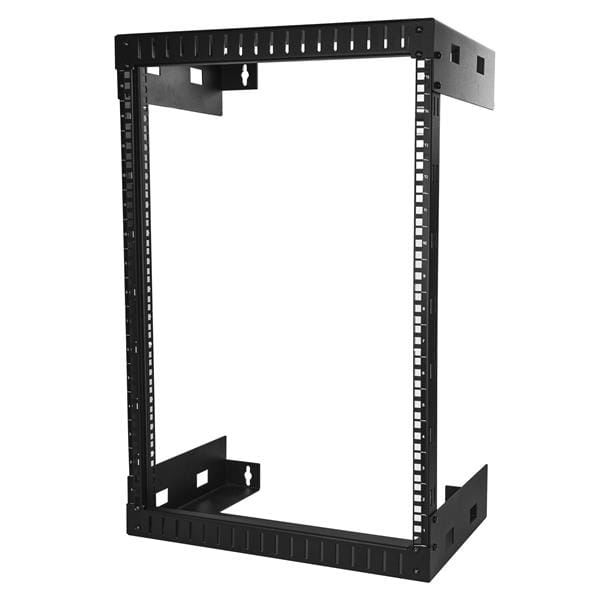

This open-frame wall-mount server rack provides 15U of storage, allowing you to save space and stay organized. The equipment rack can hold up to 198 lb. (90 kg).
Easy, hassle-free installation
The network rack is 12 in. (30.4 cm) deep, so it?s perfect for smaller spaces. It?s easy to assemble and features mounting holes that are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing. The wall-mount rack comes in a flat-pack making it easy to transport and reducing your cost in shipping.
Free up space
You can mount the open-frame rack where space is limited, such as on a server room wall, office, or above a doorway, to expand your workspace and ensure your equipment is easy to access.
Keep your equipment cool and accessible
By having an open frame the server rack provides passive cooling to equipment. Additionally, the open frame provides easy access and configurability to your equipment, allowing you to maximize productivity.
The RK15WALLO is backed by a StarTech.com 5-year warranty and free lifetime technical support.
| Hardware | |
| U Markings | Yes |
| Wallmountable | Yes |
| Packaging Information | |
| Shipping (Package) Weight | 13 kg [28.7 lb] |
| Performance | |
| Weight Capacity (Stationary) | 90 kg [198.9 lb] |
| Physical Characteristics | |
| External Height | 77.5 cm [30.5 in] |
| External Width | 50.4 cm [19.8 in] |
| Internal Depth | 29.2 cm [11.5 in] |
| Internal Height | 66.8 cm [26.3 in] |
| Internal Width | 46.5 cm [18.3 in] |
| Maximum Mounting Depth | 30.5 cm [12 in] |
| Product Height | 77.5 cm [30.5 in] |
| Product Length | 30.5 cm [12 in] |
| Product Weight | 12.5 kg [27.6 lb] |
| Product Width | 50.4 cm [19.8 in] |
| What's in the Box | |
| Included in Package | assembly screws |
| horizontal brackets | |
| instruction manual | |
| M6 cage nuts | |
| M6 screws | |
| vertical rails | |
| washers | |
| Hardware | |
| U Height | 15U |
| Style | Wall-Mount |
| Rack Type | 2-Post |
| Number and Type of Included Cage Nuts | M6 |
| Mounting Holes | Square |
| Ladder Type | G-Shape |
| Ladder Offset | 10 mm [0.4 in] |
| Industry Standards | EIA-310-D |
| Frame Type | Open Frame |
| Fan(s) | No |
| Cable Management | No |
| Adjustable Mounting Rails | No |
| Features | |
| Rack capacity The spase that device fill in rack. | 15U |
| Type Characteristics of the device. | Wall mounted rack |
| Maximum weight capacity The maximum weight that the product is designed to hold/store. | 90 kg |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Steel |
| Frame type | Open |
| Design The creation of a plan or convention for the construction of an object or a system. | 2-post |
| Adjustable mounting rails |
 |
| Cable management Description of improved cable management |
|
| Mounting hole shape | Square |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Certification | CE, REACH |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 505 mm |
| Depth The distance from the front to the back of something. | 310 mm |
| Height The measurement of the product from head to foot or from base to top. | 775 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 9.7 kg |
| Mounting depth (max) | 30.5 cm |
| Packaging data | |
| Nuts included |
|
| Number of nuts | 60 |
| Screws included |
|
| Number of screws | 76 |
| Number of washers included | 60 |
| Manual |
|
| Package width The distance from one side of the packaging to the other. | 530 mm |
| Package depth The distance from the front to the back of the packaging. | 800 mm |
| Package height The distance from the top to the bottom of the packaging. | 125 mm |
| Package weight Weight of the packaged product. | 11.7 kg |
| Logistics data | |
| Master (outer) case width | 53 cm |
| Master (outer) case length | 80 cm |
| Master (outer) case height | 12.5 cm |
| Quantity per master (outer) case | 1 pc(s) |
| Other features | |
| Compliance industry standards List of characteristics that describe methods of compliance to industry-defined standards for the product | EIA/ECA-310-E |
| SKU | 249060 |
| MPN | RK15WALLO |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
