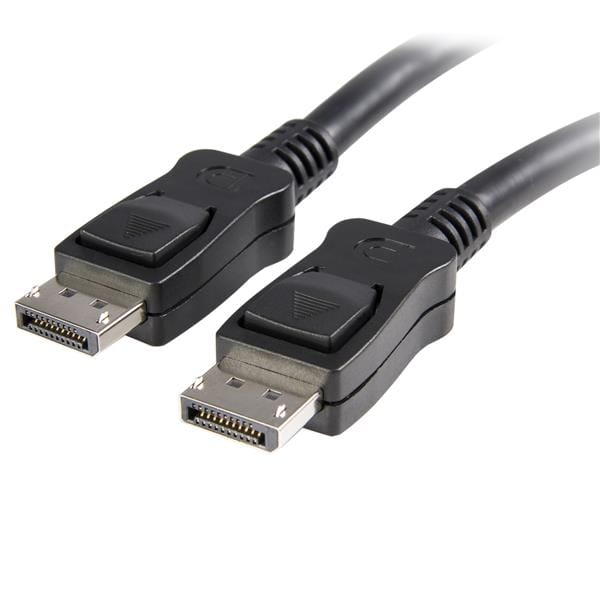

The DISPLPORT15L DisplayPort™ 1.2 Cable with latches provides a secure connection between your DisplayPort-equipped devices and allows for a connection distance of up to 15-feet between your source and display.
The DP cable is capable of providing higher performance than either HDMI® or dual link DVI with support for high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz and a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The DISPLPORT15L long DisplayPort cable is backed by StarTech.com?s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
| Connector(s) | |
| Connector A | DisplayPort (20 pin) Male Latching |
| Connector B | DisplayPort (20 pin) Male Latching |
| Hardware | |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Cable Shield Type | Aluminum-Mylar Foil with Braid |
| Connector Plating | Nickel |
| Fire Rating | CMG Rated (General Purpose) |
| Number of Conductors | 19 |
| Packaging Information | |
| Shipping (Package) Weight | 0.3 kg [0.6 lb] |
| Physical Characteristics | |
| Cable Length | 4.6 m [15 ft] |
| Cable OD | 7.3 mm [0.3 in] |
| Color | Black |
| Connector Style | Latching |
| Product Weight | 0.3 kg [0.6 lb] |
| Wire Gauge | 28 AWG |
| What's in the Box | |
| Included in Package | 15 ft DisplayPort? Cable with Latches - M/M |
| Features | |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Nickel |
| DisplayPort version | 1.2 |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| DisplayPort Content Protection (DPCP) |
|
| Cable length How long the cable is. | 4.6 m |
| Connector 1 This is the first connector in the device. | DisplayPort |
| Connector 2 This is the second connector in the device. | DisplayPort |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Latching connectors |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cable rating | CMG (CM) |
| Cable shielding The protective layer for the cable, typically made of plastic. | Aluminum mylar foil |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| Bandwidth | 21600 MB/s |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Number of conductors | 19 |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Packaging data | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 7.3 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 300 g |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 38 mm |
| Package depth The distance from the front to the back of the packaging. | 135 mm |
| Package height The distance from the top to the bottom of the packaging. | 376 mm |
| Package weight Weight of the packaged product. | 300 g |
| SKU | 240618 |
| MPN | DISPLPORT15L |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
