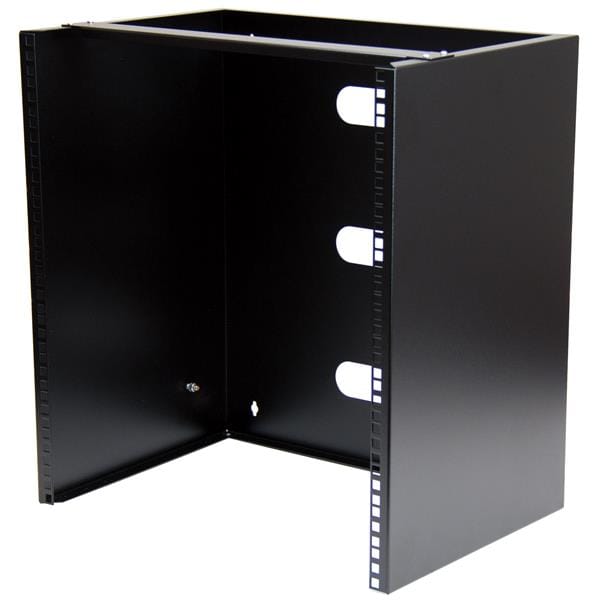

This wall-mount bracket provides 12U of space for mounting shallow rack-mount equipment that's 12 in. deep or less to the wall, such as patch panels or network switches.
Improve efficiency and accessibility in your workspace
The 12U rack optimizes your working space by efficiently mounting your shallow equipment on your wall instead of taking up desk space or other usable surface areas. It?s the perfect solution for your space-limited SoHo (small office, home office) environment or server room because it doesn?t take up any floor space.
Ensure a secure and hassle-free installation
The wall rack is constructed of solid steel to ensure a sturdy and safe mounting solution for your mission-critical equipment. Also, because the wall-mount rack's mounting holes are positioned 16 in. apart, it exactly matches standard drywall construction framework to ensure simple and secure wall-stud anchoring. The rack also features a rear access panel that can be used to easily run cabling into the rack.
Cage nuts and screws are included with the wall-mount bracket, to save you the hassle of sourcing separate mounting hardware.
If you're looking for a shallow mounting solution with fewer rack units, StarTech.com also offers a 6U wall-mount bracket, and an 8U wall-mount bracket.
The WALLMNT12 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
| Hardware | |
| Fan(s) | No |
| Frame Type | Open Frame |
| Front Door Construction | Open |
| Rack Type | 2-Post |
| U Height | 12U |
| Wallmountable | Yes |
| Packaging Information | |
| Shipping (Package) Weight | 1 kg [2.2 lb] |
| Performance | |
| Weight Capacity | 56.7 kg [125.3 lb] |
| Physical Characteristics | |
| Color | Black |
| External Depth | 350 mm [13.8 in] |
| External Height | 540.3 mm [21.3 in] |
| External Width | 520.7 mm [20.5 in] |
| Internal Height | 520.7 mm [20.5 in] |
| Internal Width | 449.7 mm [17.7 in] |
| Product Height | 540.3 mm [21.3 in] |
| Product Length | 349.3 mm [13.7 in] |
| Product Weight | 1 kg [2.2 lb] |
| Product Width | 499.6 mm [19.7 in] |
| What's in the Box | |
| Included in Package | instruction manual |
| M5 cage nuts | |
| M5 screws with washers | |
| M6 K-nut | |
| wall-mount bracket | |
| wood screws | |
| Features | |
| Rack capacity The spase that device fill in rack. | 12U |
| Type Characteristics of the device. | Wall mounted rack |
| Maximum weight capacity The maximum weight that the product is designed to hold/store. | 56.7 kg |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Steel |
| Frame type | Open |
| Design The creation of a plan or convention for the construction of an object or a system. | 2-post |
| Adjustable mounting rails |
 |
| Cable management Description of improved cable management |
|
| Mounting hole shape | Square |
| Castor wheels A castor (or caster) wheel is an undriven, single, double, or compound wheel that is designed to be mounted to the bottom of a larger object (the "vehicle") so as to enable that object to be easily moved. They are available in various sizes, and are commonly made of rubber, plastic, nylon, aluminum, or stainless steel. Castor wheels are found in numerous applications, including shopping carts, office chairs, and material handling equipment. |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Certification | CE, REACH |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 499 mm |
| Depth The distance from the front to the back of something. | 350 mm |
| Height The measurement of the product from head to foot or from base to top. | 541 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 8.7 kg |
| Mounting depth (max) | 34.3 cm |
| Packaging data | |
| Nuts included |
|
| Number of nuts | 37 |
| Screws included |
|
| Number of screws | 42 |
| Mounting kit |
|
| Manual |
|
| Package width The distance from one side of the packaging to the other. | 383 mm |
| Package depth The distance from the front to the back of the packaging. | 530 mm |
| Package height The distance from the top to the bottom of the packaging. | 567 mm |
| Package weight Weight of the packaged product. | 10.9 kg |
| Other features | |
| Compliance industry standards List of characteristics that describe methods of compliance to industry-defined standards for the product | EIA/ECA-310-E |
| SKU | 248073 |
| MPN | WALLMNT12 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
