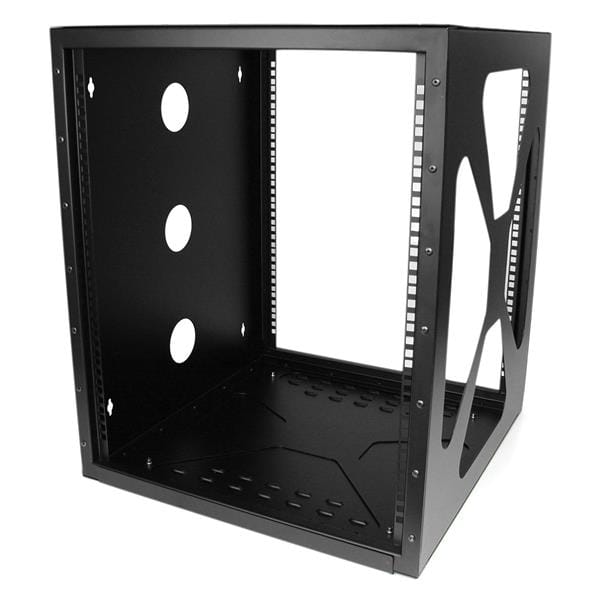

The RK1219SIDEM Wall Mount/Side Mount Deep Open Frame Rack/Cabinet (12U, 19in Wide) lets you mount your servers, A/V or network equipment facing perpendicular to the wall for easy access to mounted devices and equipment. The cabinet/rack features open access to both the front and back of your devices, making it easy to adjust cabling, view LEDs and access configuration buttons as needed; plus, the nature of the sidemount configuration allows for deeper mounting depths than typical wallmount racks. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Constructed of high-quality SPCC cold-rolled steel, for strength and durability, the open frame equipment rack allows for maximum airflow while still supporting a maximum weight capacity of 159 kg (350 lbs). The wall mount rack also ships complete with all of the M5 screws and cage nuts required to mount your equipment, saving the expense of purchasing them separately.
Backed by a StarTech.com Lifetime warranty.
| Hardware | |
| Fan(s) | No |
| Frame Type | Open Frame |
| Front Door Construction | Open |
| Industry Standards | EIA RS310-D |
| Mounting Options | Front Mount (Front and Rear) |
| Rack Type | 4-Post |
| U Height | 12U |
| Wallmountable | Yes |
| Packaging Information | |
| Flat Pack | No |
| Shipping (Package) Weight | 22.6 kg [49.9 lb] |
| Performance | |
| Weight Capacity | 159 kg [351.4 lb] |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| External Depth | 540 mm [21.3 in] |
| External Height | 660 mm [26 in] |
| External Width | 567 mm [22.3 in] |
| Maximum Mounting Depth | 530 mm [20.9 in] |
| Product Weight | 18.8 kg [41.5 lb] |
| What's in the Box | |
| Included in Package | 12U Rack |
| M5 Cage Nuts | |
| M5 Screws | |
| Features | |
| Rack capacity The spase that device fill in rack. | 12U |
| Type Characteristics of the device. | Wall mounted rack |
| Maximum weight capacity The maximum weight that the product is designed to hold/store. | 159 kg |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Steel |
| Frame type | Open |
| Design The creation of a plan or convention for the construction of an object or a system. | 4-post |
| Adjustable mounting rails |
 |
| Fan Apparatus with rotating blades that creates a current of air for cooling or ventilation. |
|
| Mounting hole shape | Square |
| Castor wheels A castor (or caster) wheel is an undriven, single, double, or compound wheel that is designed to be mounted to the bottom of a larger object (the "vehicle") so as to enable that object to be easily moved. They are available in various sizes, and are commonly made of rubber, plastic, nylon, aluminum, or stainless steel. Castor wheels are found in numerous applications, including shopping carts, office chairs, and material handling equipment. |
|
| Certification | UL, CE, RoHS |
| Weight & dimensions | |
| Size (imperial) Physical dimension. | 48.3 cm (19") |
| Width The measurement or extent of something from side to side. | 538 mm |
| Depth The distance from the front to the back of something. | 566 mm |
| Height The measurement of the product from head to foot or from base to top. | 659 mm |
| Inner width | 533 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 18.8 kg |
| Mounting depth (max) | 53 cm |
| Packaging data | |
| Nuts included |
 |
| Number of nuts | 48 |
| Screws included |
|
| Number of screws | 48 |
| Mounting kit |
|
| Package width The distance from one side of the packaging to the other. | 562 mm |
| Package depth The distance from the front to the back of the packaging. | 592 mm |
| Package height The distance from the top to the bottom of the packaging. | 690 mm |
| Package weight Weight of the packaged product. | 24.7 kg |
| Other features | |
| Compliance industry standards List of characteristics that describe methods of compliance to industry-defined standards for the product | EIA-310-D, EIA RS310-D |
| Package length | 22.05 |
| SKU | 244482 |
| MPN | RK1219SIDEM |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
