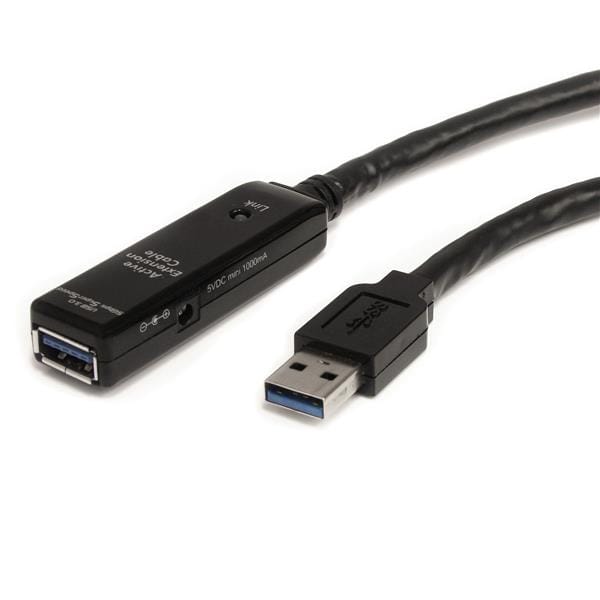

The USB3AAEXT10M, 10-meter Active USB 3.0 Extension Cable, offers one USB type-A (male) connector and one USB type-A (female) connector, and provides an active extension of USB 3.0 devices of up to 10-meters (32.8-feet).
An all-in-one cable for overcoming distance restrictions as well as power source limitations; the active USB 3.0 extension cable incorporates bus-powered active circuitry to ensure performance beyond the length limits of standard USB cables. Up to 2 of these cables can be daisy-chained together, allowing the connection to be extended a total of 20-meters. If necessary, the USB device can be powered from a wall outlet using the Universal AC power adapter provided with the cable.
The USB3AAEXT10M extension cable (USB Extender) supports high speed USB 3.0 transfer rates of up to 5Gbps, and is backed by StarTech.com's 2-year Warranty.
| Connector(s) | |
| Connector A | USB Type-A (9 pin) USB 3.0 Male |
| Connector B | USB Type-A (9 pin) USB 3.0 Female |
| Hardware | |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Connector Plating | Nickel |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 1 kg [2.2 lb] |
| Physical Characteristics | |
| Cable Length | 10 m [32.8 ft] |
| Color | Black |
| Product Height | 10 mm [0.4 in] |
| Product Length | 10 m [32.8 ft] |
| Product Weight | 707 g [25 oz] |
| Product Width | 20 mm [0.8 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.35 A |
| Input Voltage | 110V-240V AC |
| Output Current | 2A |
| Output Voltage | 5 DC |
| Plug Type | H |
| Power Consumption (In Watts) | 10 |
| Power Source | AC Adapter Included |
| Special Notes / Requirements | |
| Note | Cascade up to 2 USB3AAEXT10M devices together for further extension |
| What's in the Box | |
| Included in Package | 10 m USB 3.0 Active Extension Cable - M/F |
| Plug Adapters for North America, UK, Europe, and Australia | |
| Universal Power Adapter | |
| Features | |
| Cable length How long the cable is. | 10 m |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 This is the first connector in the device. | USB A |
| Connector 2 This is the second connector in the device. | USB A |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 5000 Mbit/s |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, REACH |
| Power | |
| Output voltage | 5 V |
| Output current (max) | 2 A |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 491 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package length | 8.86 |
| Package width The distance from one side of the packaging to the other. | 225 mm |
| Package depth The distance from the front to the back of the packaging. | 214 mm |
| Package height The distance from the top to the bottom of the packaging. | 60 mm |
| Package weight Weight of the packaged product. | 758 g |
| Other features | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows 7/Vista/XP |
| SKU | 247114 |
| MPN | USB3AAEXT10M |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
