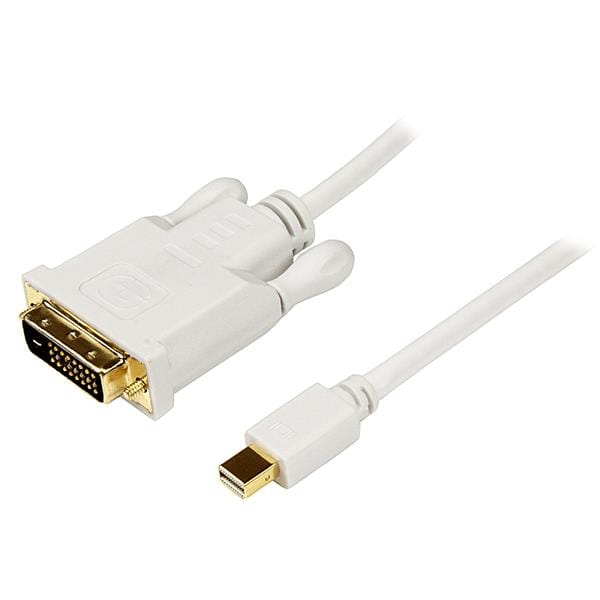

The MDP2DVIMM10W Mini DisplayPort to DVI Adapter Cable lets you directly connect your Mini DP video source (desktop PC, laptop, Ultrabook, etc.) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 10 feet (3 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM10W is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector A | Mini-DisplayPort (20 pin) Male |
| Connector B | DVI-D (25 pin) Male |
| Environmental | |
| Humidity | 40%-85%RH |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Storage Temperature | 0?C to 70?C (32?F to 158?F) |
| Hardware | |
| Adapter Style | Cable Adapter |
| Audio | No |
| Chipset ID | NXP 3361 |
| Converter Type | Passive |
| Output Signal | DVI-D (DVI Digital) |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.4 lb] |
| Performance | |
| Maximum Cable Length | 3 m [10 ft] |
| Maximum Digital Resolutions | 1920x1200 / 1080p |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Cable Length | 3 m [10 ft] |
| Color | White |
| Product Height | 15 mm [0.6 in] |
| Product Length | 3050 mm [120.1 in] |
| Product Weight | 154 g [5.4 oz] |
| Product Width | 37 mm [1.5 in] |
| Special Notes / Requirements | |
| System and Cable Requirements | DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI? signal pass-through |
| What's in the Box | |
| Included in Package | Mini DisplayPort? to DVI Adapter |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length How long the cable is. | 3.05 m |
| Connector 1 This is the first connector in the device. | mini DisplayPort |
| Connector 2 This is the second connector in the device. | DVI-D |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | NXP - 3361 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Converter type | Passive video converter |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, REACH |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | 0 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 200 mm |
| Package depth The distance from the front to the back of the packaging. | 220 mm |
| Package height The distance from the top to the bottom of the packaging. | 18 mm |
| Package weight Weight of the packaged product. | 164 g |
| Package length | 8.46 |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 154 g |
| Width The measurement or extent of something from side to side. | 37 mm |
| Depth The distance from the front to the back of something. | 3000 mm |
| Height The measurement of the product from head to foot or from base to top. | 15 mm |
| SKU | 242837 |
| MPN | MDP2DVIMM10W |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Adapter Type | DisplayPort Adapter |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
