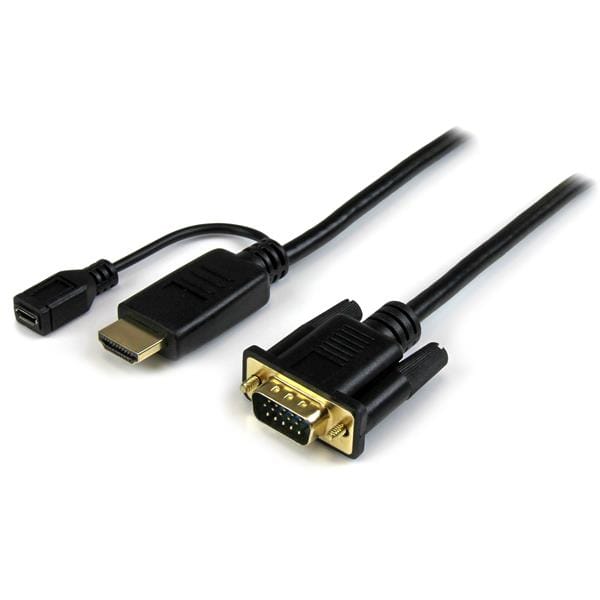

The HD2VGAMM10 10ft HDMI® to VGA converter cable lets you connect your HDMI equipped Chromebook™, laptop or desktop to a VGA monitor or projector, with no additional adapters or cables required.
The converter cable saves you the hassle of combining an HDMI to VGA adapter with a bulky VGA cable by providing an end-to-end solution for connecting your digital HDMI computer to your VGA monitor or projector.
Unlike most HDMI to VGA adapters which require a power outlet to convert the video signal, the HD2VGAMM10 doesn’t need external power in most installations. To work with Mac computers where extra power is needed, the HD2VGAMM10 features an optional integrated USB power source (USB cable not included), which makes connecting a display to your desktop or workstation that much easier, if additional power is required.
In the past, converting digital HDMI to analog VGA was a difficult and expensive task. Now, you can avoid upgrade costs by connecting your HDMI video source to your existing VGA monitor or projector using the HD2VGAMM10. Plus, because the adapter cable supports video resolutions up to 1920x1200 or 1080p, you can rest assured you can use your existing VGA display while maintaining high-definition video quality.
The HD2VGAMM10 converter cable delivers a precise 10ft connection that eliminates the clutter of excess cable length and ensures a tidy, professional installation. For shorter installations, we offer a 3 ft HDMI to VGA cable (HD2VGAMM3), and a 6 ft HDMI to VGA cable (HD2VGAMM6), enabling you to choose the right cable length for your installation needs.
Please note: Digitally encrypted content from the HDMI video source will not be displayed.
The HD2VGAMM10 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| Connector(s) | |
| Connector A | HDMI (19 pin) Male Input |
| Connector B | VGA (15 pin, High Density D-Sub) Male Output |
| Connector Type(s) | USB Micro-B (5 pin) Female |
| Environmental | |
| Humidity | 40%-85%RH |
| Operating Temperature | 0C to 60C (32F to 140F) |
| Storage Temperature | -10C to 70C (14F to 158F) |
| Hardware | |
| Audio | No |
| Chipset ID | Chrontel7101A |
| Converter Type | Active |
| Output Signal | VGA |
| Packaging Information | |
| Shipping (Package) Weight | 190 g [6.7 oz] |
| Performance | |
| Maximum Analog Resolutions | 1920 x 1200 |
| Maximum Cable Length | 3000 mm [118.1 in] |
| Maximum Digital Resolutions | PC resolutions up to 1920 x 1200 @ 60 Hz |
| Physical Characteristics | |
| Cable Length | 3 m [10 ft] |
| Color | Black |
| Product Height | 15 mm [0.6 in] |
| Product Length | 3 m [10 ft] |
| Product Weight | 90 g [3.2 oz] |
| Product Width | 40 mm [1.6 in] |
| Power | |
| Power Source | USB-Powered |
| What's in the Box | |
| Included in Package | 10ft (3m) HDMI to VGA Adapter Cable |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Power source What is providing power for the product e.g. mains electricity. | USB |
| Cable length How long the cable is. | 3 m |
| Connector 1 This is the first connector in the device. | VGA (D-Sub) |
| Connector 2 This is the second connector in the device. | HDMI + Micro USB |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male/Female |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Chrontel - 7101A |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Converter type | Active |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, REACH |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 198 mm |
| Package depth The distance from the front to the back of the packaging. | 915 mm |
| Package height The distance from the top to the bottom of the packaging. | 17 mm |
| Package weight Weight of the packaged product. | 190 g |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 171.8 g |
| Width The measurement or extent of something from side to side. | 40 mm |
| Depth The distance from the front to the back of something. | 3000 mm |
| Height The measurement of the product from head to foot or from base to top. | 15 mm |
| SKU | 241675 |
| MPN | HD2VGAMM10 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
