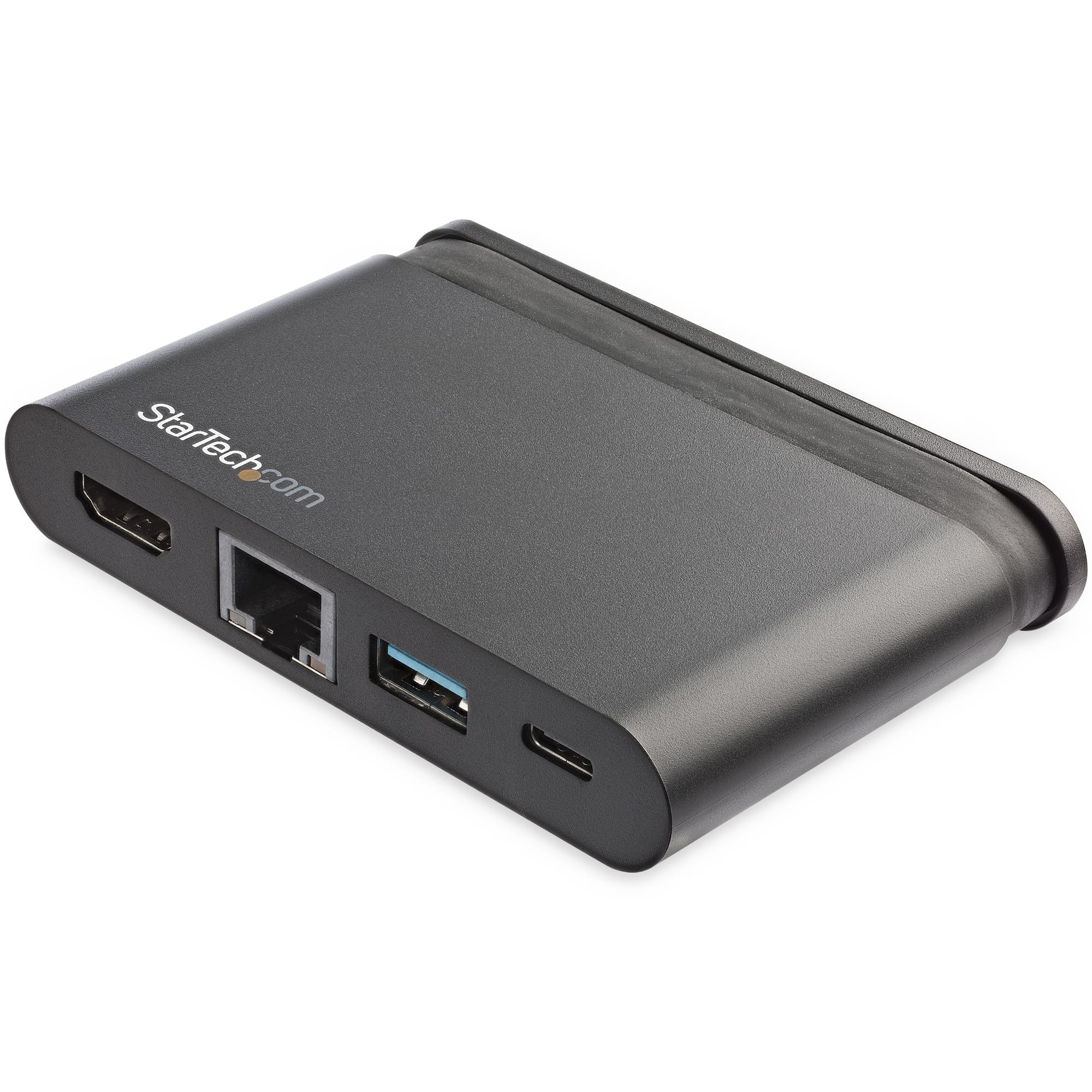

StarTech 100W USB-C HDMI 2x USB Multiport Adapter

Here's an all-in-one USB-C adapter for your MacBook Pro, Dell XPS or other USB-C™ laptop, with all the ports you need for maximum productivity. The USB-C multiport adapter with HDMI turns your laptop into a portable workstation, adding 4K video, Gigabit Ethernet, and two USB 3.0 ports, plus laptop charging with Power Delivery 3.0. Connect a UHD 4K HDMI Monitor Use the USB-C adapter as a portable docking station, connecting your laptop to a 4K HDMI monitor (4096 x 2160p) to create a workstation or make presentations. It also connects to an ultrawide monitor. Connect Your Devices The USB-C adapter gives you one USB-C port to connect a USB-C device, and one USB-A port to attach a mouse, keyboard or other peripheral. Fast-charge your mobile device using the USB-A port.Laptop Charging with PD 3.0With support for 100W Power Delivery 3.0, the USB Type-C multiport adapter provides up to 92W laptop charging, and powers your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you unplug to switch power sources (USB-C power adapter to bus power). Wrap-Around Cable The USB Type-C™ multiport adapter has a built-in wrap-around cable for easy connection and portability. Reliable Network Connectivity The Gigabit Ethernet port ensures reliable wired network access. DKT30CHCPD is backed by a StarTech.com 3-year warranty and free lifetime technical support. Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery and DP Alt Mode.

Connector(s)
Connector Type(s)	HDMI (19 pin) Female
	RJ-45 Female
	USB 3.0 A (Fast-Charge, 9 pin) Female
	USB Type-C (24 pin) USB 3.0 (5Gbps) Female
	USB Type-C (24 pin) USB 3.0 (5Gbps) Male
Environmental
Humidity	10~90% RH (Non-condensing)
Operating Temperature	0 Specifications Ports & interfaces Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. Wired Host interface Interface that enables a host controller to communicate with a driver. USB 3.2 Gen 1 (3.1 Gen 1) Type-C USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1 USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. 1 HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. 1 Microphone in The socket where a microphone is connected to the device. USB connector type The type of USB connector/port that this product has. USB Type-A,USB Type-C Network Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. 1 Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. 10,100,1000 Mbit/s Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. IEEE 802.3,IEEE 802.3ab,IEEE 802.3u Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. Performance Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. 5 Gbit/s Maximum digital resolution 4096 x 2160 pixels Product colour The colour e.g. red, blue, green, black, white. Black UASP support Housing material What the casing of the product is made of. Plastic RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. Certification CE, FCC, REACH Power Power source type What the power source is. USB Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. 100 W Software Windows operating systems supported Windows vesions wich can be used with the device. Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 Mac compatibility Product can be used with Apple Mac software and/or hardware. Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.9 Mavericks Other operating systems supported Chrome Weight & dimensions Width The measurement or extent of something from side to side. 60 mm Depth The distance from the front to the back of something. 90 mm Height The measurement of the product from head to foot or from base to top. 14 mm Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 58 g Packaging data Package width The distance from one side of the packaging to the other. 144 mm Package depth The distance from the front to the back of the packaging. 173 mm Package height The distance from the top to the bottom of the packaging. 30 mm Package weight Weight of the packaged product. 132 g Packaging content Manual Operational conditions Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 45 °C Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -10 - 70 °C Operating relative humidity (H-H) 10 - 90% Logistics data Quantity per master (outer) case 60 pc(s) Master (outer) case width 33 cm Master (outer) case length 53 cm Master (outer) case height 31 cm Other features Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. VIA/VLI - VL102, VIA/VLI - VL817, Parade Technologies - PS176, RealTek - RTL8153 USB data transfer rates 5000 Mbit/s More Information SKU 350301 MPN DKT30CHCPD Brand Startech Product Condition Brand New/Unused Adapter Type USB Adapter, HDMI Adapter Stock Availability Available for Shipping Warranty Period 3 Years Warranty Warranty Contact https://www.startech.com/ Related Products Reviews
