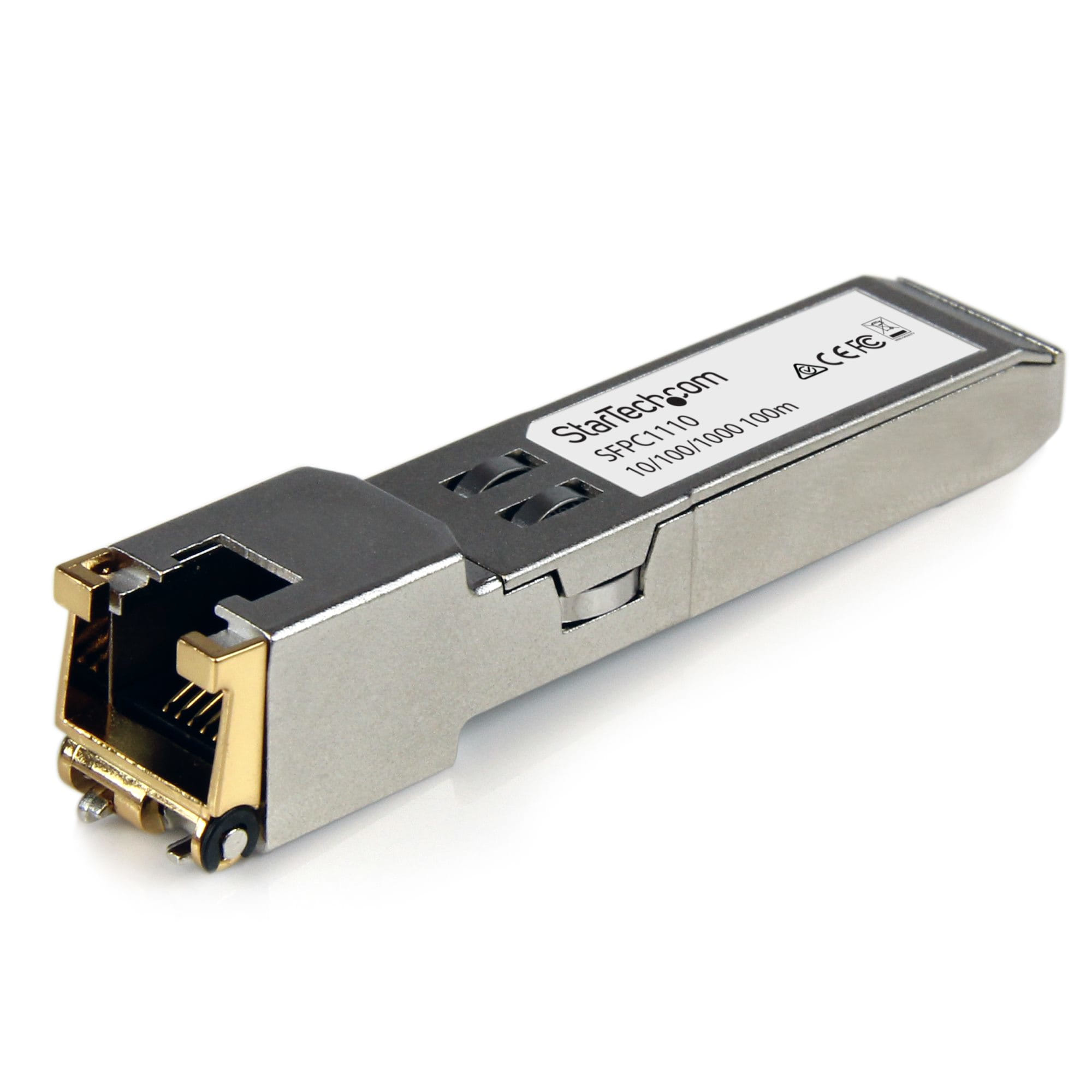

The SFPC1110 Cisco Compatible Gigabit RJ45 Copper SFP Transceiver Module (Mini-GBIC) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a copper Ethernet port on your 1000 Base-T networking equipment.
Featuring 1000 Mbps Auto-negotiation at distances up to 100m (330 feet), this Ethernet SFP module can be installed into any fiber networking devices with an MSA or Cisco compliant SFP port. Delivering convenience and scalability, this copper transceiver is fully hot-pluggable, allowing you to install the module without interrupting network traffic or requiring a device reboot.
This SFP module is compatible with the Cisco SFP-GE-T transceiver.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Connector(s) | |
Local Unit Connectors | RJ-45 Female |
Environmental | |
Humidity | 30~70% RH |
Operating Temperature | 0?C to 70?C (32?F to 158?F) |
Storage Temperature | -40?C to 85?C (-40?F to 85?F) |
Hardware | |
Industry Standards | IEEE 802.3ab 1000BASE-T |
Packaging Information | |
Shipping (Package) Weight | 0.1 kg [0.1 lb] |
Performance | |
Auto MDIX | Yes |
Compatible Networks | 1000 Mbps (1 Gbps) |
Max Transfer Distance | 100 m (328 ft) |
Maximum Data Transfer Rate | 1.25 Gbps |
Physical Characteristics | |
Product Height | 13 mm [0.5 in] |
Product Length | 70 mm [2.8 in] |
Product Weight | 21 g [0.7 oz] |
Product Width | 13 mm [0.5 in] |
What's in the Box | |
Included in Package | 10/100/1000 Mbps RJ45 SFP |
Performance | |
SFP transceiver type | Copper |
Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1250 Mbit/s |
Interface type | SFP |
Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP |
Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 100 m |
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3ab |
Cabling technology Type of cable technology performance. | 1000BASE-T |
Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
![]() |
Auto-negotiation |
![]() |
Digital Diagnostics Monitoring (DDM) |
![]() |
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
Features | |
Product colour The colour e.g. red, blue, green, black, white. | Silver |
Hot-swap |
![]() |
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 4655371 h |
RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
![]() |
Certification | CE, FCC, UL, REACH |
Power | |
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.3 W |
Operational conditions | |
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
Operating relative humidity (H-H) | 30 - 70% |
Weight & dimensions | |
Width The measurement or extent of something from side to side. | 13 mm |
Depth The distance from the front to the back of something. | 70 mm |
Height The measurement of the product from head to foot or from base to top. | 13 mm |
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 46 g |
Packaging data | |
Number of products included The number of products that are included in the package. | 1 pc(s) |
Package width The distance from one side of the packaging to the other. | 92 mm |
Package depth The distance from the front to the back of the packaging. | 116 mm |
Package height The distance from the top to the bottom of the packaging. | 33 mm |
Package weight Weight of the packaged product. | 55 g |
Other features | |
Package length | 4.65 |
SKU | 210420 |
MPN | SFPC1110 |
Brand | Startech |
Product Condition | Brand New/Unused |
Stock Availability | Available for Shipping |
