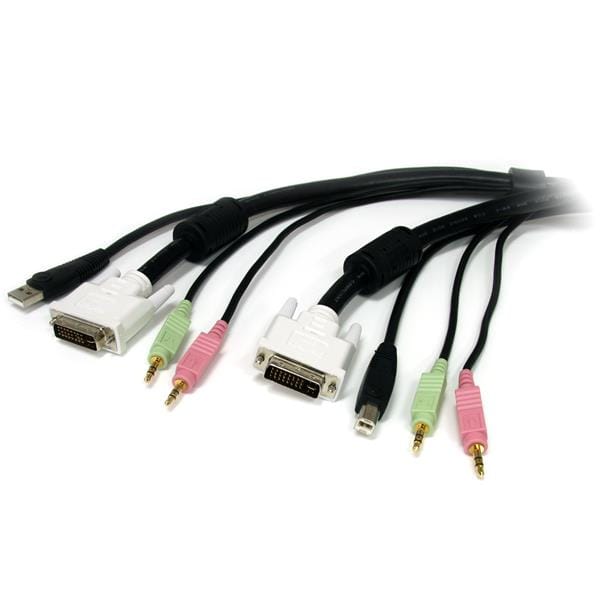

The USBDVI4N1A10 10 ft 4-in-1 USB DVI KVM Cable with Audio and Microphone integrates DVI video quality with USB mouse, keyboard, 3.5mm audio out and microphone connections into a single, compact cable.
The 4-in-1 KVM cable is a cost-effective and convenient solution that's suitable for use with DVI supported USB KVM switches, allowing you to share a USB peripheral set between two computers configured for high definition output.
Backed by a StarTech.com Lifetime Warranty.
Works with:
Compatible StarTech.com KVMs can be found under the Accessories section.
Aten models (CS1642, CS1644, CS1784, CS1782, CS1762, CS1764)
Avocent models (2SVDVI10-001, 4SVDVI10-001, SV4UAD, SC420, SC440, SC540)
Belkin models (F1DN102D, F1DN104D, F1DD102L, F1DD104L)
Cables to go models (52047, 52048)
| Connector(s) | |
| Connector A | 3.5 mm Mini-Jack (3 Position) Male |
| DVI-I (29 pin) Male | |
| USB Type-A (4 pin) USB 2.0 Male | |
| Connector B | 3.5 mm Mini-Jack (3 Position) Male |
| DVI-I (29 pin) Male | |
| USB B (4 pin) Male | |
| Packaging Information | |
| Shipping (Package) Weight | 0.9 kg [1.9 lb] |
| Physical Characteristics | |
| Cable Length | 3 m [10 ft] |
| Color | Black |
| Product Length | 3 m [10 ft] |
| What's in the Box | |
| Included in Package | 10 ft 4-in-1 KVM Cable |
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cable length How long the cable is. | 3 m |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | DVI-I |
| Console port | USB |
| Connector 1 This is the first connector in the device. | DVI-I + USB A + 2x3.5mm |
| Connector 2 This is the second connector in the device. | DVI-I + USB B + 2x3.5mm |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| Packaging data | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 900 g |
| Package length | 5.51 |
| Package width The distance from one side of the packaging to the other. | 36 mm |
| Package depth The distance from the front to the back of the packaging. | 140 mm |
| Package height The distance from the top to the bottom of the packaging. | 375 mm |
| Package weight Weight of the packaged product. | 759 g |
| Other features | |
| Connector(s) | 2 x DVI-I (M), 2 x Phono 3.5 mm (M), 1 x USB A (F), 1 x USB B (F) |
| SKU | 247429 |
| MPN | USBDVI4N1A10 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
