30Km Max Cable Length, Half/Full Duplex, 200Mbps

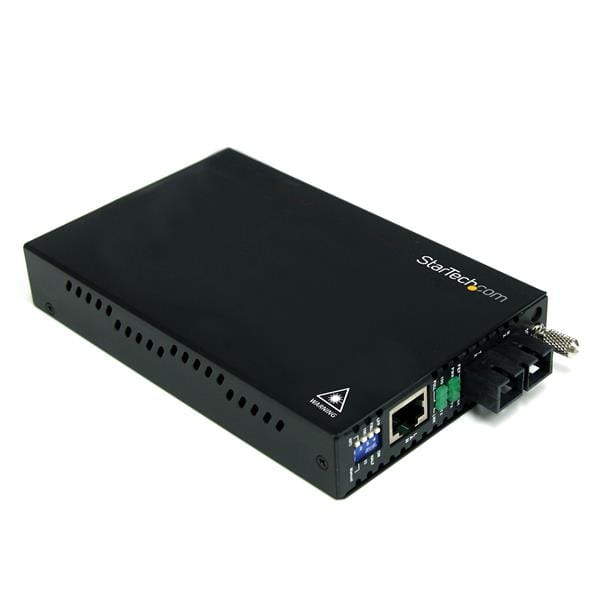

The ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Local Unit Connectors | Fiber Optic SC Duplex Female |
| RJ-45 Female | |
| Environmental | |
| Humidity | 10~90% RH |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Storage Temperature | -10?C to 70?C (14?F to 158?F) |
| Hardware | |
| PoE | No |
| WDM | No |
| Packaging Information | |
| Shipping (Package) Weight | 0.8 kg [1.7 lb] |
| Performance | |
| Auto MDIX | Yes |
| Fiber Operating Mode | Half/Full-Duplex |
| Fiber Type | Single Mode |
| Max Transfer Distance | 30 km (18.6 mi) |
| Maximum Data Transfer Rate | 200 Mbps (Full Duplex Mode) |
| Wavelength | 1310nm |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 24 mm [0.9 in] |
| Product Length | 155 mm [6.1 in] |
| Product Weight | 398 g [14 oz] |
| Product Width | 87 mm [3.4 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.36A |
| Input Voltage | 115V-230V AC |
| Output Current | 1.6 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 19.2 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | Fiber Media Converter |
| Grounding Screw | |
| Instruction Manual | |
| Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand | |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 200 Mbit/s |
| Converter input interface A convertor changes one form of signal into another e.g. A/D Converter changes a signal from analog to digital. A convertor input interface is the place where a convertor connects to the product in order to input the converted signal. | 10Base-T |
| Converter output interface | 100Base-FX |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
 |
| Duplex system A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously. | Full,Half |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 1 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SC |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Performance | |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 30000 m |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 1310 nm |
| Fiber mode structure | Single-mode |
| Design | |
| Internal The product is built in. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC |
| Power | |
| Output voltage | 12 V |
| Output current | 1 A |
| External power adapter |
|
| Management features | |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 600 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging data | |
| Package length | 7.99 |
| Package width The distance from one side of the packaging to the other. | 206 mm |
| Package depth The distance from the front to the back of the packaging. | 137 mm |
| Package height The distance from the top to the bottom of the packaging. | 89 mm |
| Package weight Weight of the packaged product. | 766 g |
| Packaging content | |
| Manual |
|
| Other features | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 95 x 160 x 20 mm |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| SKU | 219408 |
| MPN | ET90110SM302 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
