Cable distance up to 2km, 10/100Mbps, Multi Mode

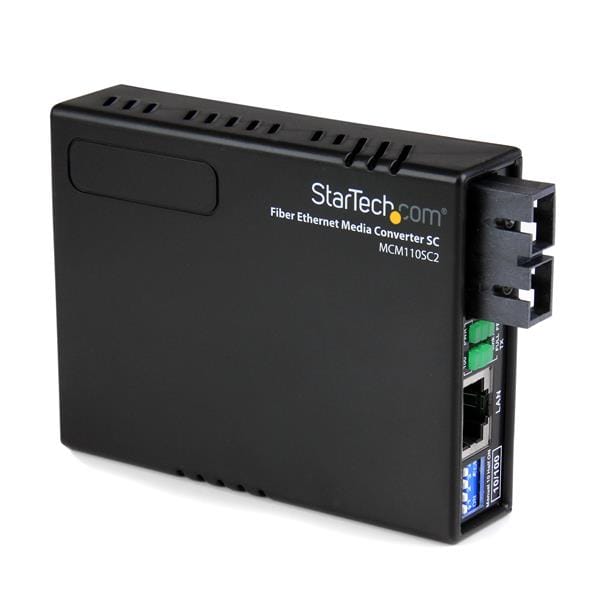

The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.
This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Local Unit Connectors | RJ-45 Female |
| Remote Unit Connectors | Fiber Optic SC Duplex Female |
| Environmental | |
| Humidity | 10~90% RH |
| Operating Temperature | 0?C to 50?C (32?F to 122?F) |
| Storage Temperature | -10?C to 70?C (14?F to 158?F) |
| Hardware | |
| Industry Standards | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-FX | |
| IEEE 802.3u 100BASE-TX | |
| PoE | No |
| WDM | No |
| Indicators | |
| LED Indicators | Ethernet Link & Activity (ON - Ethernet Link OK, Blinking - Activity on Ethernet Link) |
| FEF [Far End Fault](On - Fault Detected, Off - No Fault | |
| Fiber Link & Activity (On - Fiber Link OK, Blinking - Activity on Fiber Link) | |
| Full ( Full duplex / Half duplex) | |
| Power | |
| Speed (Off - 10Mbps, On - 100 Mbps) | |
| Packaging Information | |
| Shipping (Package) Weight | 0.4 kg [0.9 lb] |
| Performance | |
| Fiber Operating Mode | Half/Full-Duplex |
| Fiber Type | Multi Mode |
| Max Transfer Distance | 2 km (1.2 mi) |
| Maximum Data Transfer Rate | 10/100Mbps |
| MTBF | 65,000 Hours |
| Wavelength | 1310nm |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 20 mm [0.8 in] |
| Product Length | 95 mm [3.7 in] |
| Product Weight | 90.5 g [3.2 oz] |
| Product Width | 75 mm [3 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Voltage | 115V AC |
| Output Current | 0.2A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 2.4 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | Media Converter |
| Power Adapter | |
| User's Manual | |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 100 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q,IEEE 802.3,IEEE 802.3u |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Jumbo frames support |
 |
| Jumbo frames | 9000 |
| Flow control support |
|
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Auto-negotiation |
|
| Duplex system A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously. | Full,Half |
| Cabling technology Type of cable technology performance. | 10Base-T, 100Base-FX, 100Base-TX |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 1 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SC |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Performance | |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 2000 m |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 1310 nm |
| Wavelength-division multiplexing (WDM) |
 |
| Fiber mode structure | Multi-mode |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 65000 h |
| Design | |
| Internal The product is built in. |
|
| LED indicators |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Compliance industry standards List of characteristics that describe methods of compliance to industry-defined standards for the product | IEEE 802.3, IEEE 802.3u |
| Certification | CE, FCC |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 115 V |
| Output voltage | 12 V |
| Output current | 0.2 A |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power plug type | Type M |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 75 mm |
| Depth The distance from the front to the back of something. | 95 mm |
| Height The measurement of the product from head to foot or from base to top. | 20 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 90.5 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 63 mm |
| Package depth The distance from the front to the back of the packaging. | 148 mm |
| Package height The distance from the top to the bottom of the packaging. | 145 mm |
| Package weight Weight of the packaged product. | 400 g |
| Packaging content | |
| AC adapter included |
|
| Manual |
|
| Other features | |
| Connector(s) | SC |
| Power requirements | 115 VAC, 12 VDC |
| SKU | 210455 |
| MPN | MCM110SC2 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
