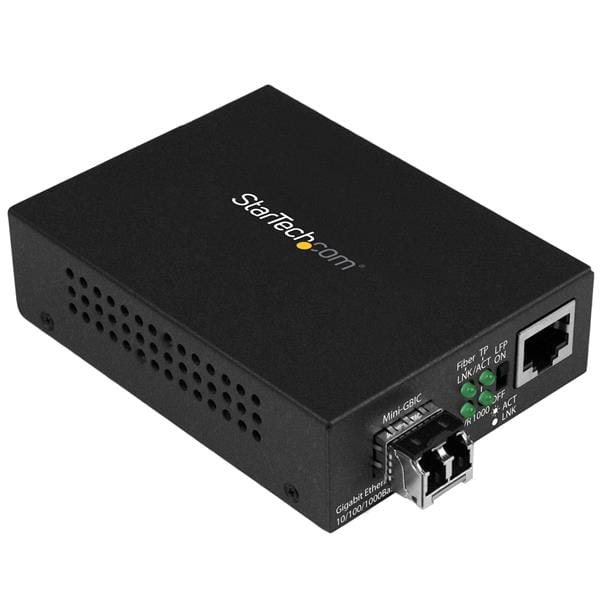

This fiber media converter offers an easy, cost-effective way to extend your network over Gigabit fiber. It is equipped with a multimode transceiver which converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful extended networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.
Cost-effective extension and dependable performance
The Gigabit Fiber Media Converter provides a cost-effective and dependable solution for shorter range network extensions. It connects an Ethernet network to remote devices over a fiber backbone, with a 550m range on the fiber optic interface. The media converter has a durable metal housing, engineered to deliver long-lasting performance.
Versatile connections for broad compatibility
Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.
The multimode transceiver is removable, giving you the flexibility to change your transceiver in the future to meet your networking needs.
Easy installation and compact convenience
The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option to save space.
The MCM1110MMLC is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Local Unit Connectors | Fiber Optic LC Duplex Female |
| RJ-45 Female | |
| Environmental | |
| Humidity | 5~95% RH (Non-condensing) |
| Operating Temperature | 0?C to 50?C (32?F to 122?F) |
| Storage Temperature | -10?C to 70?C (14?F to 158?F) |
| Hardware | |
| Industry Standards | IEEE 802.3 10BASE-T |
| IEEE 802.3ab 1000BASE-T | |
| IEEE 802.3u 100BASE-TX | |
| IEEE 802.3z 1000BASE-LX | |
| IEEE 802.3z 1000BASE-SX | |
| PoE | No |
| WDM | No |
| Indicators | |
| LED Indicators | 1000 Mbps |
| Copper Port Link/Act | |
| Fiber Port Link/Act | |
| Power | |
| Packaging Information | |
| Shipping (Package) Weight | 510 g [18 oz] |
| Performance | |
| Auto MDIX | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Fiber Operating Mode | Full-Duplex |
| Fiber Type | Multi Mode |
| Max Transfer Distance | 550 m (1804 ft) |
| Maximum Data Transfer Rate | 1 Gbps |
| MTBF | > 50,000 hours at 25?C |
| Wavelength | 850nm |
| Physical Characteristics | |
| Color | Brown |
| Enclosure Type | Steel |
| Product Height | 26 mm [1 in] |
| Product Length | 205 mm [8.1 in] |
| Product Weight | 200 g [7.1 oz] |
| Product Width | 70 mm [2.8 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 1 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 2 A |
| Output Voltage | 5 DC |
| Plug Type | N |
| Power Consumption (In Watts) | 5 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | Gigabit Ethernet fiber media converter - MM LC |
| universal power adapter (NA/JP, EU, UK, ANZ) | |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1000 Mbit/s |
| Converter input interface A convertor changes one form of signal into another e.g. A/D Converter changes a signal from analog to digital. A convertor input interface is the place where a convertor connects to the product in order to input the converted signal. | 1000Base-T,100Base-TX,10Base-T |
| Converter output interface | 1000Base-LX,1000Base-SX |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3z |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 1000 Mbit/s |
| Jumbo frames support |
 |
| Auto MDI/MDI-X A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link. |
|
| Duplex system A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously. | Full |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 1 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | LC |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Performance | |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 550 m |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 850 nm |
| Wavelength-division multiplexing (WDM) |
 |
| Fiber mode structure | Multi-mode |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 50000 h |
| Design | |
| Internal The product is built in. |
|
| LED indicators | Activity,Link,Power |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Steel |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, REACH, TAA |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 5 V |
| Output current | 2 A |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| External power adapter |
|
| Power plug type | Type N |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 70 mm |
| Depth The distance from the front to the back of something. | 94 mm |
| Height The measurement of the product from head to foot or from base to top. | 26 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 201 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 140 mm |
| Package depth The distance from the front to the back of the packaging. | 284 mm |
| Package height The distance from the top to the bottom of the packaging. | 68 mm |
| Package weight Weight of the packaged product. | 556 g |
| Packaging content | |
| Manual |
|
| SKU | 242718 |
| MPN | MCM1110MMLC |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
