Max Baud Rate:115.2 Kbps, 16 byte FIFO buffer

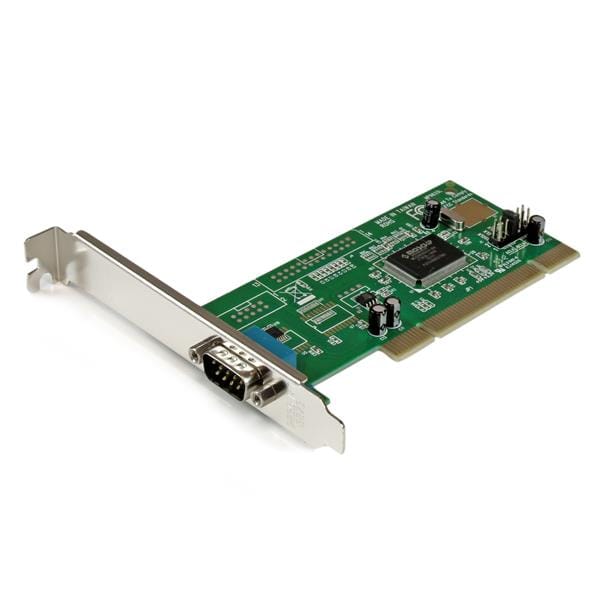

The PCI1S550 16550 Serial PCI Card can be installed in a PCI slot to add one RS232 serial port - a cost-effective solution for connecting any new serial device or old legacy serial device, with data transfer rates of up to 115.2 Kbps.
Perfect for connecting serial modems, POS devices, PDAs, digital cameras, printers, ISDN terminal adapters and more, to your system, the 1 serial port PCI card supports IRQ sharing and operates flawlessly in Windows®, DOS® and Linux® platforms.
A convenient easy to install solution, the PCI serial card can be connected in minutes through simple plug and play installation and is backed by a StarTech.com lifetime warranty and free lifetime technical support.
| Connector(s) | |
| Connector Type(s) | PCI (5V, 32-bit) Male |
| External Ports | DB-9 (9 pin, D-Sub) Male |
| Environmental | |
| Humidity | 5~85% RH |
| Operating Temperature | -10?C to 80?C (14?F to 176?F) |
| Storage Temperature | -20?C to 100?C (-4?F to 212?F) |
| Hardware | |
| Bus Type | PCI (5 Volt) |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | ASIX/MosChip - MCS9820CV |
| Industry Standards | PCI 2.1 |
| Interface | Serial |
| Port Style | Integrated on Card |
| Ports | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.2 lb] |
| Performance | |
| Max Baud Rate | 115.2 Kbps |
| MTBF | 6,548,788 Hours |
| Serial Protocol | RS-232 |
| Physical Characteristics | |
| Product Height | 120 mm [4.7 in] |
| Product Length | 120 mm [4.7 in] |
| Product Weight | 60 g [2.1 oz] |
| Product Width | 20 mm [0.8 in] |
| Software | |
| OS Compatibility | Windows? DOS, 95, 98SE, 2000, Embedded System 2009, XP Embedded, POS Ready 2009, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012 Linux 3.5.x to 4.4.x LTS Versions only |
| What's in the Box | |
| Included in Package | 1 Port PCI Serial Card |
| Driver CD | |
| Instruction Manual | |
| Low Profile PCI Bracket | |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI |
| Output interface The socket (port) where the output connectors are connected. | Serial |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| Serial interface type | RS-232 |
| Design | |
| Internal The product is built in. |
 |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, RoSH |
| Features | |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | NetMos NM9820CV |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 80 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 100 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 95,Windows 98SE,Windows ME,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 20 mm |
| Depth The distance from the front to the back of something. | 120 mm |
| Height The measurement of the product from head to foot or from base to top. | 120 mm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 174 mm |
| Package depth The distance from the front to the back of the packaging. | 143 mm |
| Package height The distance from the top to the bottom of the packaging. | 32 mm |
| Package weight Weight of the packaged product. | 130 g |
| Other features | |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 0.920 Mbit/s |
| I/O ports An interface on a device to which you can connect another device. | 1 - DB9 M |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Mac compatibility Product can be used with Apple Mac software and/or hardware. |
|
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | DOS, Windows 95/ 98SE/ 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Linux, & Mac OS 10.4.x & Windows XP Embedded/ POS Ready 2009/ Embedded System 2009 OS |
| Package length | 5.94 |
| SKU | 210756 |
| MPN | PCI1S550 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | Limited Lifetime Warranty |
