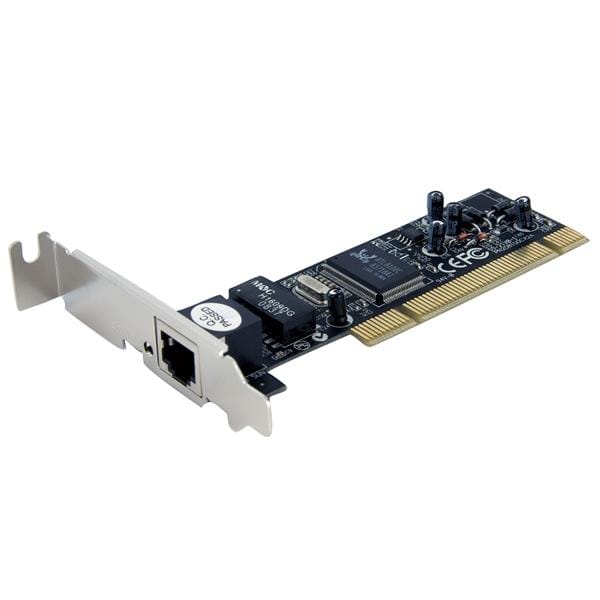

This 1 Port PCI Fast Ethernet Network Adapter Card offers a reliable, cost-effective Ethernet network connection that's ideal for small form factor computers.
Delivering a simple connection to 10/100Mbps (Fast) Ethernet networks, the NIC features auto-negotiation that senses speed and duplex capabilities of connected devices and full duplex support for data transfer rates up to 200Mbps.
A versatile network interface solution, the NIC features a low profile mounting bracket that's suitable for small form factor computers, and is supported by all popular operating systems including Windows, Linux, Mac OS and Novell platforms. Backed by StarTech.com's Lifetime Warranty.
| Connector(s) | |
| Connector Type(s) | PCI / PCI-X (Universal 3.3 & 5V, 32-bit) Male |
| External Ports | RJ-45 Female |
| Environmental | |
| Humidity | 10~90% RH Non-condensing |
| Operating Temperature | 0?C to 55?C (32?F to 131?F) |
| Hardware | |
| Bus Type | PCI / PCI-X (5 / 3.3V) |
| Card Type | Low Profile (SP bracket incl.) |
| Chipset ID | Realtek - RTL8100C |
| Industry Standards | IEEE 802.3/802.3u |
| Interface | RJ45 (10/100 Ethernet) |
| Ports | 1 |
| Indicators | |
| LED Indicators | 10/100Mbps selection |
| Network link/activity | |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.3 lb] |
| Performance | |
| Compatible Networks | 10/100 Mbps |
| Full Duplex Support | Yes |
| Maximum Data Transfer Rate | 200 Mbits/Sec |
| Physical Characteristics | |
| Product Height | 80 mm [3.1 in] |
| Product Length | 120 mm [4.7 in] |
| Product Weight | 56 g [2 oz] |
| Product Width | 20 mm [0.8 in] |
| Software | |
| OS Compatibility | Windows? NT, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2008 R2, 2012, 2016 Mac OS? 10.0.4, 9.1 / 9.0 Unix, Linux 2.6 to 4.4.x LTS Versions Only NetWare 3.x/4.x |
| Special Notes / Requirements | |
| Note | IRQ Line and I/O Address Assigned by system |
| What's in the Box | |
| Included in Package | Driver CD |
| Full Profile bracket | |
| Instruction Manual | |
| Low Profile 10/100 Mbps Ethernet PCI Card | |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Ethernet |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 200 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3,IEEE 802.3u |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Design | |
| Recommended usage What the product should be used for, and how it should be used (e.g. ambient temperature). | PC |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Internal The product is built in. |
|
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Realtek - RTL8100C |
| LED indicators | Activity,LAN,Link |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, REACH |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.5 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| System requirements | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows, Linux, Mac OS & Novell |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 98SE,Windows NT,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS 9.0,Mac OS 9.1,Mac OS X 10.0 Cheetah |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 20 mm |
| Depth The distance from the front to the back of something. | 120 mm |
| Height The measurement of the product from head to foot or from base to top. | 80 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 42 g |
| Packaging data | |
| Drivers included |
|
| Package width The distance from one side of the packaging to the other. | 142 mm |
| Package depth The distance from the front to the back of the packaging. | 171 mm |
| Package height The distance from the top to the bottom of the packaging. | 30 mm |
| Package weight Weight of the packaged product. | 132 g |
| Other features | |
| Compliance industry standards List of characteristics that describe methods of compliance to industry-defined standards for the product | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Manual |
|
| I/O ports An interface on a device to which you can connect another device. | 1 - RJ45 |
| Supported data transfer rates Rates at which data can be transferred. May vary according to network configurations. | 10/100Mbps |
| Package length | 9.02 |
| SKU | 245532 |
| MPN | ST100SLP |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
