- Baud Rate: 921.6KBPS, Surge Protection,

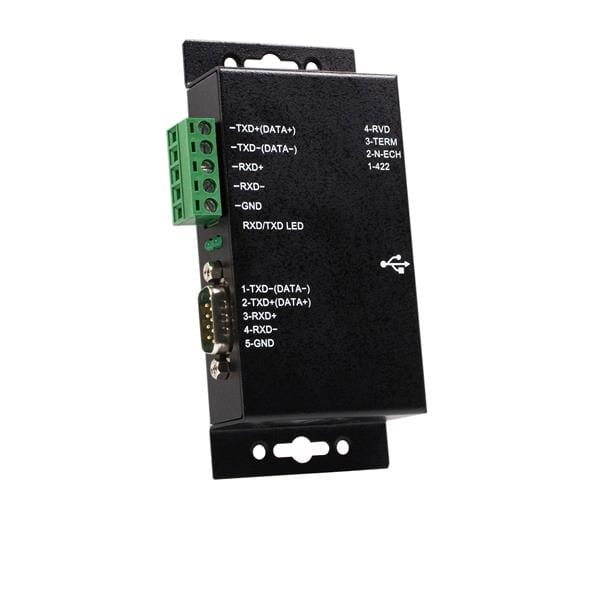

The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block.
The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices.
The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector Type(s) | USB B (4 pin) Female |
| External Ports | DB-9 (9 pin, D-Sub) Male |
| Terminal Block (5 Wire) | |
| Environmental | |
| Humidity | 5~95% RH |
| Operating Temperature | 0?C to 55?C (32?F to 131?F) |
| Storage Temperature | -20?C to 85?C (-4?F to 185?F) |
| Hardware | |
| Bus Type | USB 2.0 |
| Chipset ID | FTDI - FT232RL |
| Interface | Serial |
| Port Style | External Hub |
| Ports | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 0.4 kg [0.9 lb] |
| Performance | |
| Data Bits | 7, 8 |
| FIFO | 256 Bytes |
| Isolation | 2500 Vrms |
| Max Baud Rate | 921.6 Kbps |
| Parity | Even, Odd, Mark, Space, None |
| Serial Protocol | RS-422/485 |
| Stop Bits | 1, 2 |
| Surge Protection | 500W |
| Physical Characteristics | |
| Cable Length | 1.8 m [6 ft] |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 23 mm [0.9 in] |
| Product Length | 118 mm [4.6 in] |
| Product Weight | 180 g [6.4 oz] |
| Product Width | 64 mm [2.5 in] |
| Power | |
| Input Current | 200mA |
| Input Voltage | 5 DC |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | Windows? CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.6 to 10.12 Linux 2.4.x to 4.4.x LTS Versions only |
| What's in the Box | |
| Included in Package | 6ft USB A to B Cable |
| Driver CD | |
| USB to RS422/485 Converter | |
| User Manual | |
| Ports & interfaces | |
| Connector 1 This is the first connector in the device. | USB B |
| Connector 2 This is the second connector in the device. | RS-422/485 |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Female |
| Cable length How long the cable is. | 1.8 m |
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 0.00088 Gbit/s |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows 8((32/64bit), (32/64), Vista (32/64), XP (32/64), 2000, 98SE, XP Embedded, CE (4.2+), Windows Server 2012, 2008 R2, 2003 (32/64), Mac OS 10.x, Linux 2.4.x / 2.6.x |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 5 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 85 °C |
| Relative humidity | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 64 mm |
| Depth The distance from the front to the back of something. | 118 mm |
| Height The measurement of the product from head to foot or from base to top. | 23 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 180 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 45 mm |
| Package depth The distance from the front to the back of the packaging. | 230 mm |
| Package height The distance from the top to the bottom of the packaging. | 160 mm |
| Package weight Weight of the packaged product. | 390 g |
| Package length | 9.06 |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Cables included | USB |
| SKU | 210770 |
| MPN | ICUSB422IS |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
