up to 920kbps data transfer

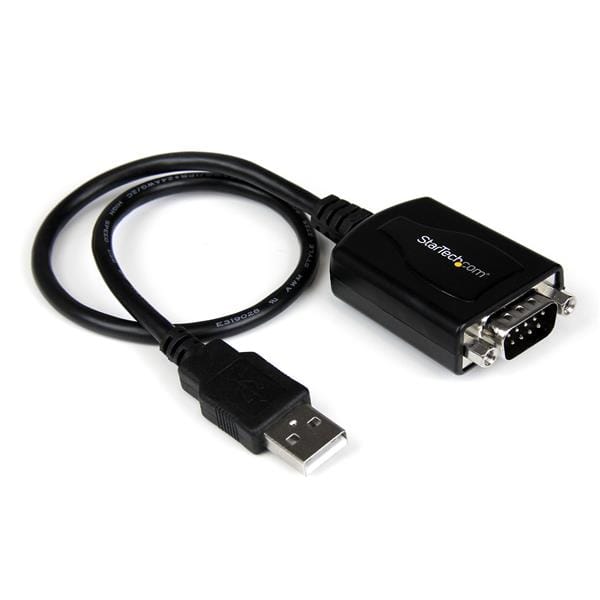

The ICUSB232PRO 1 ft USB to RS232 Serial DB9 Adapter Cable with COM Retention offers a professional grade solution for connecting legacy or industrial RS232 serial devices to a laptop or desktop computer through USB - eliminating the expense of upgrading serial peripherals for compatibility.
A time-saving and convenient USB/Serial solution, the adapter retains assigned serial COM port values in nonvolatile memory, allowing the same values to automatically be assigned to the adapter serial port if disconnected and reconnected, or disconnected from one USB port and installed in another.
A versatile connectivity solution that bridges legacy serial peripheral devices with newer USB-capable computers, the USB to Serial adapter offers broad operating system compatibility including Windows®, Linux and Mac OS, for easy integration into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector Type(s) | DB-9 (9 pin, D-Sub) Male |
| USB Type-A (4 pin) USB 2.0 Male | |
| Environmental | |
| Humidity | 5~85% RH |
| Operating Temperature | -10?C to 80?C (14?F to 176?F) |
| Storage Temperature | -20?C to 100?C (-4?F to 212?F) |
| Hardware | |
| Bus Type | USB 2.0 |
| Chipset ID | Prolific - PL-2303 |
| Interface | Serial |
| Port Style | Cable Adapters |
| Ports | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.3 lb] |
| Performance | |
| Max Baud Rate | 921.6 Kbps |
| Serial Protocol | RS-232 |
| Physical Characteristics | |
| Cable Length | 0.3 m [1 ft] |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 15 mm [0.6 in] |
| Product Length | 400 mm [15.7 in] |
| Product Weight | 70 g [2.5 oz] |
| Product Width | 34 mm [1.3 in] |
| Software | |
| OS Compatibility | Windows? PocketPC 2003 / 2000, Windows Mobile 5/6, CE 4.2/5.2, Embedded System 2009, XP Embedded, POS Ready 2009, 98SE, 2000, ME, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2016 Mac OS X? 10.6 to 10.12 Linux 2.4.x to 4.4.x LTS Versions only |
| Special Notes / Requirements | |
| System and Cable Requirements | PC with an available USB 1.1 (or above) port |
| What's in the Box | |
| Included in Package | Driver CD |
| Instruction Manual | |
| USB to Serial Adapter | |
| Ports & interfaces | |
| Connector 1 This is the first connector in the device. | USB 2.0 A |
| Connector 2 This is the second connector in the device. | DB-9 |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| Cable length How long the cable is. | 0.3 m |
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Prolific - PL-2303 Interface Serial |
| Baud rate | 921.6 Kbit/s |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Certification | CE, FCC |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | - Windows PocketPC 2003 / 2000, Windows Mobile 5/6, CE 4.2/5.2, Embedded System 2009, XP Embedded, POS Ready 2009, 98SE, 2000, ME, XP, Vista, 7, 8, 8.1, 10 - Windows Server 2003, 2008 R2, 2012, 2016, 2019 - Mac OS X 10.6 to 10.14 - Linux 2.4.x to 4.19.x LTS |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 80 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 100 °C |
| Relative humidity | 5 - 85% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 34 mm |
| Depth The distance from the front to the back of something. | 400 mm |
| Height The measurement of the product from head to foot or from base to top. | 15 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 70 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 145 mm |
| Package depth The distance from the front to the back of the packaging. | 175 mm |
| Package height The distance from the top to the bottom of the packaging. | 30 mm |
| Package weight Weight of the packaged product. | 97 g |
| Package length | 8.27 |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Manual |
|
| Drivers included |
|
| SKU | 219051 |
| MPN | ICUSB232PRO |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
