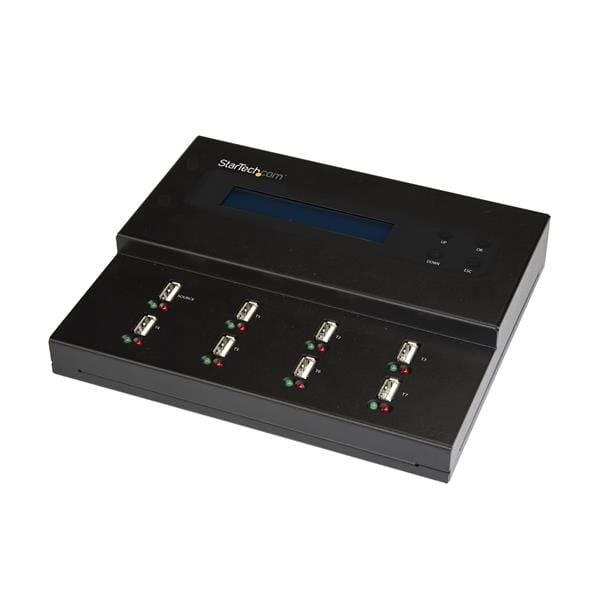

This USB duplicator and eraser lets you clone or erase up to seven USB flash drives, without a host computer connection. This means you can work more efficiently and manage larger batches of USB drives, saving time and effort.
The standalone USB duplicator and eraser is perfect for IT professionals and system administrators in corporate, education, marketing, or sales environments.
Efficient 1:7 drive duplication
The duplicator lets you copy up to seven drives simultaneously, and offers both synchronous and asynchronous duplication, with speeds up to 1.5GB per minute. The asynchronous feature means you can remove and replace USB storage devices while other copies continue to run. The eraser/duplicator offers two modes of duplication: system and file and whole file.
Erase multiple USB drives simultaneously
The drive duplicator/eraser lets you erase up to seven flash drives at the same time, so it’s easy to clean large batches of USB drives for reuse. The flash drive duplicator features three modes of erasing: quick erase, single pass erase, and multi-pass erase (meets DoD standards).
Designed for ease of use
The flash drive duplicator and eraser supports USB 3.0, USB 2.0 and USB 1.1 flash drives, providing an easy and cost-effective way to re-use and re-purpose your USB drives. It features a robust metal housing and a compact, standalone design that makes it the perfect desktop companion. The duplicator/eraser also has an LCD display that makes it easy to monitor erasing and duplication to ensure completion.
The USBDUPE17 is TAA compliant and backed by a StarTech.com 2-year warranty and free lifetime technical support.
Packaging Information | |
Shipping (Package) Weight | 3 kg [6.5 lb] |
Performance | |
Duplication Modes | Sector by Sector (Whole Drive) |
System and File | |
Erase Modes | 1-Pass Overwrite |
3-Pass Overwrite | |
Quick Erase | |
Insertion Rating | 1500 times |
Max Drive Capacity | Maximum drive size of 2TB |
Maximum Data Transfer Rate | 1.5 GB per minute |
MTBF | 8760 hours |
Physical Characteristics | |
Color | Black |
Enclosure Type | Steel |
Product Height | 34.6 mm [1.4 in] |
Product Length | 190 mm [7.5 in] |
Product Weight | 1.1 kg [2.3 lb] |
Product Width | 160 mm [6.3 in] |
Power | |
Input Current | 1.6A Max |
Input Voltage | 100 ~ 240 AC |
Output Current | 9A |
Output Voltage | 12 DC |
Plug Type | 4-pin DIN |
Power Consumption (In Watts) | 108W |
Power Source | AC Adapter Included |
Software | |
OS Compatibility | OS independent; No software or drivers required |
Special Notes / Requirements | |
System and Cable Requirements | For duplication, the destination drives must be of equal or greater capacity than the source drive. |
Supports copying/cloning to SD/ SDHC/ Micro SD/ MMC/ Mini SD/ CF media through a USB multimedia card reader (sold separately) and to Hard Drives or Solid State Drives through a Hard Drive docking station or USB enclosure (sold separately) | |
What's in the Box | |
Included in Package | duplicator and eraser |
instruction manual | |
universal power adapter (NA/JP, UK, EU, ANZ) | |
Indicators | |
LED Indicators | Red (Error) |
Green (Activity/Successful Copy) | |
Hardware | |
Number of Drives | 7 |
Drive Installation | Removable |
Compatible Drive Types | USB Flash Drive |
Chipset ID | Xilinx - Spartan (XC3S700A) |
Bus Type | USB 2.0 |
Buffer Size | 128 MB |
Environmental | |
Storage Temperature | -20°C ~85°C (-4°F ~ 185°F) |
Operating Temperature | 5°C ~ 45°C (41°F ~ 113°F) |
Humidity | 20% ~ 80% |
Connector(s) | |
Drive Connectors | USB Type-A (4 pin) USB 2.0 Female |
Technical details | |
Product type The sub-category of the product. | USB flash drive duplicator |
Number of simultaneous copies The amount of copies that can be made at the same time. | 7 copies |
Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | USB 2.0 |
Duplicator operating modes | Copy,Erase |
USB connector type The type of USB connector/port that this product has. | USB Type-A |
Product colour The colour e.g. red, blue, green, black, white. | Black |
Housing material What the casing of the product is made of. | Steel |
Maximum supported storage capacity The maximum capacity of data storage on the device. | 2 TB |
Transfer rate | 1.5 GB/min |
Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
![]() |
Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Xilinx Spartan - XC3S700A |
Packet buffer memory | 128 MB |
LED indicators | Activity,Fault |
Power | |
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 108 W |
AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
Input current | 1.6 A |
Output voltage | 12 V |
Output current | 9 A |
Included power plug types | ANZ,EU,JP,NA,UK |
Operational conditions | |
Operating relative humidity (H-H) | 20 - 80% |
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 45 °C |
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 85 °C |
Weight & dimensions | |
Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 160 x 190 x 34.6 mm |
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1 kg |
Packaging data | |
Package weight Weight of the packaged product. | 2.95 kg |
Package height The distance from the top to the bottom of the packaging. | 85 mm |
Package width The distance from one side of the packaging to the other. | 235 mm |
AC adapter included |
![]() |
Manual |
![]() |
Certificates | |
RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
![]() |
Certification | CE, FCC |
Display | |
Display The description of display that can includes display type, resolution, size etc. | LCD |
SKU | 263802 |
MPN | USBDUPE17 |
Brand | Startech |
Product Condition | Brand New/Unused |
Stock Availability | Available for Shipping |
Warranty Period | 2 Years Warranty |
Warranty Contact | https://www.startech.com/ |
