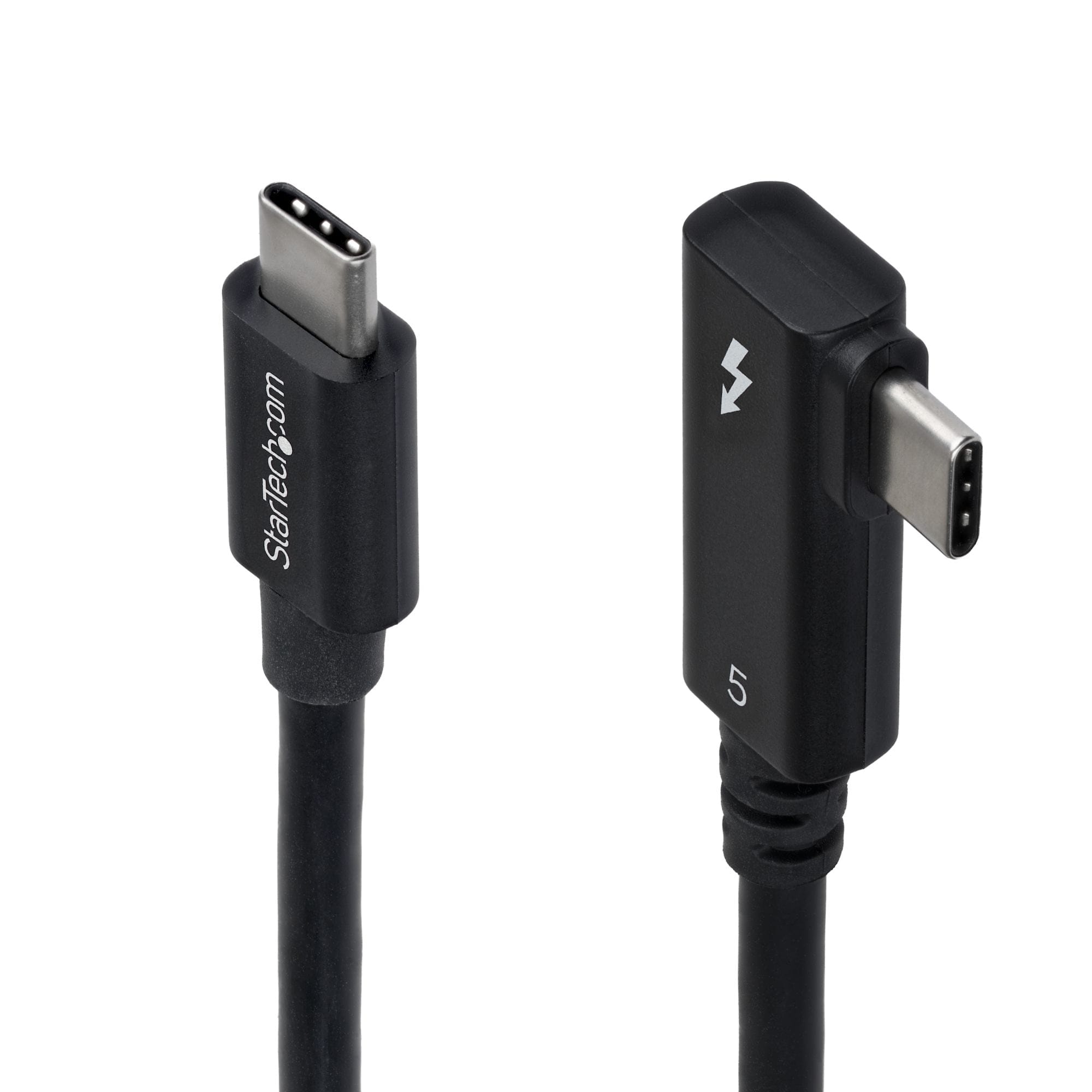

StarTech.com 2.6ft (80cm) Right Angle Thunderbolt 5 Cable, 80Gbps/Up to 120Gbps, 240W PD, 8K 60Hz, Certified Thunderbolt Cable, Compatible w/Thunderbolt 4/USB4/USB-C, Male, Male, 0.8 m, 80 Gbit/s, Black, Nickel
Facilitate ultra high-performance connectivity between Thunderbolt 5-enabled devices
Experience reliable, ultra-high performance between Thunderbolt 5-enabled devices, supporting up to twice the bandwidth of Thunderbolt 4, 8K 60Hz video, and 240W charging over a single connection. This Thunderbolt 5 cable is ideal for high-performance laptops such as 16in MacBook Pro with M4 Pro/Max.
Enhanced Bandwidth with Boost Mode
Transfer high-speed data and drive dual UHD displays with 80 Gbps bidirectional bandwidth. When higher bandwidth is required, Thunderbolt 5 Boost Mode reallocates the data lanes, enabling 120 Gbps (transmit) and 40 Gbps (receive). This asymmetric configuration is ideal for display-intensive tasks, such as driving multiple 8K monitors or handling high-resolution video workflows while still supporting robust data transfer capabilities.
Seamless Compatibility
Connect this Intel Thunderbolt-certified cable for guaranteed Thunderbolt 5 performance and backward compatibility. Certified cables ensure seamless operation across multiple resolutions, refresh rates, and resource-intensive applications.
Durable Right-Angle Design
The Right Angle Thunderbolt 5 cable features a flexible TPE outer jacket that is tested to withstand 2,000 bending cycles. Position the right angle connector along the device to reduce cable clutter and avoid prolonged strain from bending. The durable Nickel-plated connectors are rated to operate beyond 10,000 insertions.
Supported Thunderbolt 5 Features
This Certified Thunderbolt 5 Cable supports full Thunderbolt 5 performance:
Experience reliable, ultra-high performance between Thunderbolt 5-enabled devices, supporting up to twice the bandwidth of Thunderbolt 4, 8K 60Hz video, and 240W charging over a single connection. This Thunderbolt 5 cable is ideal for high-performance laptops such as 16in MacBook Pro with M4 Pro/Max.
Enhanced Bandwidth with Boost Mode
Transfer high-speed data and drive dual UHD displays with 80 Gbps bidirectional bandwidth. When higher bandwidth is required, Thunderbolt 5 Boost Mode reallocates the data lanes, enabling 120 Gbps (transmit) and 40 Gbps (receive). This asymmetric configuration is ideal for display-intensive tasks, such as driving multiple 8K monitors or handling high-resolution video workflows while still supporting robust data transfer capabilities.
Seamless Compatibility
Connect this Intel Thunderbolt-certified cable for guaranteed Thunderbolt 5 performance and backward compatibility. Certified cables ensure seamless operation across multiple resolutions, refresh rates, and resource-intensive applications.
Durable Right-Angle Design
The Right Angle Thunderbolt 5 cable features a flexible TPE outer jacket that is tested to withstand 2,000 bending cycles. Position the right angle connector along the device to reduce cable clutter and avoid prolonged strain from bending. The durable Nickel-plated connectors are rated to operate beyond 10,000 insertions.
Supported Thunderbolt 5 Features
This Certified Thunderbolt 5 Cable supports full Thunderbolt 5 performance:
| Features | |
| Connector 1 This is the first connector in the device. | Male |
| Connector 2 This is the second connector in the device. | Male |
| Cable length How long the cable is. | 0.8 m |
| Data transfer rate (max) | 80 Gbit/s |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Nickel |
| Cable shape | Round |
| Thunderbolt version | 5 |
| USB Power Delivery (USB PD) |
 |
| USB Power Delivery up to | 240 W |
| AWG wire size | 30/34 |
| USB Type-C DisplayPort Alternate Mode |
|
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 7680 x 4320 pixels |
| Jacket material | Thermoplastic elastomer (TPE) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 10 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 50 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Certificates | |
| Compliance certificates Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies. | RoHS, CE, Federal Communications Commission (FCC) |
| Weight & dimensions | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 4.7 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 36 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 125 mm |
| Package depth The distance from the front to the back of the packaging. | 110 mm |
| Package height The distance from the top to the bottom of the packaging. | 15 mm |
| Package weight Weight of the packaged product. | 36 g |
| Logistics data | |
| Products per master (outer) case | 120 pc(s) |
| Master (outer) case length | 300 mm |
| Master (outer) case width | 380 mm |
| Master (outer) case height | 295 mm |
| SKU | 840483 |
| MPN | TBLT5MM80CM240WRA |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.startech.com/ |
