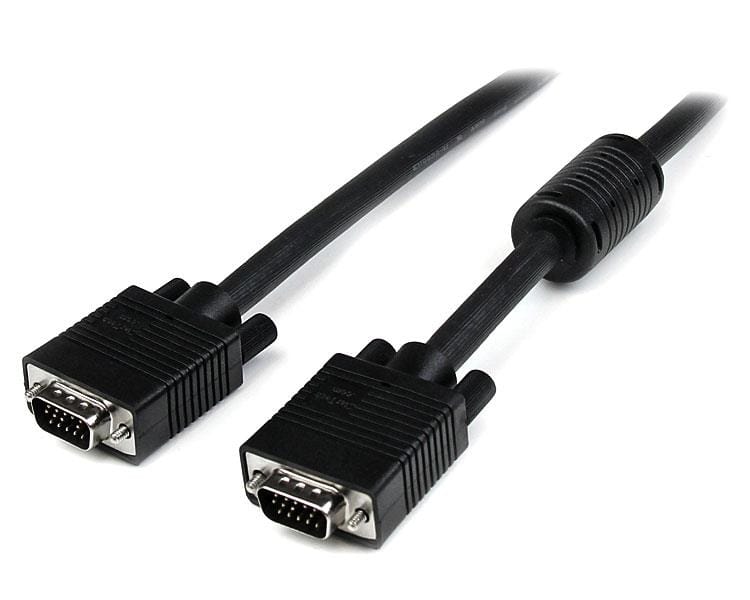

The MXTMMHQ50CM 0.5m High Resolution VGA Cable (50cm) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
| Connector(s) | |
| Connector A | VGA (15 pin, High Density D-Sub) Male |
| Connector B | VGA (15 pin, High Density D-Sub) Male |
| Environmental | |
| Humidity | 0 - 80 %RH |
| Operating Temperature | 0 to 60 ?C |
| Storage Temperature | -20 to 80 ?C |
| Hardware | |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Cable Shield Type | Aluminum-Mylar Foil with Braid |
| Connector Plating | Nickel |
| Fire Rating | CMG Rated (General Purpose) |
| Number of Ferrites | 1 |
| Regulatory Approvals | UL2919 |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 99 g [3.5 oz] |
| Performance | |
| Impedance | 75 Ohm |
| Physical Characteristics | |
| Cable Length | 0.5 m [1.6 ft] |
| Cable OD | 9 mm [0.4 in] |
| Color | Black |
| Max Connector Dimension | 34 mm [1.3 in] |
| Product Length | 0.5 m [1.6 ft] |
| Product Weight | 0.1 kg [0.2 lb] |
| Wire Gauge | 28 AWG |
| What's in the Box | |
| Included in Package | 0.5 m Coax High Resolution Monitor VGA Cable - HD15 M/M |
| Nuts | |
| Features | |
| Cable length How long the cable is. | 0.5 m |
| Connector 1 This is the first connector in the device. | VGA (D-Sub) |
| Connector 2 This is the second connector in the device. | VGA (D-Sub) |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Nickel |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Other features | |
| Package length | 8.66 |
| Weight & dimensions | |
| Package width The distance from one side of the packaging to the other. | 200 mm |
| Package depth The distance from the front to the back of the packaging. | 220 mm |
| Package height The distance from the top to the bottom of the packaging. | 16 mm |
| Package weight Weight of the packaged product. | 99 g |
| SKU | 243502 |
| MPN | MXTMMHQ50CM |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
