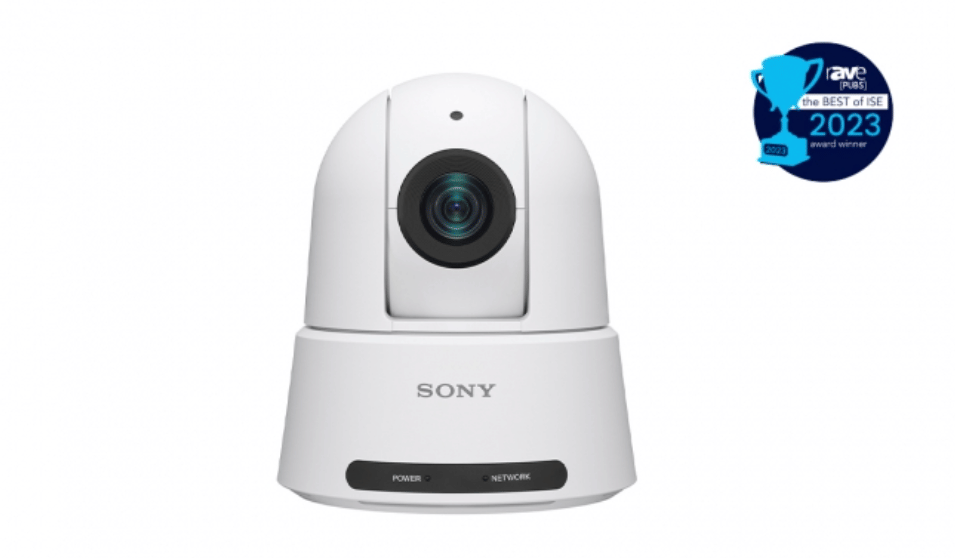

Sony 4K PTZ Camera 12X Optical With PTZ Auto - White
Payment options
- Unavailable for shipping
- This product is not currently available for purchase
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
SRG-A40/ SRG-A12 with PTZ Auto Framing
Revolutionary PTZ Auto Framing technology powered by built-in AI analytics ensures high quality composed shots without operator.
Shooting redefined. AI makes you free.
A Camera that Automatically and Naturally Shoots Video for you
With the advanced PTZ Auto Framing feature the camera automatically track the target in a comfortable viewing with smooth Pan-Tilt-Zoom movement regardless of posture movement and what one is wearing.
Since the camera does most of the work automatically the operator can spend its time efficiently.
PTZ Auto Framing with built-in AI analytics
This camera harnesses powerful AI-powered video analytics that can automatically detect and track the position of a presenter within the camera frame. As the presenter moves the camera’s pan/tilt/zoom mechanism ensures that the presenter is always framed naturally without the need for a human camera operator to manually follow their movements.
Automatically and reliably shoots video for you
With Sony’s newly developed AI analytics algorithm it detects the subject’s skeleton and head position and matches the subject’s detail features even when there are several people in the frame. It achieves accurate framing and consistent tracking.
Choice from three shooting modes
The camera has a choice of three shooting modes; Full body Waist and Close up. In each mode you can adjust picture composition size up & down and left & right and the SRG-A40 and SRG-A12 can automatically track and keep the subject in the selected optimal position.
Integrated tally lamp
The SRG-A40 and SRG-A12 feature a built-in tally lamp just like you’d find on professional studio cameras. The lamp illuminates to give presenters visual confirmation of shooting status or to show that PTZ Auto Framing mode is active. The lamp colour will change from Red On Air to Green PTZ Auto Framing ON.
Remote control of PTZ operation
Pan/Tilt/Zoom camera movements and other functions can all be precisely controlled using the supplied IR remote controller for convenient wireless control of PTZ functions without needing additional equipment. It can also be controlled using the optional additional RM-IP500 remote controller just like professional broadcast cameras.
Convenient control from PC
Camera functions can also be controlled remotely from a networked PC using our intuitive Web App.
| Camera | |
| Camera type There are a number of common types of digital cameras: compact cameras, bridge cameras, mirrorless interchangeable-lens cameras (MILC) and single lens reflex (SLR) cameras. Bridge cameras 'bridge the gap' between the low-end compact and high-end professional (SLR) cameras. Also MILCs populate this mid-segment by combining the larger sensors and interchangeable lenses of DSLRs with the live-preview viewing system of compact cameras. | Single camera |
| Megapixel (approx.) The number (in millions) of light-sensitive picture elements known as pixels actually used by the camera's image sensor (CCD) to record light, and which are reflected to the final number of recorded pixels stored on the memory card. | 8.5 MP |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.5 mm (1 / 2.5") |
| Zoom capability The amount that the camera lens can zoom. |
 |
| Optical zoom Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera. | 12x |
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 4.4 - 52.8 mm |
| Horizontal field of view (wide) | 70° |
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 1.6 lx |
| Flip & mirror |
|
| Aperture range (F-F) Aperture range of the device's optics, expressed in f-stops. | 2 - 3.7 |
| White balance Technique in photography and image processing, which involves a global adjustment of the intensities of the colors (typically red, green, and blue primary colors). An important goal of this adjustment is to render specific colors – particularly neutral colors including white – correctly. | Indoor, One push, Outdoor, Auto, Manual, Daylight |
| Auto exposure |
|
| Light exposure modes The different lengths of time for the exposure for a camera e.g. longer exposure for low light. | Manual, Auto, Shutter priority AE |
| Focus adjustment | Auto/Manual |
| Gain control type | Auto/Manual |
| PTZ control |
|
| PTZ protocols | VISCA |
| Minimum working distance (wide) | 8 cm |
| Maximum working distance (tele) | 40 cm |
| Slowest camera shutter speed The maximum time which the camera shutter is open when taking a photo. | 1 s |
| Fastest camera shutter speed The minimum time which the camera shutter is open when taking a photo. | 1/10000 s |
| Video | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 3840 x 2160 pixels |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 60 fps |
| Video formats supported The type of video formats that can be used by this device. | H.264, H.265 |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 3840 x 2160, 1920 x 1080 (HD 1080), 640 x 360, 1280 x 720 (HD 720) |
| Number of TV lines | 1700 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Image stabilizer This camera function compensates for slight shaking movements caused by an unstable position and ensures smooth footage even in suboptimal conditions. |
|
| Tilt angle range | -20 - 90° |
| Pan range | -170 - 170° |
| Tally light |
|
| Tilt speed (min) | 0.5 °/sec |
| Tilt speed (max) | 126 °/sec |
| Pan speed (min) | 0.5 °/sec |
| Pan speed (max) | 300 °/sec |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| 3G-SDI output |
|
| Microphone in The socket where a microphone is connected to the device. |
|
| VISCA output ports | 1 |
| VISCA input ports | 1 |
| Power | |
| Power source type What the power source is. | AC, DC |
| DC input voltage | 19.5 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 80 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Packaging content | |
| Power supply included There is a power supply with this product. |
|
| Cables included | AC, HDMI |
| Warranty card |
|
| Screws included |
|
| Mounting brackets included |
|
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 11 Enterprise x64, Windows 10, Windows 11 Home, Windows 10 Education, Windows 11 Pro, Windows 10 Education x64, Windows 11 x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Performance | |
| Auto framing |
|
| Audio | |
| Audio channels | 2 |
| Audio codecs | AAC LC 256kbps/ST (IP), AAC LC 128kbps/ST(IP) |
| Network | |
| Multi-stream capability | 3 |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Bit rate range | 512 - 50000 Kbit/s |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6, TCP, UDP, ARP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, VISCA over IP, SRT |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 156.7 mm |
| Depth The distance from the front to the back of something. | 200 mm |
| Height The measurement of the product from head to foot or from base to top. | 184 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2 kg |
| SKU | 803084 |
| MPN | SRG-A12W |
| Brand | Sony |
| Product Condition | Brand New/Unused |
| Product Use | General |
