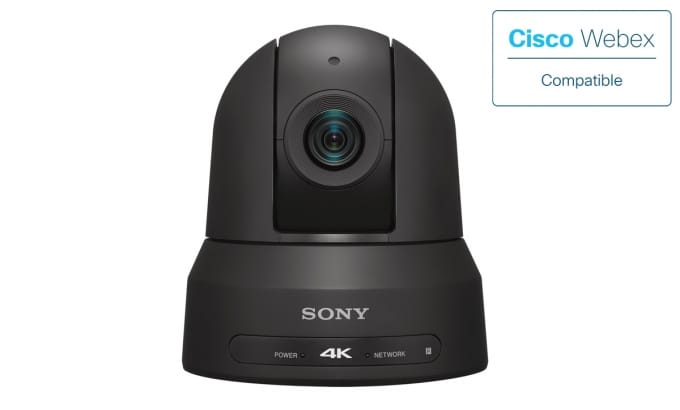

Sony 4K 8.5MP 20X Optical Zoom PTZ Camera
Payment options
- Unavailable for shipping
- This product is not currently available for purchase
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Capture every point of view in 4K with excellent picture quality and efficient IP production workflow
The versatile BRC-X400 PTZ camera is ideal for use in a wide range of environments - from broadcast studios and remote on-air suites to sports stadiums arenas houses of worship and lecture halls.
The cameras 1/2.5-type Exmor R™ sensor captures broadcast quality 4K images with excellent sensitivity very low noise and rich natural colour reproduction. Its complemented by the integrated high-resolution lens that offers a powerful zoom capability of up to 80x in Full HD 30x in 4K with an expansive approx. 70° wide angle coverage to capture every point of view.
Efficient IP-based live production is augmented with support for NDI®HX via optional license allowing flexible configuration with other networked NDI-enabled devices.
Images also can be reviewing remotely via a web browser with support for RTSP Real Time Streaming Protocol RTMP Real Time Messaging Protocol and SRT Secure Reliable Transport ensuring smooth stable streaming of video plus audio from an optional microphone available separately over an IP network.
Installation and set-up is easy with a new Picture Setting File allowing the same settings to be applied to multiple cameras through a web interface from a laptop or PC. Convenient integration in multi-camera live events is also simplified with genlock support and an on-air tally lamp.
NDI® is a registered trademark of NewTek Inc.
With Clear Image Zoom and Tele Convert Mode
Requires firmware V3.00
Requires firmware V2.00
| Performance | |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor & outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| PTZ control |
 |
| Day/night mode |
|
| Design | |
| Form factor The shape or design of the product. | Dome |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Camera | |
| Tilt angle range | -20 - 90° |
| Tilt speed | 126 °/sec |
| Pan range | -170 - 170° |
| Pan speed | 300 °/sec |
| White balance Technique in photography and image processing, which involves a global adjustment of the intensities of the colors (typically red, green, and blue primary colors). An important goal of this adjustment is to render specific colors – particularly neutral colors including white – correctly. | One push |
| Image sensor | |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.5 mm (1 / 2.5") |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Zoom capability The amount that the camera lens can zoom. |
|
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 4.4 - 88 mm |
| Auto focus Device focusing a camera or other piece of equipment automatically. |
|
| Focus | Manual |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Number of illumination LEDs | 1.6 |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Video formats supported The type of video formats that can be used by this device. | H.264, H.265 |
| Gain control type | Auto/Manual |
| Image stabilizer This camera function compensates for slight shaking movements caused by an unstable position and ensures smooth footage even in suboptimal conditions. |
|
| Audio | |
| Audio input channels A channel is an electric circuit which acts as a path for a signal. Audio input channels allow audio signals to be communicated to the device. | 2.0 channels |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | AAC |
| Bit rate range | 512 - 50000 Kbit/s |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, UPnP, VISCA over IP |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Streaming method | Multicast |
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
|
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| Power | |
| Power source type What the power source is. | DC |
| Power consumption (max) The maximum amount of power used by the device. | 25.5 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 158.4 mm |
| Depth The distance from the front to the back of something. | 200.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 177.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.8 kg |
| SKU | 767522 |
| MPN | BRC-X400 |
| Brand | Sony |
| Product Condition | Brand New/Unused |
| Product Use | General |
