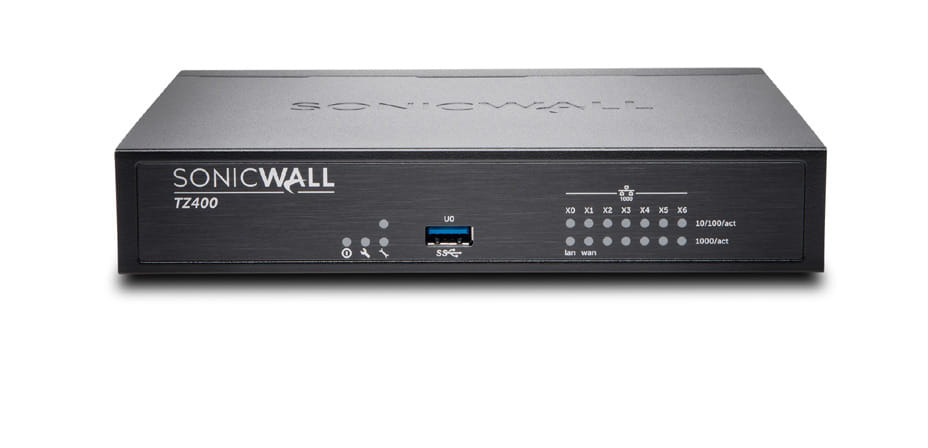

SonicWall TZ400, 1300 Mbit/s, 900 Mbit/s, 900 Gbit/s, 300 Mbit/s, 100 Mbit/s, 47.1 BTU/h
Get high-speed threat prevention in a flexible, integrated security solution with the SonicWall TZ Series. Designed for small networks and distributed enterprises with remote and branch locations, the TZ Series offers five different models that can be tuned to meet your specific needs. Advanced networking and management features such as Secure SD-WAN and Zero-Touch Deployment make it easy to bring up new sites as you need. Add optional capabilities including PoE/PoE+ support and 802.11ac WiFi to create a unified security solution that protects your network and data from the latest threats over wired and wireless connections.
INTEGRATED THREAT PREVENTION AND SD-WAN PLATFORM
Consolidate essential security and networking capabilities in a single, integrated solution
Protect against known and unknown attacks with cloud-based and on-box threat prevention
Decrypt and inspect TLS/SSL and SSH encrypted traffic in real time
Gain enhanced flexibility by adding optional integrated 802.11ac wireless or PoE/PoE+
Easily deploy and configure with Zero-Touch Deployment
Centrally manage using cloud-based Capture Security Center
ADVANCED THREAT PREVENTION
- Block more attacks with Real-Time Deep Memory Inspection (RTDMI) & Reassembly-Free Deep Packet Inspection (RFDPI)
- Prevent advanced threats with cloud-based and on-box threat prevention
- Decrypt and inspect TLS/SSL-encrypted traffic in real time
- Inspect for threats on all ports and protocols without file size limitations
HIGH-SPEED PERFORMANCE
- Leverage multi-core parallel-processing hardware architecture
- Achieve fast performance using Gigabit Ethernet interfaces
- Take advantage of single-pass stream-based inspection
- Inspect simultaneous network streams using deep packet inspection
- Add integrated 802.11ac wireless
NETWORK CONTROL AND FLEXIBILITY
- Access a wide range of networking features in SonicWall's powerful SonicOS operating system
- Grow your distributed network while lowering costs with Secure SD-WAN
- Power your PoE-enabled devices with integrated PoE/PoE+ support
- Gain insight into and control over application usage across the network
- Segment your network with VLANs
SECURE, EASY-TO-USE MOBILE CONNECTIVITY
- Access resources behind the firewall remotely and securely using native SSL VPN
- Connect from virtually any operating system - Apple iOS, Google Android, Windows 8.1, Mac OS X, Kindle Fire and Linux
- Scan for and remove hidden threats over the VPN connection
SONICWALL CAPTURE CLOUD PLATFORM
- Take advantage of threat intelligence consolidated from more than one million SonicWall sensors
- Stay protected in real time with automatically delivered signatures developed by SonicWall Capture Labs researchers
- Continually access the Capture Cloud Platform for millions of malware signatures
- Utilize single pane of glass management, licensing, reporting and analytics through the Capture Cloud Platform
INTEGRATED THREAT PREVENTION AND SD-WAN PLATFORM
Consolidate essential security and networking capabilities in a single, integrated solution
Protect against known and unknown attacks with cloud-based and on-box threat prevention
Decrypt and inspect TLS/SSL and SSH encrypted traffic in real time
Gain enhanced flexibility by adding optional integrated 802.11ac wireless or PoE/PoE+
Easily deploy and configure with Zero-Touch Deployment
Centrally manage using cloud-based Capture Security Center
ADVANCED THREAT PREVENTION
- Block more attacks with Real-Time Deep Memory Inspection (RTDMI) & Reassembly-Free Deep Packet Inspection (RFDPI)
- Prevent advanced threats with cloud-based and on-box threat prevention
- Decrypt and inspect TLS/SSL-encrypted traffic in real time
- Inspect for threats on all ports and protocols without file size limitations
HIGH-SPEED PERFORMANCE
- Leverage multi-core parallel-processing hardware architecture
- Achieve fast performance using Gigabit Ethernet interfaces
- Take advantage of single-pass stream-based inspection
- Inspect simultaneous network streams using deep packet inspection
- Add integrated 802.11ac wireless
NETWORK CONTROL AND FLEXIBILITY
- Access a wide range of networking features in SonicWall's powerful SonicOS operating system
- Grow your distributed network while lowering costs with Secure SD-WAN
- Power your PoE-enabled devices with integrated PoE/PoE+ support
- Gain insight into and control over application usage across the network
- Segment your network with VLANs
SECURE, EASY-TO-USE MOBILE CONNECTIVITY
- Access resources behind the firewall remotely and securely using native SSL VPN
- Connect from virtually any operating system - Apple iOS, Google Android, Windows 8.1, Mac OS X, Kindle Fire and Linux
- Scan for and remove hidden threats over the VPN connection
SONICWALL CAPTURE CLOUD PLATFORM
- Take advantage of threat intelligence consolidated from more than one million SonicWall sensors
- Stay protected in real time with automatically delivered signatures developed by SonicWall Capture Labs researchers
- Continually access the Capture Cloud Platform for millions of malware signatures
- Utilize single pane of glass management, licensing, reporting and analytics through the Capture Cloud Platform
| Data transmission | |
| Firewall throughput The average rate of successful data delivery over through a Firewall. The throughput is usually measured in bits per second (bit/s or bps), and sometimes in data packets per second or data packets per time slot. | 1300 Mbit/s |
| VPN throughput | 900 Mbit/s |
| IPSec VPN throughput | 900 Gbit/s |
| Full DPI throughput | 300 Mbit/s |
| SSL inspection throughput | 100 Mbit/s |
| Maximum connections (DPI) | 90000 |
| Maximum connections (SPI) | 100000 |
| Mobile VPN IPSec | 25 |
| Mobile VPN SSL | 500 |
| Maximum firewall connections per second | 6000 |
| Security policies (max) | 20 |
| Performance | |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Heat dissipation The heat generated by the power supply. | 47.1 BTU/h |
| Certification | FCC Class B, FCC RF ICES Class B, IC RF CE (R&TTE, EMC, LVD, RoHS), RCM, VCCI Class B, MIC/TELEC, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH |
| Network | |
| VPN tunnels quantity | 20 |
| Number of users The number of people that use or can use this product. | 35 user(s) |
| Local user database | 150 |
| Number of VLANs | 50 |
| Multicast support |
 |
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| Quality of Service (QoS) support |
|
| Point-to-point protocol over Ethernet (PPPoE) The Point-to-Point Protocol over Ethernet (PPPoE) is a network protocol for encapsulating PPP frames inside Ethernet frames. It appeared in 1999, in the context of the boom of DSL as the solution for tunneling packets over the DSL connection to the ISP's IP network, and from there to the rest of the Internet. A 2005 networking book noted that "Most DSL providers use PPPoE, which provides authentication, encryption, and compression." Typical use of PPPoE involves leveraging the PPP facilities for authenticating the user with a username and password, predominately via the PAP protocol and less often via CHAP. |
|
| Number of LAN Access Points (max) | 16 |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 3DES,128-bit AES,192-bit AES,256-bit AES,AES,DES,HTTPS,MD5,SHA-1 |
| Firewall security Part of a computer system or network which is designed to block unauthorized access while permitting outward communication. |
|
| VPN support | FIPS 140-2 (with Suite B) Level 2, UC APL, VPNC, IPv6 (Phase 2), ICSA Network Fir ewall, ICSA Anti-virus |
| Protocols | |
| Management protocols | SNMP |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | PPPoE, L2TP, PPT, VoIP, TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, RADIUS |
| Routing protocols | OSPF,RIP |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired & Wireless |
| Gigabit Ethernet (copper) ports quantity | 7 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 8 |
| Console port | RJ-45 |
| Number of console ports | 1 |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| AC input frequency | 50/60 Hz |
| Input current | 1 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 9.2 W |
| Power consumption (max) The maximum amount of power used by the device. | 13.8 W |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 24 W |
| System requirements | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Microsoft® Windows Vista 32/64-bit, Windows 7 32/64-bit, Windows 8.0 32/64-bit, Windows 8.1 32/64-bit, Mac OS X 10.4+, Linux FC3+/Ubuntu 7+/OpenSUSE |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 134 x 35 x 19 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 730 g |
| SKU | 497258 |
| MPN | 01-SSC-1741 |
| Brand | Sonicwall |
| Product Condition | Brand New/Unused |
| Product Use | General |
