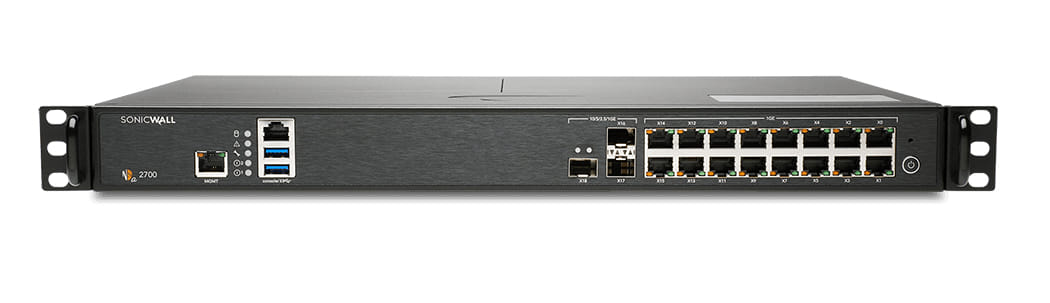

SonicWall NSA 2700 High Availability Firewall

Data transmission
Firewall throughput	5.5 Gbit/s
IPSec VPN throughput	2.1 Gbit/s
SSL inspection throughput	800 Mbit/s
Maximum connections (DPI)	500000
HTTPS encryption
VoIP

Performance
Heat dissipation The heat generated by the power supply.	73.32 BTU/h

Network
VPN tunnels quantity	250
Local user database	250
Number of VLANs	256
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
Quality of Service (QoS) support
Number of LAN Access Points (max)	32

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1

Protocols
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Routing protocols	BGP, BGP4, OSPF, RIP, RIP-1, RIP-2

Management features
LED indicators

Ports & interfaces
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	16
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	1000,10000 Mbit/s
Console port	RJ-45
Number of console ports	1
Installed SFP+ modules quantity An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device.	3
Remote management port	RJ-45 (Gigabit)

Storage
Storage media type Type of storage medium, like flash, hard disk drive, etc.	Flash
Flash memory	64000 MB
Total storage capacity The total amount of data that can be stored on the device.	256 GB

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Form factor The shape or design of the product.	1U
Built-in display A display which is part of the product, so you do not need to attach another display.

Power
AC input voltage The voltage of the AC electricity that is inputted into the product.	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (max) The maximum amount of power used by the device.	21.5 W
Peak power This is the maximum power required by the device or peak music power.	60 W

Logistics data
Harmonized System (HS) code	85176990

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions
Width The measurement or extent of something from side to side.	430 mm
Depth The distance from the front to the back of something.	325 mm
Height The measurement of the product from head to foot or from base to top.	45 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	4 kg

Other features
Firewall throughput The average rate of successful data delivery over through a Firewall. The throughput is usually measured in bits per second (bit/s or bps), and sometimes in data packets per second or data packets per time slot.	5500 Mbit/s
