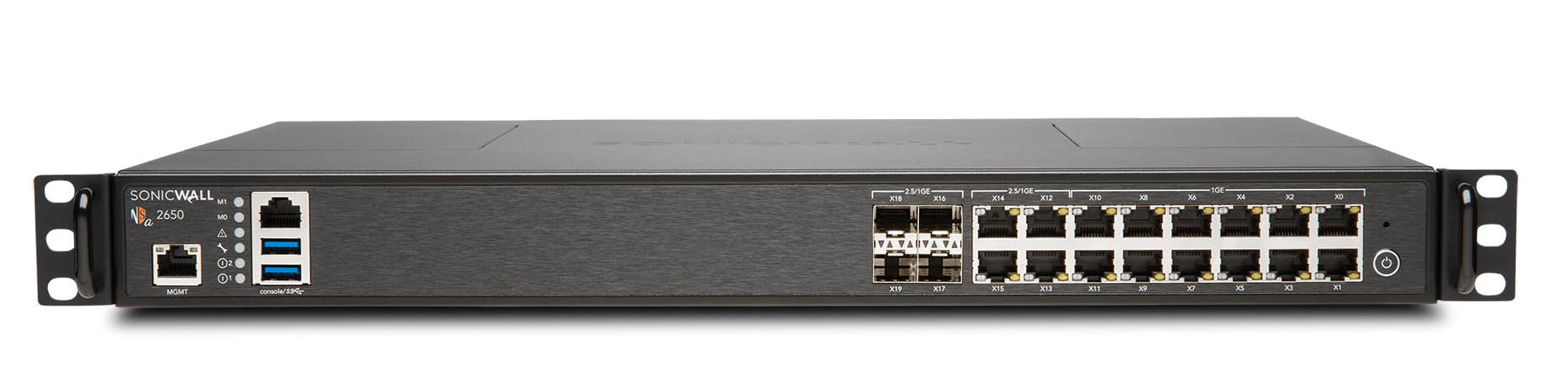

SonicWall NSa 2650 Hardware Firewall 3000 Mbit/s Desktop

Data transmission
Firewall throughput The average rate of successful data delivery over through a Firewall. The throughput is usually measured in bits per second (bit/s or bps), and sometimes in data packets per second or data packets per time slot.	3000 Mbit/s
VPN throughput	1500 Mbit/s
IPSec VPN throughput	1.4 Gbit/s
Full DPI throughput	600 Mbit/s
VPN (IMIX) throughput	700 Mbit/s
Maximum connections (DPI)	500
Maximum connections (SPI)	1
VoIP

Performance
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	4
Certification	ICSA Firewall, ICSA Anti-Virus, FIPS 140-2, Common Criteria NDPP (Firewall and IPS), UC APL, USGv6, CsFC

Network
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11n
Maximum Number of VPN connections supported	350
Mobile VPN tunnels quantity	1000
Number of VLANs	256
Multicast support
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
Port forwarding
Quality of Service (QoS) support
Number of LAN Access Points (max)	48

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	128-bit AES,192-bit AES,256-bit AES,DES,MD5,SHA-1

Protocols
Management protocols	SNMP v2/v3
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP
Routing protocols	BGP,OSPF,RIP-1,RIP-2

Management features
LED indicators	LAN, Power

Ports & interfaces
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired

Storage
Storage media type Type of storage medium, like flash, hard disk drive, etc.	Flash
Total storage capacity The total amount of data that can be stored on the device.	16 GB

Design
Form factor The shape or design of the product.	Desktop
Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).	2 fan(s)

Power
AC input voltage The voltage of the AC electricity that is inputted into the product.	100-240 V
AC input frequency	50/60 Hz
Input current	1 A
Power consumption (max) The maximum amount of power used by the device.	37.2 W
Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.	120 W

System requirements
Minimum RAM The lowest RAM (memory) required to run a computer program or operating system.	2000 MB
Compatible operating systems List of desktop operating systems tested as compatible with this product.	Windows Vista, Windows 7, Windows 8, Windows 8.1, Mac OS X 10.4+, Linux FC3+, Ubuntu 7+, OpenSUSE, Apple iOS, Android, Kindle Fire

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	32 - 105 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 158 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	430 mm
Depth The distance from the front to the back of something.	325 mm
Height The measurement of the product from head to foot or from base to top.	45 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	7.7 kg
