Socket Mobile SocketScan S700, Handheld bar code reader, 1D, LED, Codabar,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 DataBar Expanded,GS1-128..., 0 - 100000 lx, 625 nm

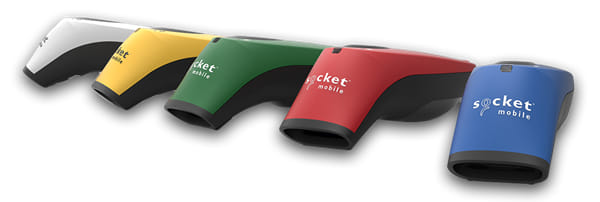

The SocketScan S700 1D barcode scanner with Bluetooth wireless technology scans on paper or screen. It has a light-weight, ergonomic structure, and a long-lasting battery to withstand entire work days. The five color options fit most styles and environment needs. The LEDs for battery, Bluetooth and scanning notifications make the scanner more intuitive to use. Compatible with all applications in previous Socket Mobile barcode scanners, without software changes.
This scanner is dressed to impress both consumers and end users in retail and office settings. Ideal for retail POS, field service, inventory management, asset tracking and more. Use our Companion App for easy set up and configuration.
Application Integration Socket Mobile s Capture SDK enables integration in your applications to improve business productivity with fast, efficient and reliable data transfer over Bluetooth wireless technology.
This scanner is dressed to impress both consumers and end users in retail and office settings. Ideal for retail POS, field service, inventory management, asset tracking and more. Use our Companion App for easy set up and configuration.
Application Integration Socket Mobile s Capture SDK enables integration in your applications to improve business productivity with fast, efficient and reliable data transfer over Bluetooth wireless technology.
| Scanning | |
| Type Characteristics of the device. | Handheld bar code reader |
| Scanner type Indicates the type of scanner this product is. | 1D |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | LED |
| Linear (1D) barcodes supported The product can read linear (1D) barcordes. | Codabar,Code 128,Code 39,Code 93,EAN-13,EAN-8,GS1 DataBar Expanded,GS1-128 (UCC/EAN-128),Interleaved 2 of 5,MSI,Plessey,Telepen,Trioptic,U.P.C. |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Not supported |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 625 nm |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | Bluetooth |
| Wireless range | 10 m |
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 2.1+EDR |
| Performance | |
| LED indicators |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Red |
| Power | |
| Power source type What the power source is. | Battery |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Nickel-Metal Hydride (NiMH) |
| Battery type Description of battery supplied with the product, such battery form factor (e.g. AA/AAA). | AA |
| Number of batteries supported The number of batteries that can be used with the product. | 2 |
| Number of reads per charge | 80000 |
| Charging time The amount of time needed to charge the product. | 6 h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 37.1 mm |
| Depth The distance from the front to the back of something. | 40.1 mm |
| Height The measurement of the product from head to foot or from base to top. | 132.2 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 118 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 499064 |
| MPN | CX3391-1849 |
