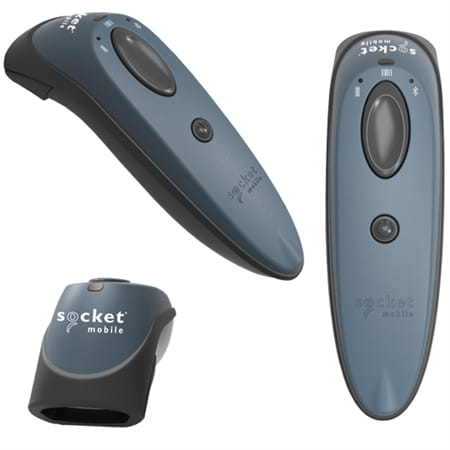

Socket Mobile DuraScan D730, Handheld bar code reader, 1D, Laser, Code 11,Code 128,Code 39,Code 93,GS1-128 (UCC/EAN-128),MSI,Plessey,Telepen, 650 nm, -10 - 10deg
1D Laser Barcode Scanner
Ergonomic, Elegant and Rugged
Built rough and tough for applications in warehouses, outdoor distribution and industrial manufacturing conditions, this Bluetooth scanner's seal withstands dust, water splashes, and germs. However, its softer side still remains light and comfortable in working hands, as well as elegant for showcasing and use in boutique environments for high-end clientele.
With a dual personality, the DuraScan can be used for your business" behind the scenes needs (warehouses, stocking, shipping, etc.) as well as the front end of your business, to impress customers with such sleek style and dependable access to information sitting in the palm of your hand.
Certified by Apple for iOS devices (iPad, iPhone, iTouch ) and compatible with Android, Windows smartphones and tablets.
- Wireless (Bluetooth) scanning for iOS, Android and Windows mobile devices.
- Wireless freedom with long-range Bluetooth connection of 330 feet (100m)
- Exceptional ergonomics Small, light and fits perfectly in the hand for comfortable use over extended periods of time
- Long lasting battery - Holds enough power for two 9 hour shifts up to 21 hours and over 18,000 scans
- Intuitive LED indicators let users know battery, Bluetooth connection and scanning status at a glance
- User feedback with audible tones and hand pulsation
- IP54 Rated for dust protection and protection from splashing water
- Rugged Design - Withstands multiple 5 ft. (1.5m) drops to concrete and 500 repeated tumbles. The scan trigger button is constructed to withstand 5,000,000 depressions
- Made with antimicrobial material for easy cleaning and protection against potential harmful microbes
- Wearable - Includes lanyard / belt clip for convenient access wherever you go
- Designed & made in the USA
- No software installation required - use Bluetooth HID mode to connect like a wireless keyboard
- Advanced functionality and scanner configuration supported in Bluetooth SPP mode with SocketScan 10 keyboard wedge software (download)
- Solutions: Retail/Point of Sale, Office Use, Healthcare, Mobile Tracking, Warehouse Management, Shipping & Receiving, Field Sales/Service
- Warranty: 1 year for Barcode Scanner and 90 days for Accessories - Extended warranty available
Ergonomic, Elegant and Rugged
Built rough and tough for applications in warehouses, outdoor distribution and industrial manufacturing conditions, this Bluetooth scanner's seal withstands dust, water splashes, and germs. However, its softer side still remains light and comfortable in working hands, as well as elegant for showcasing and use in boutique environments for high-end clientele.
With a dual personality, the DuraScan can be used for your business" behind the scenes needs (warehouses, stocking, shipping, etc.) as well as the front end of your business, to impress customers with such sleek style and dependable access to information sitting in the palm of your hand.
Certified by Apple for iOS devices (iPad, iPhone, iTouch ) and compatible with Android, Windows smartphones and tablets.
- Wireless (Bluetooth) scanning for iOS, Android and Windows mobile devices.
- Wireless freedom with long-range Bluetooth connection of 330 feet (100m)
- Exceptional ergonomics Small, light and fits perfectly in the hand for comfortable use over extended periods of time
- Long lasting battery - Holds enough power for two 9 hour shifts up to 21 hours and over 18,000 scans
- Intuitive LED indicators let users know battery, Bluetooth connection and scanning status at a glance
- User feedback with audible tones and hand pulsation
- IP54 Rated for dust protection and protection from splashing water
- Rugged Design - Withstands multiple 5 ft. (1.5m) drops to concrete and 500 repeated tumbles. The scan trigger button is constructed to withstand 5,000,000 depressions
- Made with antimicrobial material for easy cleaning and protection against potential harmful microbes
- Wearable - Includes lanyard / belt clip for convenient access wherever you go
- Designed & made in the USA
- No software installation required - use Bluetooth HID mode to connect like a wireless keyboard
- Advanced functionality and scanner configuration supported in Bluetooth SPP mode with SocketScan 10 keyboard wedge software (download)
- Solutions: Retail/Point of Sale, Office Use, Healthcare, Mobile Tracking, Warehouse Management, Shipping & Receiving, Field Sales/Service
- Warranty: 1 year for Barcode Scanner and 90 days for Accessories - Extended warranty available
| Scanning | |
| Type Characteristics of the device. | Handheld bar code reader |
| Scanner type Indicates the type of scanner this product is. | 1D |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | Laser |
| Linear (1D) barcodes supported The product can read linear (1D) barcordes. | Code 11,Code 128,Code 39,Code 93,GS1-128 (UCC/EAN-128),MSI,Plessey,Telepen |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Not supported |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 650 nm |
| Tilt reading angle | -10 - 10° |
| Pitch reading angle | -35 - 35° |
| Yaw reading angle | -47 - 47° |
| Maximum scan width | 2.6 cm |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | Bluetooth |
| Wireless range | 100 m |
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 2.1+EDR |
| Performance | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP54 |
| Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. | Splash proof |
| LED indicators |
 |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Blue, Grey |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Power | |
| Power source type What the power source is. | Battery |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lithium-Ion (Li-Ion) |
| Battery type Description of battery supplied with the product, such battery form factor (e.g. AA/AAA). | Built-in battery |
| Battery capacity A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery. | 1400 mAh |
| Battery life The amount of time that the battery will last for. | 26 h |
| Charging time The amount of time needed to charge the product. | 6 h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 37.1 mm |
| Depth The distance from the front to the back of something. | 40.1 mm |
| Height The measurement of the product from head to foot or from base to top. | 132.2 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 108 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| SKU | 464120 |
| MPN | CX3358-1680 |
| Brand | Socket |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://store.socketmobile-au.com/ |
