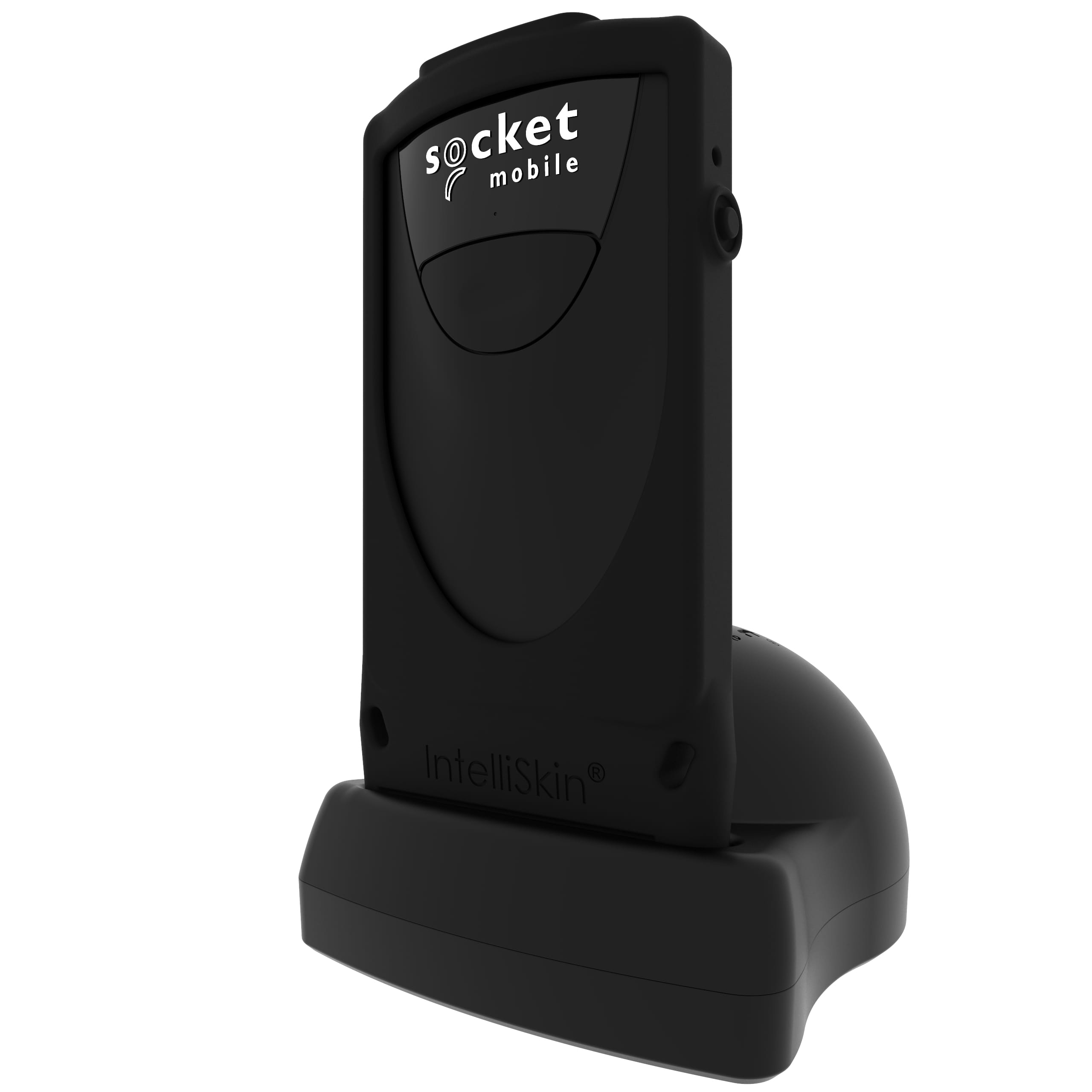

Socket Mobile D820, Handheld bar code reader, 1D/2D, Linear, GS1 DataBar, Industrial 2 of 5, Code 39, Codabar, Code 93, Interleaved 2 of 5, Code 11, Code 128,..., Aztec Code, Han Xin, Data Matrix, PDF417, QR Code, Micro QR Code, 0 - 100000 lx
The DuraScan D820 is a linear barcode & QR Code 1D/2D barcode reader with Bluetooth wireless technology. It reads the most popular 2D/1D barcodes and is perfect for retail point of sale, inventory management, sales order entry, field service, and other mobile business applications. Users can scan barcodes printed on labels or displayed on screens. Designed for mobility, durability and lasting up to two shifts. The external rubberized material increases drop protection. Easy to use and attachable to a mobile device, enabling one-handed operation, it slips neatly into your pocket and fits comfortably in the palm of your hand.
Certified by Apple for iOS devices (iPad , iPhone , iPod Touch devices) and compatible with Android and Microsoft Windows
Certified by Apple for iOS devices (iPad , iPhone , iPod Touch devices) and compatible with Android and Microsoft Windows
| Scanning | |
| Type Characteristics of the device. | Handheld bar code reader |
| Scanner type Indicates the type of scanner this product is. | 1D/2D |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | Linear |
| Linear (1D) barcodes supported The product can read linear (1D) barcordes. | GS1 DataBar, Industrial 2 of 5, Code 39, Codabar, Code 93, Interleaved 2 of 5, Code 11, Code 128, Discrete 2 of 5, MSI, Matrix 2 of 5, UPC-A, EAN-13, EAN-8 |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Aztec Code, Han Xin, Data Matrix, PDF417, QR Code, Micro QR Code |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | Bluetooth |
| Wireless range | 10 m |
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 2.1+EDR |
| Performance | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP40 |
| LED indicators |
 |
| Print contrast | 25% |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | China |
| Power | |
| Power source type What the power source is. | Battery |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lithium Polymer (LiPo) |
| Number of batteries supported The number of batteries that can be used with the product. | 1 |
| Battery capacity A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery. | 700 mAh |
| Battery voltage The voltage (V) of the battery. | 3.7 V |
| Battery life The amount of time that the battery will last for. | 25 h |
| Charging time The amount of time needed to charge the product. | 8 h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 60.2 mm |
| Depth The distance from the front to the back of something. | 16.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 106.7 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 71.5 g |
| Packaging data | |
| Charging base |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -30 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Warranty period | 1 year(s) |
| SKU | 768467 |
| MPN | CX4041-3104 |
| Brand | Socket |
| Product Condition | Brand New/Unused |
| Product Use | General |
