SNOM D8C Expansion module 6.8 Zoll (17.2 cm) TFT colour screen, Expansion module with 60 programmable buttons on 3 sides, Plug-and-play

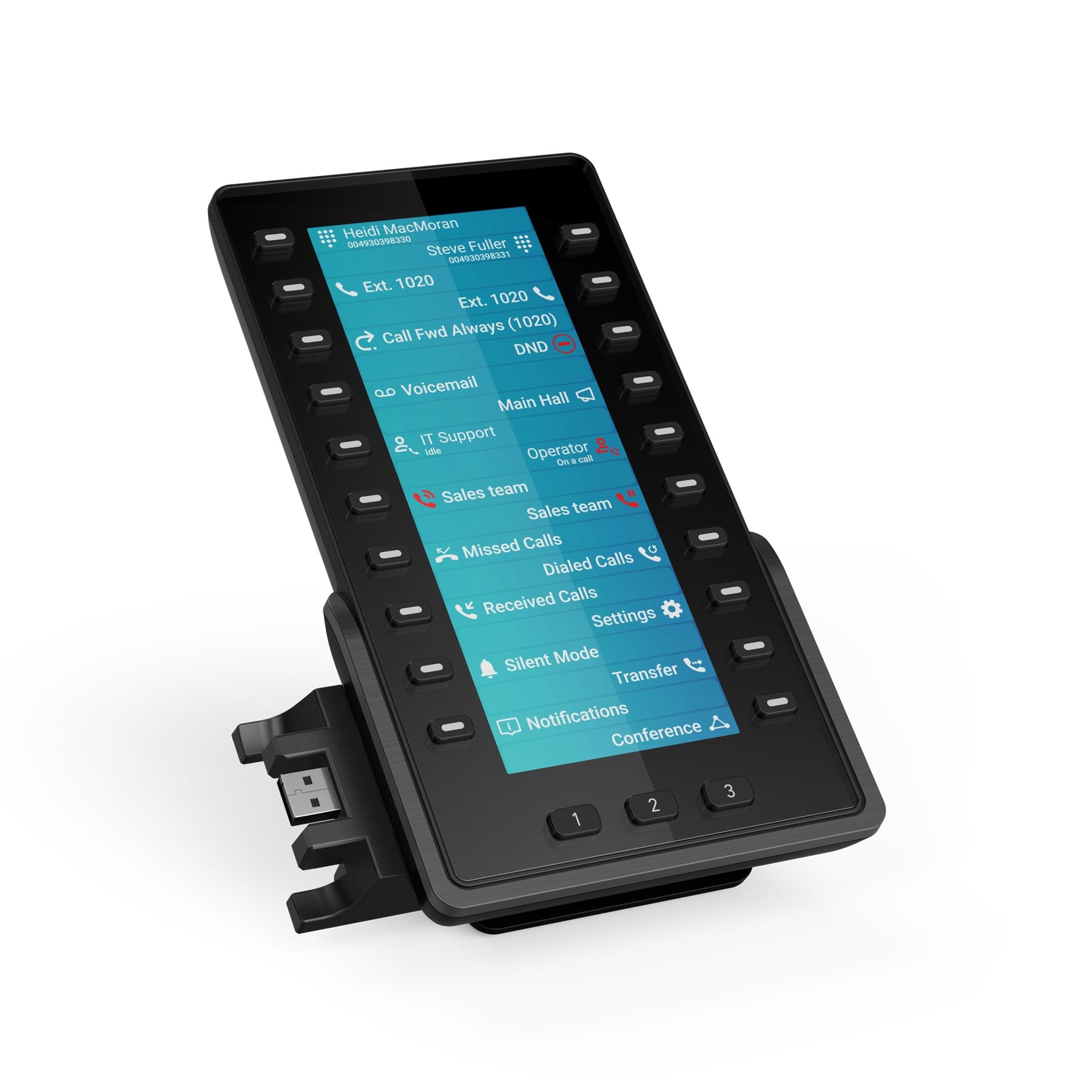

Snom D8C Expansion module
Key features
6.8 Zoll (17.2 cm) TFT colour screen
Expansion module with 60 programmable buttons on 3 sides
Plug-and-play
Expandable with up to two additional modules
Stylish expansion module of the D8xx series
The Snom D8C is an expansion module for all D8xx series devices.
The expansion module has a large, high-resolution colour display with a very clear user interface.
Connected to the telephone via USB using plug and play, the Snom D8C expands the D8xx series telephones with an additional large screen and a wide range of application options.
With the help of the 20 physical (60 virtual) freely programmable and multi-coloured LED function keys, the status of colleagues, for example, can be quickly identified and a call quickly forwarded. If the corresponding line or the LED function line lights up red or yellow, the person in question is inactive or busy.
Where an even more comprehensive overview is required, up to three Snom D8Cs in series can be connected. Simply plug and play via USB.
Configuration of the Snom D8C is always very straightforward, either via the telephone system or the Snom web interface.
The user can decide almost freely what and how things are displayed in the D8C - Snom supports several styles and symbols or even customised backgrounds
Key features
6.8 Zoll (17.2 cm) TFT colour screen
Expansion module with 60 programmable buttons on 3 sides
Plug-and-play
Expandable with up to two additional modules
Stylish expansion module of the D8xx series
The Snom D8C is an expansion module for all D8xx series devices.
The expansion module has a large, high-resolution colour display with a very clear user interface.
Connected to the telephone via USB using plug and play, the Snom D8C expands the D8xx series telephones with an additional large screen and a wide range of application options.
With the help of the 20 physical (60 virtual) freely programmable and multi-coloured LED function keys, the status of colleagues, for example, can be quickly identified and a call quickly forwarded. If the corresponding line or the LED function line lights up red or yellow, the person in question is inactive or busy.
Where an even more comprehensive overview is required, up to three Snom D8Cs in series can be connected. Simply plug and play via USB.
Configuration of the Snom D8C is always very straightforward, either via the telephone system or the Snom web interface.
The user can decide almost freely what and how things are displayed in the D8C - Snom supports several styles and symbols or even customised backgrounds
| Performance | |
| Type Characteristics of the device. | Smart telephone |
| Answering machine The product contains an answering machine where you can leave messages if the phone is unanswered/engaged (busy). |
 |
| Handset type | Wireless handset |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Linux |
| Design | |
| Mounting type Type of mounting e.g. wall mounting. | Desk |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Elderly phone |
 |
| Phone features | |
| Speakerphone Device has a microphone and loudspeaker provided separately from those in the handset. This device allows multiple persons to participate in a conversation. The loudspeaker broadcasts the voice or voices of those on the other end of the telephone line, while the microphone captures all voices of those using the speakerphone. |
|
| Call management | |
| Caller ID The name and/or number of the caller comes up on screen when they ring the phone. You also send your caller ID when you call someone else unless you choose to deactivate it. |
|
| Management features | |
| Programmable hot keys |
|
| Indication | |
| LED indicators | Status |
| Display | |
| Display The description of display that can includes display type, resolution, size etc. | TFT |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 17.3 cm (6.8") |
| Display size (HxV) | 161 x 60 mm |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1280 x 480 pixels |
| Backlight display A backlight is a form of illumination used in liquid crystal displays (LCDs). As LCDs do not produce light themselves - unlike for example Cathode ray tube (CRT) displays - they need illumination (ambient light or a special light source) to produce a visible image. Backlights are used in small displays to increase readability in low light conditions such as in watches, and in computer displays and LCD televisions to produce light in a manner similar to a CRT display. |
|
| Backlight colour | Green |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| AC input frequency | 50-60 Hz |
| Input current | 2 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 10 W |
| Base station input voltage | 5 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 118 mm |
| Depth The distance from the front to the back of something. | 170 mm |
| Height The measurement of the product from head to foot or from base to top. | 155 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 455 g |
| Packaging content | |
| Number of handsets included | 1 |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 35 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| SKU | 807149 |
| MPN | 4562 |
| Brand | Snom |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://service.snom.com/ |
| Stock Availability | Available for Shipping |
