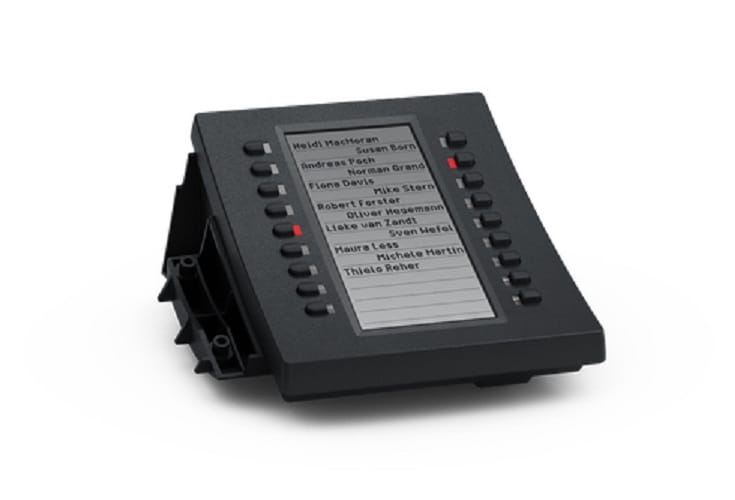

SNOM D3 Expansion Module USB for D385, D375, D345, D335 & D315, 18 Highly Configurable, Self labelling, LED Keys
Snom D3 Expansion Module USB for D375, D345 and D315
SNOM D3
Increase the available function keys on D3xx phones with USB port, allowing users to manage a large number of extensions and calls. The D3 Expansion Module provides an additional 18 multicolored LED keys that can be programmed for functions such as line, speed dial, busy lamp field and presence indication.
A multicolored LED key presents call or presence status, and the high resolution display provides a visual interface that can be easily configured and labelled via the phone's web interface or directly on the phone itself. The D3 connects to the telephone using a USB cable and up to three D3 expansion modules can be daisy chained to provide 54 function keys.
Features
18 highly configurable, self labelling, multicolored LED keys
High resolution black and white display with backlight
Daisy chain up to 3 modules (54 function keys)
Plug and play
Power supplied from phone via USB port
| Design | |
| Product type The sub-category of the product. | IP Phone |
| Handset type | Wired handset |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Blue |
| Management features | |
| Number of programmable keys | 18 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Display | |
| Display number of colours | Monochrome |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| Expansion module support |
|
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 10 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 45 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 170 mm |
| Depth The distance from the front to the back of something. | 80 mm |
| Height The measurement of the product from head to foot or from base to top. | 140 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 300 g |
| Packaging content | |
| Base station |
|
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Logistics data | |
| Harmonized System (HS) code | 85171800 |
| SKU | 743879 |
| MPN | SNOM-D3 |
| Brand | Snom |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
