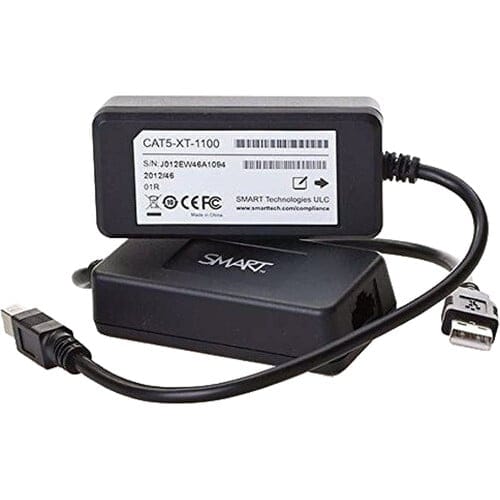

SMART CAT 6 TO USB EXTENDER - CABLE 5 CABLE NOT INCLUDED
You must supply a Cat 5 Cat 5e or Cat 6 cable Cat 5e ScTP ground-shielded cable is recommended to connect the REX and the LEX. It must not exceed 130 40 m but may be less depending on the number of hubs connected. Use plenum rated cable if required.
Note
To ensure part availability SMART may provide a substitute CAT 5 extender in place of the SMART-branded extender. The
substituted extender will provide the same features and capabilities.
Standard features
Note
To ensure part availability SMART may provide a substitute CAT 5 extender in place of the SMART-branded extender. The
substituted extender will provide the same features and capabilities.
Standard features
- Maximum extension Up to 130 40 m
- USB device support Full-speed 12 Mbps USB 1.1 device
- USB hub support Can support up to two externally powered USB hubs connected in series with the Cat 5 USB extender. Each hub reduces the maximum extension by 40 12 m.
- LEX local One USB-A plug one RJ45 jack
- REX remote One USB-B plug one RJ45 jack
| Performance | |
| Type Characteristics of the device. | Network transmitter & receiver |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 40 m |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 12 Mbit/s |
| Cable types supported | Cat5 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | CE and FCC |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 40 mm |
| Depth The distance from the front to the back of something. | 23 mm |
| Height The measurement of the product from head to foot or from base to top. | 330 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 95 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 127 mm |
| Package depth The distance from the front to the back of the packaging. | 60 mm |
| Package height The distance from the top to the bottom of the packaging. | 127 mm |
| Package weight Weight of the packaged product. | 170 g |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Certificates | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Operating temperature (T-T) | 32 - 122 °F |
| SKU | 834523 |
| MPN | CAT5-XT-1100 |
| Brand | SMART |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | N/A |
