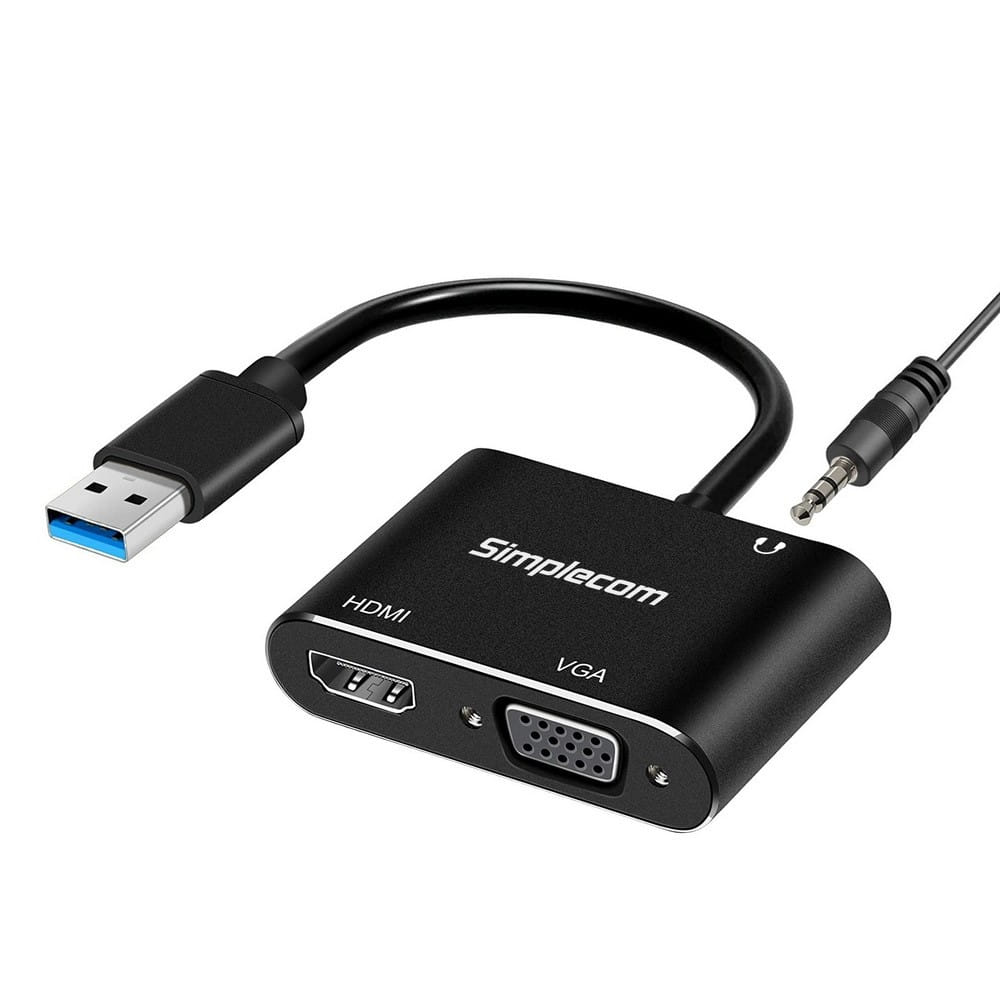

Simplecom DA316A USB to HDMI + VGA Video Card Adapter with 3.5mm Audio
This USB to HDMI+VGA video card adapter turns a standard size USB port (USB-A) into HDMI or VGA output with resolution up to Full HD 1080p. Compatible with regular USB 2.0 or USB 3.0 port, it s an easy way to connect HDMI or VGA display to any PC that require additional display when the other video ports are occupied.
This USB adapter supports mirror or extended mode. Expand your main screen to a secondary screen that you could use two screens both for work and entertainment. It s an easy and convenient solution to add multi-monitor capability to a computer and extend your desktop. The HDMI and VGA ports can output same screen simultaneously, it also has a built-in 3.5mm audio jack, which can be connected to external speaker or headphones.
Features
Compatible with standard size USB 2.0 or USB 3.0 port
Support resolution up to 1080p (1920x1080)
Compact and portable design, easy to carry
Simple installation, built-in USB flash drive for driver software
USB powered, no external power required
Aluminium casing to ensure stable performance and heat dissipation
HDMI port supports both video and audio, VGA output video only
3.5mm headphones jack for audio output
HDMI and VGA ports can output same screen simultaneously
Support Extended or Mirror display mode
Compatible with Windows 7 and above
Specifications
Input: USB-A
Output: HDMI, VGA, 3.5mm Audio
Resolution Support: up to 1080p (1920x1080)
Cable Length: 15cm
Dimension: 60mm x 39mm x 14mm (LxWxH)
Weight: 45g
Operating Temperature: -5 - 35 DegC
Important Note
While plug this adapter to your computer first time, you'll see there is a new USB flash drive under My Computer or This PC, then double clicks setup file inside USB Drive to install the driver. You can also download driver from our website.
If you have any trouble to install the driver software, try to turn off anti-virus software temporarily before install the driver. You can turn on again after installation.
The USB to HDMI VGA ada
This USB adapter supports mirror or extended mode. Expand your main screen to a secondary screen that you could use two screens both for work and entertainment. It s an easy and convenient solution to add multi-monitor capability to a computer and extend your desktop. The HDMI and VGA ports can output same screen simultaneously, it also has a built-in 3.5mm audio jack, which can be connected to external speaker or headphones.
Features
Compatible with standard size USB 2.0 or USB 3.0 port
Support resolution up to 1080p (1920x1080)
Compact and portable design, easy to carry
Simple installation, built-in USB flash drive for driver software
USB powered, no external power required
Aluminium casing to ensure stable performance and heat dissipation
HDMI port supports both video and audio, VGA output video only
3.5mm headphones jack for audio output
HDMI and VGA ports can output same screen simultaneously
Support Extended or Mirror display mode
Compatible with Windows 7 and above
Specifications
Input: USB-A
Output: HDMI, VGA, 3.5mm Audio
Resolution Support: up to 1080p (1920x1080)
Cable Length: 15cm
Dimension: 60mm x 39mm x 14mm (LxWxH)
Weight: 45g
Operating Temperature: -5 - 35 DegC
Important Note
While plug this adapter to your computer first time, you'll see there is a new USB flash drive under My Computer or This PC, then double clicks setup file inside USB Drive to install the driver. You can also download driver from our website.
If you have any trouble to install the driver software, try to turn off anti-virus software temporarily before install the driver. You can turn on again after installation.
The USB to HDMI VGA ada
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cable length How long the cable is. | 0.15 m |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 7 |
| Video | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1920 x 1080 pixels |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 2.0 |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | HDMI/VGA |
| VGA (D-Sub) output ports | 1 |
| 3.5 mm connector |
 |
| Power | |
| USB powered The device can be powered via a USB connection. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -5 - 35 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 60 mm |
| Depth The distance from the front to the back of something. | 39 mm |
| Height The measurement of the product from head to foot or from base to top. | 14 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 45 g |
| Packaging data | |
| Quantity The number of products there are. | 1 |
| SKU | 536831 |
| MPN | DA316A |
| Brand | Simplecom |
| Product Condition | Brand New/Unused |
| Adapter Type | Monitor Adapter, USB Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.simplecom.com.au/ |
