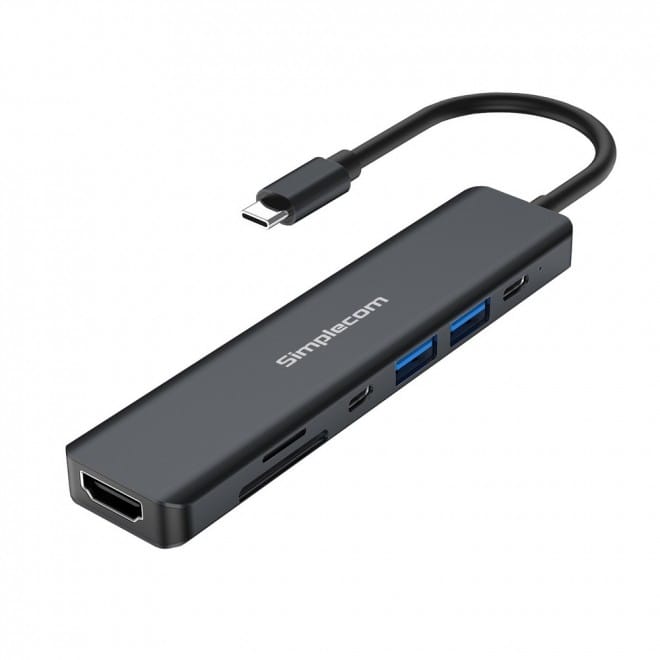

Simplecom CH570 USB-C 7-in-1 Multiport Adapter Hub USB 3.0 HDMI 4K SD Card Reader
CH570 is a 7-in-1 USB-C multiport adapter for modern laptops with multifunctional USB-C interface, you can get the most out of your laptop through USB-C port. It turns a single USB-C port into 7 ports, including 2x USB-A ports, 2x slots card reader, HDMI Display expansion, 1x USB-C date port and 1x USB-C PD charging port.
If you need to connect with various devices to your laptop at same time, CH570 is a comprehensive connectivity solution that helps you do more with the devices you already have to increase productivity and convenience. The adapter comes in a durable aluminium alloy housing, making for a stylish addition to your desk, whilst its compact design makes it perfect for travelling.
Features
Convenience of expanding your laptop with this 7-Port USB-C Hub
Single USB-C to USB-A, HDMI, Card Reader and PD
Up to 5Gbps data transfer rate on USB-A port following USB 3.2 Gen 1 specification
HDMI port supports up to 4K@30Hz resolution in Mirror or Extended mode
2 Slot Card reader for SD and micro SD Card
USB-C PD port for charging the laptop with up to 87W of power
Durable & stylish aluminium alloy housing
Lightweight, easy to carry along when travelling
Built-in flexible USB-C Cable
Plug & play, no driver software required
Specifications
USB Hub: 2x USB-A Female (1x SuperSpeed 5Gbps, 1x HighSpeed 480Mbps), 1x USB-C Female (HighSpeed 480Mbps)
HDMI Output: Support up to 3840 x 2160p at 30 Hz (4K@30Hz)
Card Reader: SD and MicroSD (HighSpeed 480Mbps)
PD Charging: USB-C Female (for charging only), up to 87W
Operation Temperature: 0 - 45DegC
Dimensions: 121 x 28 x 10 (mm)
Cable Length: 10cm
Weight: 45g
Housing: Aluminium
System Requirements
Available USB-C port on PC, Mac, Phone or Tablet with DisplayPort Alternate Mode support
Operating system: Windows 7 or above, MacOS 10.7.1 or above, Android
If you need to connect with various devices to your laptop at same time, CH570 is a comprehensive connectivity solution that helps you do more with the devices you already have to increase productivity and convenience. The adapter comes in a durable aluminium alloy housing, making for a stylish addition to your desk, whilst its compact design makes it perfect for travelling.
Features
Convenience of expanding your laptop with this 7-Port USB-C Hub
Single USB-C to USB-A, HDMI, Card Reader and PD
Up to 5Gbps data transfer rate on USB-A port following USB 3.2 Gen 1 specification
HDMI port supports up to 4K@30Hz resolution in Mirror or Extended mode
2 Slot Card reader for SD and micro SD Card
USB-C PD port for charging the laptop with up to 87W of power
Durable & stylish aluminium alloy housing
Lightweight, easy to carry along when travelling
Built-in flexible USB-C Cable
Plug & play, no driver software required
Specifications
USB Hub: 2x USB-A Female (1x SuperSpeed 5Gbps, 1x HighSpeed 480Mbps), 1x USB-C Female (HighSpeed 480Mbps)
HDMI Output: Support up to 3840 x 2160p at 30 Hz (4K@30Hz)
Card Reader: SD and MicroSD (HighSpeed 480Mbps)
PD Charging: USB-C Female (for charging only), up to 87W
Operation Temperature: 0 - 45DegC
Dimensions: 121 x 28 x 10 (mm)
Cable Length: 10cm
Weight: 45g
Housing: Aluminium
System Requirements
Available USB-C port on PC, Mac, Phone or Tablet with DisplayPort Alternate Mode support
Operating system: Windows 7 or above, MacOS 10.7.1 or above, Android
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Hub interfaces A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports. | HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB Type-C |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 5 |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
 |
| Card reader slot | 2 |
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), SD |
| Features | |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 5000 Mbit/s |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Aluminium |
| USB Power Delivery |
|
| USB Power Delivery up to | 87 W |
| Cable length How long the cable is. | 0.1 m |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Power | |
| Power supply type The type of power supply which this product uses. | USB |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 7,Windows 8,Windows 8.1 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur |
| Other operating systems supported | Android |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 128 mm |
| Depth The distance from the front to the back of something. | 28 mm |
| Height The measurement of the product from head to foot or from base to top. | 10 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 45 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| SKU | 560623 |
| MPN | CH570 |
| Brand | Simplecom |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.simplecom.com.au/ |
