Simplecom SA221 USB 3.0 to mSATA + NGFF M.2 (B Key) SSD 2 in 1 Combo Adapter

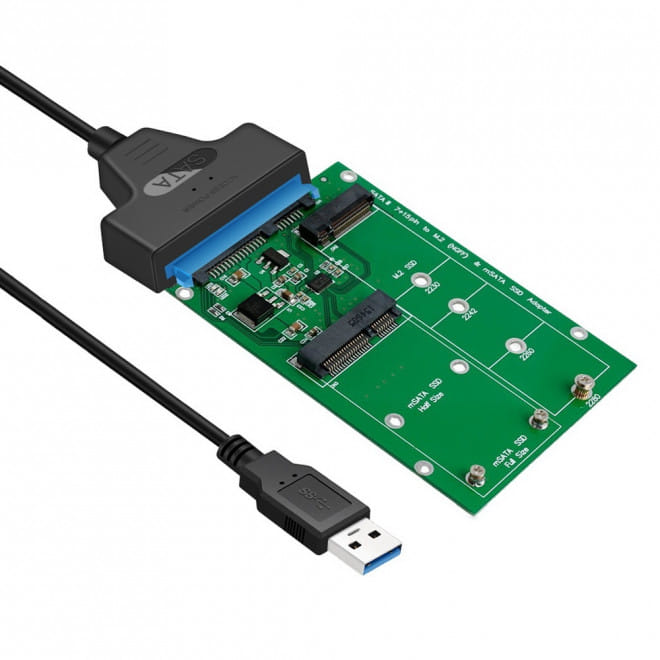

Simplecom SA221 is a 2 in 1 Combo Adapter for both M.2 and mSATA SSD to SATA and USB 3.0 interface. Use this adapter to easily access 6 different size M.2 or mSATA SSDs via standard SATA or USB 3.0 port. It 's an ideal solution for data backup and migration.
Specifications
mSATA + M.2 SSD 2 in 1 Combo Adapter
Detachable USB 3.0 cable, with SATA and USB 3.0 dual interface
LED indicates power and activity status
Support SATA Revision 3.2
PCI Express M.2 Spec. Revision 0.7, Version 1.0
PCI Express Mini Card Electromechanical Spec. 1.2
B Key M.2 interface, support B Key or B+M Key M.2 SSD
Thermal shutdown protection
Short circuit protection
In-rush current suppression
PWM synchronous buck converter Power IC
Support following form factor M.2(NGFF) SSD:
Type 2230-D2-B-M: 30mm(L) x 22mm(W)
Type 2242-D2-B-M: 42mm(L) x 22mm(W)
Type 2260-D2-B-M: 60mm(L) x 22mm(W)
Type 2280-D2-B-M: 80mm(L) x 22mm(W)
Support following form factor mSATA SSD:
Half size mSATA : 26.8mm(L) x 30mm(W)
Full size mSATA : 50.95mm(L) x 30mm(W)
Note:
If both M.2 & mSATA SSD inserted at the same time the M.2 SSD will take priority. The mSATA SSD will be disabled until the M.2 SSD is removed.
The M.2 interface is B Key, M Key only or NVMeM.2 SSD are not supported.
Package Contents
1x mSATA + M.2 SSD to SATA 2 in 1 Combo Adapter
1x USB 3.0 Cable
Specifications
mSATA + M.2 SSD 2 in 1 Combo Adapter
Detachable USB 3.0 cable, with SATA and USB 3.0 dual interface
LED indicates power and activity status
Support SATA Revision 3.2
PCI Express M.2 Spec. Revision 0.7, Version 1.0
PCI Express Mini Card Electromechanical Spec. 1.2
B Key M.2 interface, support B Key or B+M Key M.2 SSD
Thermal shutdown protection
Short circuit protection
In-rush current suppression
PWM synchronous buck converter Power IC
Support following form factor M.2(NGFF) SSD:
Type 2230-D2-B-M: 30mm(L) x 22mm(W)
Type 2242-D2-B-M: 42mm(L) x 22mm(W)
Type 2260-D2-B-M: 60mm(L) x 22mm(W)
Type 2280-D2-B-M: 80mm(L) x 22mm(W)
Support following form factor mSATA SSD:
Half size mSATA : 26.8mm(L) x 30mm(W)
Full size mSATA : 50.95mm(L) x 30mm(W)
Note:
If both M.2 & mSATA SSD inserted at the same time the M.2 SSD will take priority. The mSATA SSD will be disabled until the M.2 SSD is removed.
The M.2 interface is B Key, M Key only or NVMeM.2 SSD are not supported.
Package Contents
1x mSATA + M.2 SSD to SATA 2 in 1 Combo Adapter
1x USB 3.0 Cable
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | USB Type-A |
| Host interface gender | Male |
| Output interface The socket (port) where the output connectors are connected. | mSATA |
| Expansion card form factor | Full-height / Half-length |
| Expansion card standard | PCIe 1.0 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| SATA revision | 3.2 |
| Design | |
| Internal The product is built in. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Green |
| Purpose What the product is used for. | PC |
| LED indicators | Activity, Power, Status |
| Features | |
| Built-in processor Whether or not a processor is built into the device. |
|
| Data transfer rate (max) | 5 Gbit/s |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| SKU | 266833 |
| MPN | SA221 |
| Brand | Simplecom |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter, USB Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.simplecom.com.au/ |
