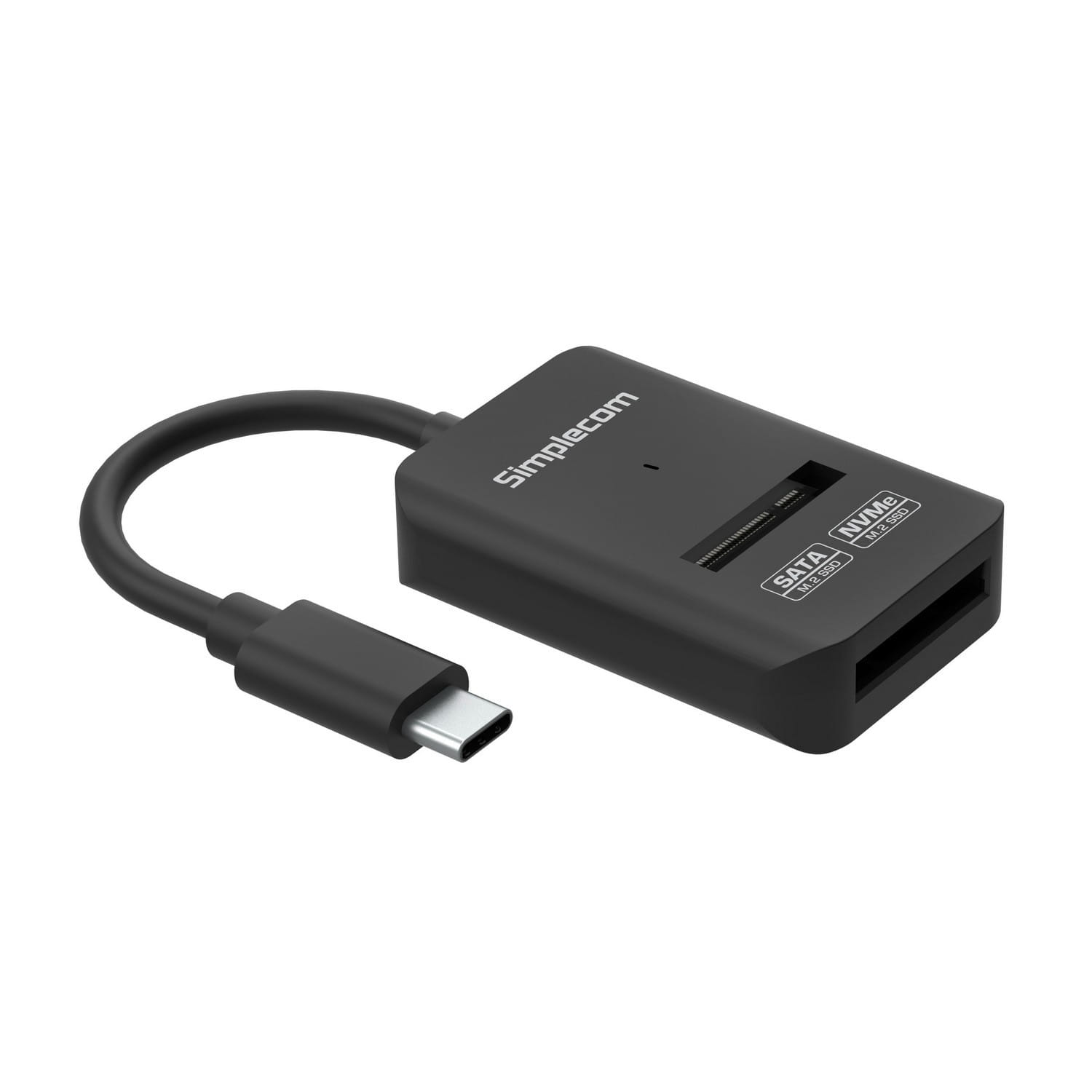

Simplecom SA506 NVMe / SATA Dual Protocol M.2 SSD to USB-C Adapter Converter USB 3.2 Gen 2 10Gbps
SA506 is a M.2 SSD to USB-C adapter that supports both NVMe and SATA protocol based M.2 SSDs. No need to worry about which type of M.2 SSD you have, this adapter converts both SATA and NVMe M.2 SSD to USB-C for easy access on your computer.
This adapter is plug and play and USB powered, no external power needed to operate. USB 3.2 Gen 2 interface for super-fast read and write speed up to 10Gbps. It s an ideal solution for for data migration, drive cloning and data backup. Designed for fast and easy access of M.2 SSD, this cable style adapter makes it easy to swap multiple M.2 SSDs without having to install them into a PC or enclosure.
Features
Dual Protocol support for both NVMe and SATA M.2 SSD
Convert M.2 SSD (M Key or B+M Key) to USB-C
USB 3.2 Gen 2 interface up to 10Gbps transfer rate
Cable style adapter for easy swap and access of multiple M.2 SSDs
Supports USAP for faster data transfer speed and maximum performance
Supports TRIM command for improved data writing to extend SSD life
Plug and play, no driver required
LED indicator for power and activity status
Specifications
Model: SA506
Material: ABS Plastic
Interface: USB-C (USB 3.2 Gen 2)
Transfer Rate: NVMe M.2 up to 10Gbps, SATA M.2 up to 6Gbps
Compatible M.2 Type: NVMe M.2, SATA M.2
Compatible M.2 size: 2230 / 2242 / 2260 / 2280 / 22100
Dimension: 158x37x12mm (LxWxH)
Operation Temperature: 0 - 45 DegC
Operating System Support: Windows 7 and above, Mac OS 10.8 and above
Package Contents
1x SA506 M.2 SSD to USB-C Adapter
1x User Manual
Important Note
*SA506 supports both NVMe and SATA based M.2 SSD (M Key or B+M Key), bandwidth will be limited to 6Gbps when using SATA M.2 SSD, as maximum transfer rate of SATA M.2 SSD is 6Gbps
This adapter is plug and play and USB powered, no external power needed to operate. USB 3.2 Gen 2 interface for super-fast read and write speed up to 10Gbps. It s an ideal solution for for data migration, drive cloning and data backup. Designed for fast and easy access of M.2 SSD, this cable style adapter makes it easy to swap multiple M.2 SSDs without having to install them into a PC or enclosure.
Features
Dual Protocol support for both NVMe and SATA M.2 SSD
Convert M.2 SSD (M Key or B+M Key) to USB-C
USB 3.2 Gen 2 interface up to 10Gbps transfer rate
Cable style adapter for easy swap and access of multiple M.2 SSDs
Supports USAP for faster data transfer speed and maximum performance
Supports TRIM command for improved data writing to extend SSD life
Plug and play, no driver required
LED indicator for power and activity status
Specifications
Model: SA506
Material: ABS Plastic
Interface: USB-C (USB 3.2 Gen 2)
Transfer Rate: NVMe M.2 up to 10Gbps, SATA M.2 up to 6Gbps
Compatible M.2 Type: NVMe M.2, SATA M.2
Compatible M.2 size: 2230 / 2242 / 2260 / 2280 / 22100
Dimension: 158x37x12mm (LxWxH)
Operation Temperature: 0 - 45 DegC
Operating System Support: Windows 7 and above, Mac OS 10.8 and above
Package Contents
1x SA506 M.2 SSD to USB-C Adapter
1x User Manual
Important Note
*SA506 supports both NVMe and SATA based M.2 SSD (M Key or B+M Key), bandwidth will be limited to 6Gbps when using SATA M.2 SSD, as maximum transfer rate of SATA M.2 SSD is 6Gbps
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | USB Type-C |
| Host interface gender | Male |
| Output interface The socket (port) where the output connectors are connected. | M.2 |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Number of M.2 (M) slots | 1 |
| Design | |
| Internal The product is built in. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Easy to install |
|
| Features | |
| Connector 1 form factor | Straight |
| Data transfer rate (max) | 10 Gbit/s |
| TRIM support |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Power | |
| USB powered The device can be powered via a USB connection. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 37 mm |
| Depth The distance from the front to the back of something. | 158 mm |
| Height The measurement of the product from head to foot or from base to top. | 12 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Manual |
|
| SKU | 646044 |
| MPN | SA506 |
| Brand | Simplecom |
| Product Condition | Brand New/Unused |
| Adapter Type | USB Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.simplecom.com.au/ |
