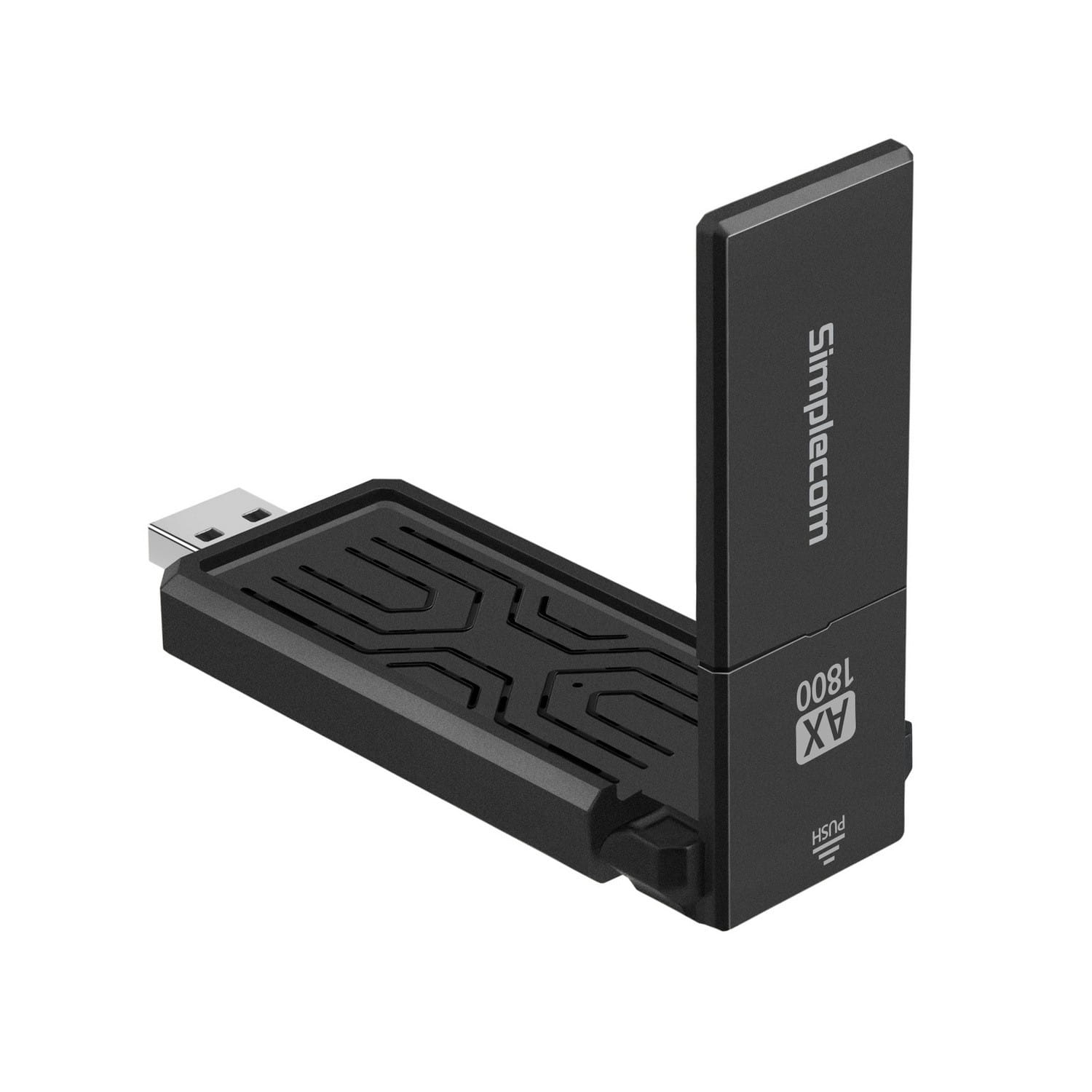

Simplecom NW812 AX1800 Dual Band WiFi 6 USB Adapter with Foldable Antenna
Features
High performance WiFi 6 USB adapter for PC and Laptop
AX1800 connection speeds up to 574Mbps at 2.4GHz and 1201Mbps at 5GHz
Supports OFDMA and MU MIMO, enable fast and efficient connection in high density environments
Supports WPA3 to provide enhanced network security against attacks
High gain antenna ensures strong and stable WiFi signal
Excellent portability with foldable antenna
Beamforming improves WiFi signal strength and range
Backwards compatible with previous standard WiFi routers
Ideal for HD streaming, online gaming and downloading
Easy and automatic installation for Windows PC
Support Windows 10 and above operating systems
Specifications
Model: NW812
Interface: USB 3.2 Gen 1 (USB 3.0)
WiFi Protocol: IEEE 802.11a/b/g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax)
WiFi Rate: up to 574Mbps (2.4GHz 802.11ax), 1201Mbps (5GHz 802.11ax), 867Mbps (5GHz 802.11ac)
Antenna Type: foldable high gain antenna
Wireless Security: WPA PSK, WPA2 PSK, WPA, WPA2, WPA3
Wireless Frequency: Dual band 2.4GHz & 5GHz
Operating Temperature: 0 " 40 DegC
Operating Humidity: 10% 90% non condensing
Dimension: 85x32x14mm
Weight: 22g
System Requirements: Windows 10 and above
Package Contents
1x USB Adapter
1x User Manual
Features
High performance WiFi 6 USB adapter for PC and Laptop
AX1800 connection speeds up to 574Mbps at 2.4GHz and 1201Mbps at 5GHz
Supports OFDMA and MU MIMO, enable fast and efficient connection in high density environments
Supports WPA3 to provide enhanced network security against attacks
High gain antenna ensures strong and stable WiFi signal
Excellent portability with foldable antenna
Beamforming improves WiFi signal strength and range
Backwards compatible with previous standard WiFi routers
Ideal for HD streaming, online gaming and downloading
Easy and automatic installation for Windows PC
Support Windows 10 and above operating systems
Specifications
Model: NW812
Interface: USB 3.2 Gen 1 (USB 3.0)
WiFi Protocol: IEEE 802.11a/b/g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax)
WiFi Rate: up to 574Mbps (2.4GHz 802.11ax), 1201Mbps (5GHz 802.11ax), 867Mbps (5GHz 802.11ac)
Antenna Type: foldable high gain antenna
Wireless Security: WPA PSK, WPA2 PSK, WPA, WPA2, WPA3
Wireless Frequency: Dual band 2.4GHz & 5GHz
Operating Temperature: 0 " 40 DegC
Operating Humidity: 10% 90% non condensing
Dimension: 85x32x14mm
Weight: 22g
System Requirements: Windows 10 and above
Package Contents
1x USB Adapter
1x User Manual
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Host interface Interface that enables a host controller to communicate with a driver. | USB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | WLAN |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 1 (3.1 Gen 1) |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1800 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Wi-Fi band The frequency bands the product features. | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported | 574,867,1200 Mbit/s |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WPA, WPA-PSK, WPA2, WPA3 |
| Design | |
| Component for What this product is used as a part of (component for). | PC/notebook |
| Internal The product is built in. |
 |
| Antenna |
|
| Antenna design | External |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 85 mm |
| Depth The distance from the front to the back of something. | 32 mm |
| Height The measurement of the product from head to foot or from base to top. | 14 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 22 g |
| Packaging content | |
| Resource CD |
|
| Manual |
|
| SKU | 723665 |
| MPN | NW812 |
| Brand | Simplecom |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter, USB Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.simplecom.com.au/ |
