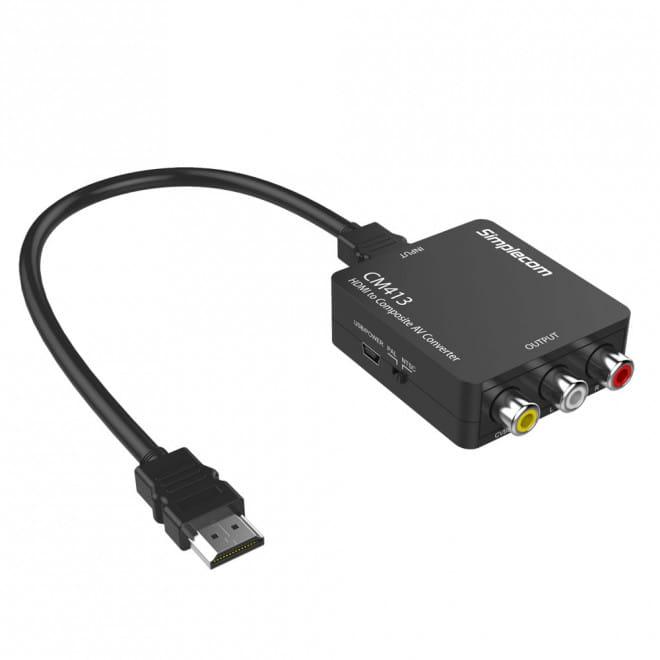

Simplecom CM413 HDMI to Composite AV CVBS 3RCA Video Converter 1080p Downscaling
Simplecom CM413 HDMI to Composite AV Video Adapter converts the high definition HDMI digital video and audio signal to analog composite video and R/L audio output. It can be used for typical HD video sources, such as Laptop, Smartphone, Blu-ray Player, HD TV box, and Digital Media Receiver, etc. to a display with CVBS input, such as traditional CRT TV, RPTV and projectors.
Features
Support HDMI input from up to 1080p (Does Not support 3D)
HDMI Input, Composite Video + Audio R/L Output (Does Not Support reverse way)
Supports NTSC and PAL two standard TV formats with a select switch
Hardware conversion, plug and play without any software driver
Signals through the HDMI high-definition video processing downscale to 576i, 480i (PAL / NTSC) video signal output
With advanced video processing chip, for better compatibility and image quality
Self-powered by HDMI port (USB Power is a backup power source and Not Required as most HDMI port can supply sufficient power)
HDCP Compliant, support most HDCP HDMI output, e.g. Apple TV, Foxtel, and other Internet Streaming Box
Specifications
Model: CM413
HDMI Version: 1.4, backward compatible with HDMI 1.1,1.2,1.3
HDCP Compliant: Yes
Support TV formats: NTSC and PAL
Inputs: HDMI x 1
Outputs: AV x 1; L / R x 1
HDMI input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz
CVBS output: 480i, 576i
Dimensions : 55mm(W)x66mm(D)x 20mm(H)
Weight Converter : 40 gram
PAL and NTSC standard format selector switch
Package Contents
1 x CM413 HDMI to AV Converter
1 x USB Cable (for backup power source only)
1 x HDMI Lead
Features
Support HDMI input from up to 1080p (Does Not support 3D)
HDMI Input, Composite Video + Audio R/L Output (Does Not Support reverse way)
Supports NTSC and PAL two standard TV formats with a select switch
Hardware conversion, plug and play without any software driver
Signals through the HDMI high-definition video processing downscale to 576i, 480i (PAL / NTSC) video signal output
With advanced video processing chip, for better compatibility and image quality
Self-powered by HDMI port (USB Power is a backup power source and Not Required as most HDMI port can supply sufficient power)
HDCP Compliant, support most HDCP HDMI output, e.g. Apple TV, Foxtel, and other Internet Streaming Box
Specifications
Model: CM413
HDMI Version: 1.4, backward compatible with HDMI 1.1,1.2,1.3
HDCP Compliant: Yes
Support TV formats: NTSC and PAL
Inputs: HDMI x 1
Outputs: AV x 1; L / R x 1
HDMI input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz
CVBS output: 480i, 576i
Dimensions : 55mm(W)x66mm(D)x 20mm(H)
Weight Converter : 40 gram
PAL and NTSC standard format selector switch
Package Contents
1 x CM413 HDMI to AV Converter
1 x USB Cable (for backup power source only)
1 x HDMI Lead
| Features | |
| Converter type | Active video converter |
| Internal The product is built in. |
 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Video | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1920 x 1080 pixels |
| Supported video modes The video modes that can be displayed by the device. | 480p, 576p, 720p, 1080i, 1080p |
| Analog signal format system The supported protocols for exchanging analog signals. | NTSC, PAL |
| Maximum refresh rate | 60 Hz |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | HDMI |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | Composite |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| USB powered The device can be powered via a USB connection. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 55 mm |
| Depth The distance from the front to the back of something. | 66 mm |
| Height The measurement of the product from head to foot or from base to top. | 20 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 40 g |
| Packaging data | |
| Cables included | USB |
| Quantity The number of products there are. | 1 |
| SKU | 266742 |
| MPN | CM413 |
| Brand | Simplecom |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.simplecom.com.au/ |
