3.5mm Audio Input, Compatible with HDMI version 1.3

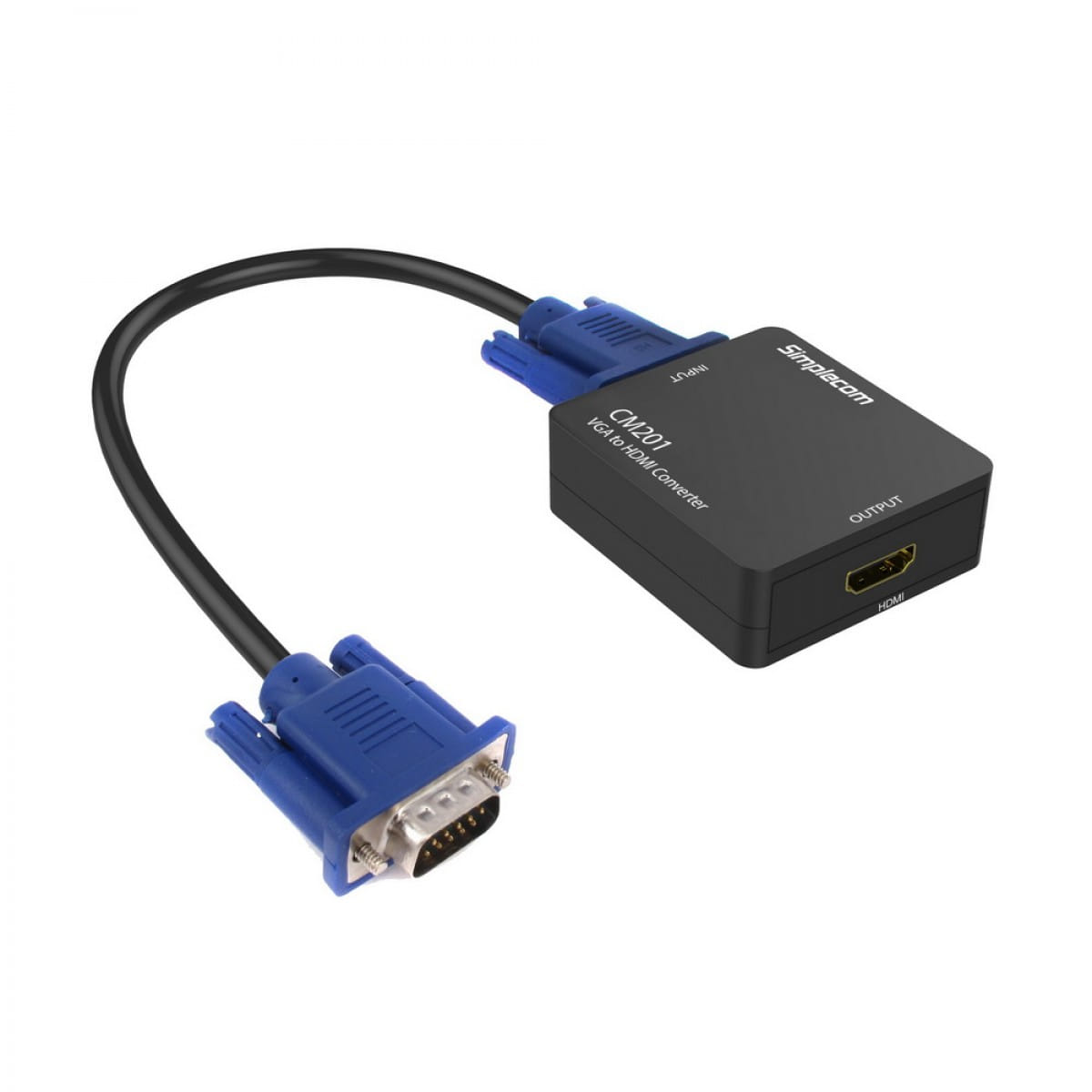

Simplecom CM201 VGA to HDMI Converter allows you to convert analog VGA signals to digital HDMI signals. The converter will take audio from the 3.5mm audio input and powered by USB, making it ideal for connecting PCs and laptops to HDMI displays such as HDTVs.
Features
- VGA to HDMI adapter offers you a convenient way to connect PCs, Laptops with VGA to displays such as Projectors, Monitors, and HDTVs with HDMI
- The converter will take audio from the 3.5mm audio input
- Powered by USB, plug into either a USB wall adapter or a nearby USB port on PC or TV
- Support HDMI digital output with resolutions up to 1080p
- Simple installation, plug & play
- Compatible with HDMI version 1.3
Specifications
Supports VGA Resolution- 640x480@60Hz,800x600@60Hz,1024x768@60Hz,1280x720@60Hz,1280x769@60Hz,1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1600x1200@60Hz,1920x1080@60Hz
- Output ports: HDMI support: 480P, 720P, 1080P@60Hz
- 1x 15 Pin VGA Female Socket (Cable Included)
- 1x 3.5mm Stereo Audio Female Socket (Cable Included)
- 1x Mini USB port for power (Cable Included)
- 1x HDMI Female Socket (HDMI Cable Not Included)
Important Note
- This converter is NOT bi-directional. It only converts from VGA to HDMI
- For laptop users, you must shift between the normal display and the one connected to VGA port. Please click the Fn+Screen Switch Key (Refer to notebook's User Manual for different Screen Switch Key)
Package Contents
- 1x CM201 VGA to HDMI converter
- 1x USB Power cable
- 1x Short VGA Male to Male Cable
- 1x 3.5mm Stereo Audio Cable
| Features | |
| Converter type | Active video converter |
| Internal The product is built in. |
 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Video | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1920 x 1080 pixels |
| Video resolutions The amount of detail that can be seen in the video image. | 640 x 480,800 x 600,1024 x 768,1280 x 1024,1280 x 720,1280 x 768,1280 x 800,1600 x 1200,1920 x 1080 |
| Supported video modes The video modes that can be displayed by the device. | 480p, 720p, 1080p |
| Maximum refresh rate | 60 Hz |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | VGA (D-Sub) + 3.5 mm (1/8") |
| Output interface The ports (sockets) where the device is connected via connectors and cables to external devices. | HDMI |
| Connection to PC Capability of connection product to PC. |
|
| 3.5 mm connector |
|
| Power | |
| USB powered The device can be powered via a USB connection. |
|
| Packaging data | |
| Cables included | Audio (3.5mm), Mini-USB, VGA |
| SKU | 210364 |
| MPN | CM201 |
| Brand | Simplecom |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Stock Availability | Available for Shipping, In Stock at Bankstown, In Stock at Castle Hill, In Stock at Warehouse |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.simplecom.com.au/ |
