Supports 2x M.2 SSD simultaneously - PCI-E Interface Speed: Up to 32Gbps - SATA Interface Speed: Up to 6Gbps - No Driver Installation Required
Specifications
- Interface: PCI Express X4 / SATA 6Gbps
- SSD Interface: M.2(NGFF)
- Module Key: B key (SATA-based), M key (PCI-E 4X-based, NVMe)
- Number of Drives: 2
- Supported Type M.2 SSD: 2230, 2242, 2260 and 2280
- Supported Length of M.2 SSD: 30mm, 42mm, 60mm, 80mm
Important Note
- M key M.2 is for use with PCI-E (NVMe) SSD only, B key M.2 is for use with SATA SSD only.
- B key M.2 SSD requires SATA 7 pin cable connected to motherboard to function.
- NVMe M.2 SSD requires the use of Intel 9 series (Z97 H97 Z170 X99) or higher version chipset based motherboard with Windows 8 or higher operating system.
- It’s recommended to update your motherboard’s driver and BIOS to the latest version before install the Expansion Card.

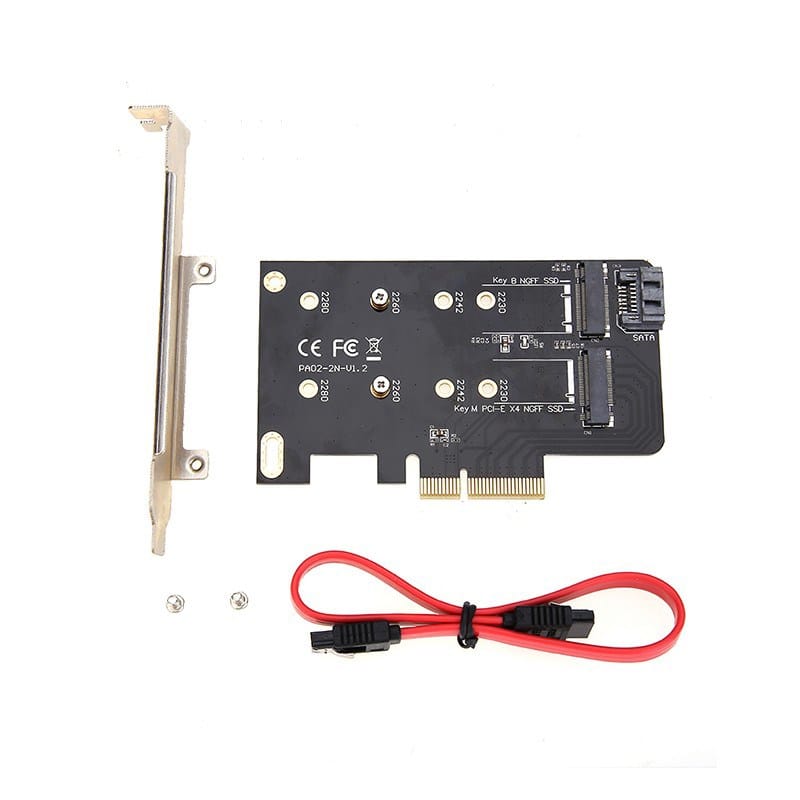

Package Contents
- 1x PCI Express Expansion Card
- 2x Mounting Screws
- 1x SATA Cable
| Features | |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express x4 |
| Compatibility The other products, software and hardware this product can be used with. | Supports two M.2 SSD |
| SKU | 367136 |
| MPN | EC412 |
| Brand | Simplecom |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.simplecom.com.au/ |
