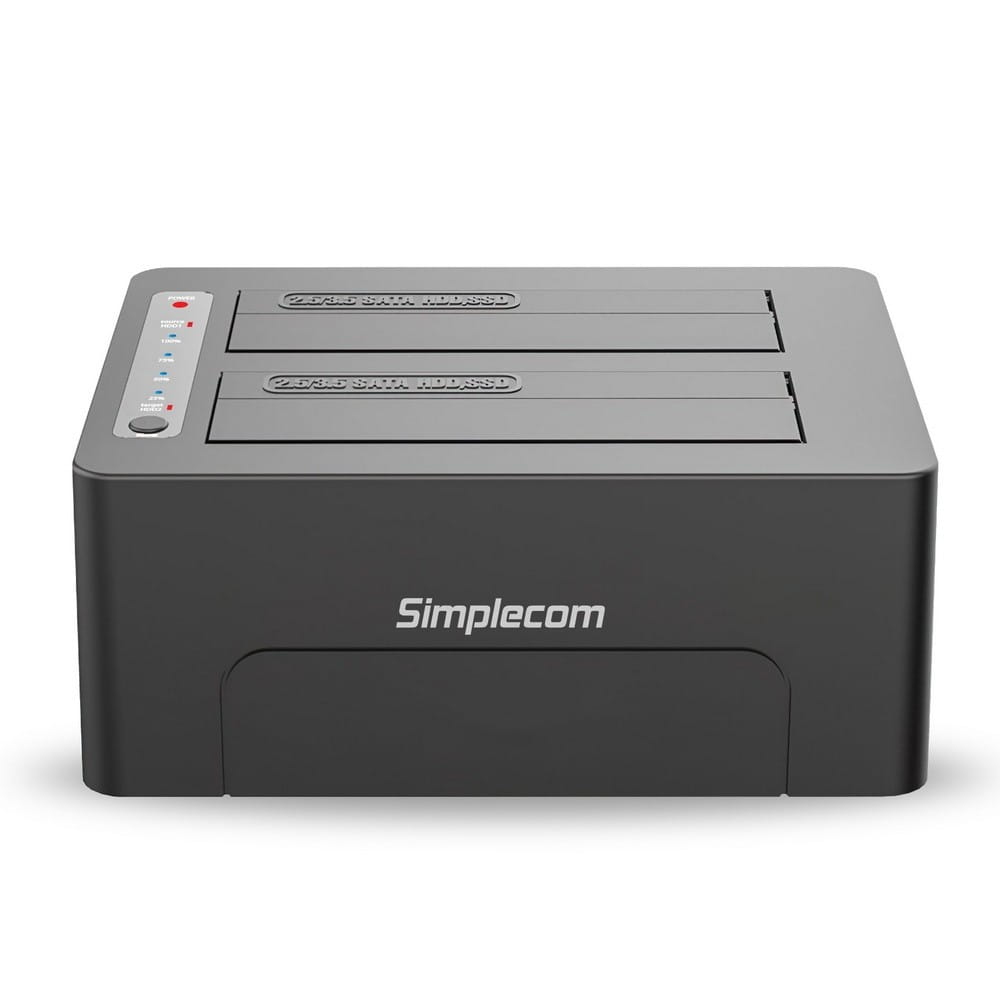

Simplecom SD422 Dual Bay USB 3.0 Docking Station for 2.5' and 3.5' SATA Drive
SD422 is a dual bay SATA docking station designed to support two 2.5' or 3.5' SATA drives simultaneously. It provides a simple, fast and efficient solution for data recovery, drive imaging, and service centers, or any home and work environment that requires fast access to uninstalled/archived SATA drives. With USB 3.2 Gen 1 (formerly known as USB 3.0) interface, you can take advantage of super speed data transfer rate up to 5Gbps.
SD422 can be connected to a computer via USB for use as an external hard drive dock, with Multi-LUN Support, 2 SATA slots will show separate drive letters, so you can access data from 2 SATA slots simultaneously, you can also copy files from one drive to another drive easily. It also can be also used as a standalone duplicator dock when not connecting USB to a computer and lets you clone an existing hard drive without the use of a host computer.
Features
Designed for direct insertion of two 2.5 inch or 3.5 inch SATA HDD/SSD
USB 3.2 Gen 1 (USB 3.0) Interface, transfer rates up to 5Gbps
Backwards compatible with USB 2.0, transfer rates up to 480Mbps
Multi-LUN Support, separate drive letters for 2 SATA slots
LED light indicates Power and Activity status
Hot-swappable, plug and play, no drivers needed
Support UASP (USB Attached SCSI Protocol)
Support offline clone, standalone duplicating/cloning without host computer
Compatible with Windows XP and above (32/64-bit), Mac OS 10.4 and above
Specifications
Model: SD422
Interface: USB 3.2 Gen 1 (USB 3.0)
Transfer Rate: up to 5Gbps
Material: ABS Plastic
SATA Slots Support: two 2.5' or 3.5' SATA HDD or SSD
Offline Clone Support: Yes
Multi-LUN Support: Yes (separate drive letters for 2 SATA slots)
DC Input: 12V3A
Dimension: 152x109x62mm (LxWxH)
Operating System Support: Windows XP and above, Mac OS 10.4 and above
Package Contents
1x USB 3.0 Dual Bay SATA Docking Station
1x USB 3.0 Cable
1x 12V3A Power Adapter
1x User Manual
SD422 can be connected to a computer via USB for use as an external hard drive dock, with Multi-LUN Support, 2 SATA slots will show separate drive letters, so you can access data from 2 SATA slots simultaneously, you can also copy files from one drive to another drive easily. It also can be also used as a standalone duplicator dock when not connecting USB to a computer and lets you clone an existing hard drive without the use of a host computer.
Features
Designed for direct insertion of two 2.5 inch or 3.5 inch SATA HDD/SSD
USB 3.2 Gen 1 (USB 3.0) Interface, transfer rates up to 5Gbps
Backwards compatible with USB 2.0, transfer rates up to 480Mbps
Multi-LUN Support, separate drive letters for 2 SATA slots
LED light indicates Power and Activity status
Hot-swappable, plug and play, no drivers needed
Support UASP (USB Attached SCSI Protocol)
Support offline clone, standalone duplicating/cloning without host computer
Compatible with Windows XP and above (32/64-bit), Mac OS 10.4 and above
Specifications
Model: SD422
Interface: USB 3.2 Gen 1 (USB 3.0)
Transfer Rate: up to 5Gbps
Material: ABS Plastic
SATA Slots Support: two 2.5' or 3.5' SATA HDD or SSD
Offline Clone Support: Yes
Multi-LUN Support: Yes (separate drive letters for 2 SATA slots)
DC Input: 12V3A
Dimension: 152x109x62mm (LxWxH)
Operating System Support: Windows XP and above, Mac OS 10.4 and above
Package Contents
1x USB 3.0 Dual Bay SATA Docking Station
1x USB 3.0 Cable
1x 12V3A Power Adapter
1x User Manual
| Hard drive | |
| Storage media type Type of storage medium, like flash, hard disk drive, etc. | HDD, SSD |
| Storage drive interface Where the storage device links with other parts of the product, or an external device. | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | 2.5,3.5,5.25" |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 2 |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity The number of USB 3.0 ports (sockets). USB 3.0 was released in November 2008. The standard defines a new SuperSpeed mode with a signaling speed of 5 Gbit/s and a usable data rate of up to 4 Gbit/s. A USB 3.0 port is usually colored blue, and is backwards compatible with USB 2.0. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Features | |
| Maximum data transfer rate | 5 Gbit/s |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Acrylonitrile butadiene styrene (ABS) |
| Hot-swap |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| LED indicators | Activity, Power |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Cooling | |
| Built-in fan |
 |
| Power | |
| Output voltage | 12 V |
| Output current | 3 A |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 109 mm |
| Depth The distance from the front to the back of something. | 152 mm |
| Height The measurement of the product from head to foot or from base to top. | 62 mm |
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 11,Windows 8,Windows 8.1,Windows Vista |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur |
| SKU | 540761 |
| MPN | SD422 |
| Brand | Simplecom |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.simplecom.com.au/ |
