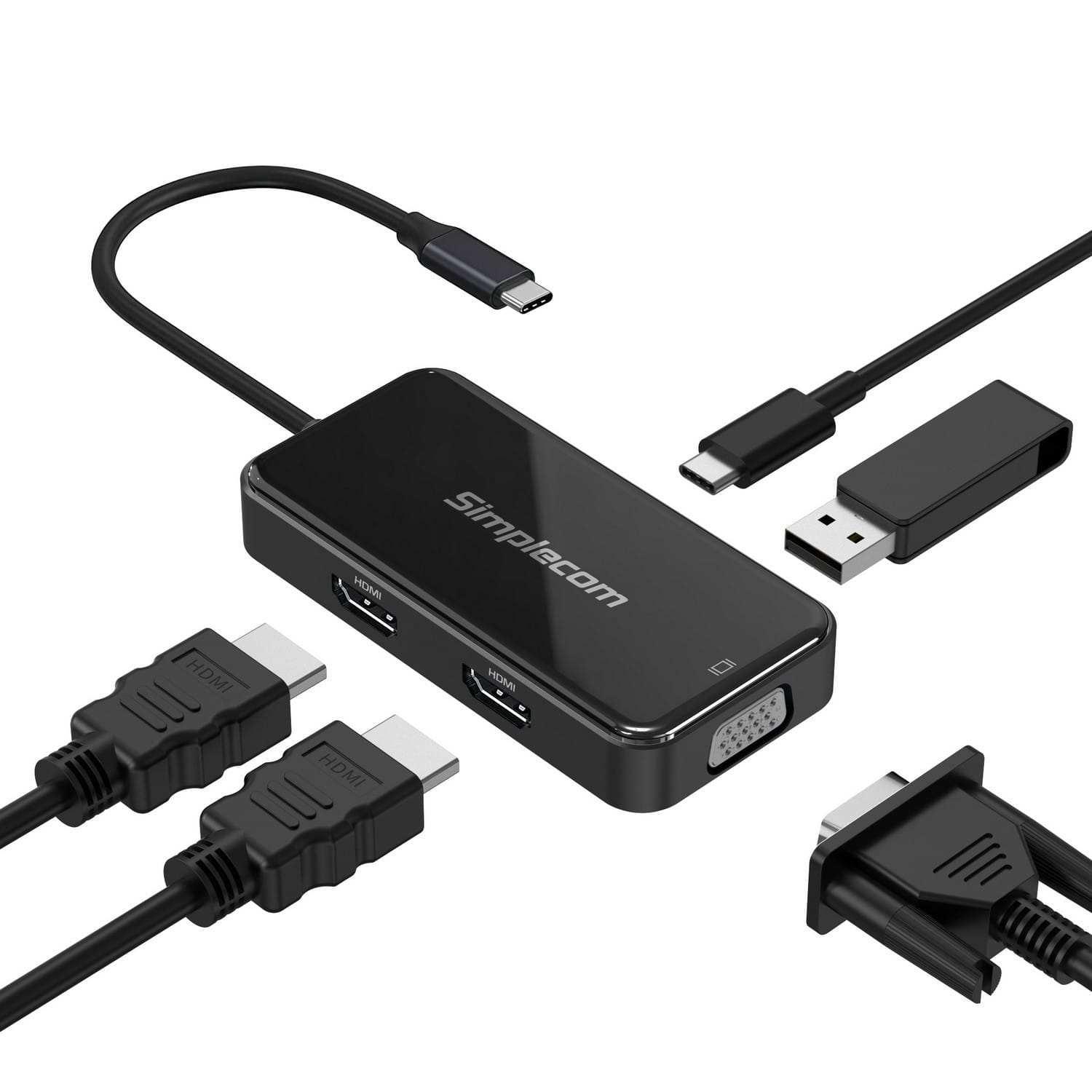

Simplecom DA451 5 in 1 USB C Multiport Adapter MST Hub with VGA and Dual HDMI
Simplecom DA451 5 in 1 USB C Multiport Adapter MST Hub with VGA and Dual HDMI
Features
Support MST (Multi Stream Transport) for mirror or extended screen mode
Connect 3 displays to your system through a single USB C port
Supports up to 3 mirrored screens or 2 extended screens
Significantly increase productivity by adding multiple screens
HDMI supports Ultra HD resolutions up to 4K@30Hz (Single HDMI)
VGA supports Full HD resolutions up to 1080p@60Hz
Supports Power Delivery up to 100W charging via the USB C port
USB A SuperSpeed port supports data transfer rate up to 5Gbps
Plug and Play, no Driver or software required
MST supports Windows only, MacOS supports one extended screen only
Specifications
Material: Plastic, Aluminum
Interface: USB C Male
Connection Ports: 2x HDMI, VGA, USB A, USB C PD
HDMI Resolution: Support up to 3840x2160 at 30Hz (Single HDMI)
VGA Resolution: Support up to 1920x1080 at 60Hz
PD Charging: 1x USB C Female (for charging only), up to 100W
USB A Port: 1x USB A Female (SuperSpeed 5Gbps)
Operation Temperature: 0 50 DegC
Cable Length: 15cm
Dimension: 9.2cm x 4.5cm x 1.6cm
Weight: 60g
System Requirements
Available USB C port with DP Alt Mode (DisplayPort Alternate Mode) support
Windows 8 or above for MST and 2 Extended Screen support
MacOS does not support MST technology and will only support one extended mode
Important Note
Before purchasing, please confirm the USB C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB C ports only work for charging or data transfer, no video output function
Screen resolution will be limited to 1080p when two HDMI monitors are connected
Screen resolution will be limited to 1080p when VGA port is connected
The USB C Female port is for PD Charging only, not for data transfer
Please connect power delivery adapter when power is not enough
USB A port is not suitable for charging iPad, tablet or other high power USB devices
Features
Support MST (Multi Stream Transport) for mirror or extended screen mode
Connect 3 displays to your system through a single USB C port
Supports up to 3 mirrored screens or 2 extended screens
Significantly increase productivity by adding multiple screens
HDMI supports Ultra HD resolutions up to 4K@30Hz (Single HDMI)
VGA supports Full HD resolutions up to 1080p@60Hz
Supports Power Delivery up to 100W charging via the USB C port
USB A SuperSpeed port supports data transfer rate up to 5Gbps
Plug and Play, no Driver or software required
MST supports Windows only, MacOS supports one extended screen only
Specifications
Material: Plastic, Aluminum
Interface: USB C Male
Connection Ports: 2x HDMI, VGA, USB A, USB C PD
HDMI Resolution: Support up to 3840x2160 at 30Hz (Single HDMI)
VGA Resolution: Support up to 1920x1080 at 60Hz
PD Charging: 1x USB C Female (for charging only), up to 100W
USB A Port: 1x USB A Female (SuperSpeed 5Gbps)
Operation Temperature: 0 50 DegC
Cable Length: 15cm
Dimension: 9.2cm x 4.5cm x 1.6cm
Weight: 60g
System Requirements
Available USB C port with DP Alt Mode (DisplayPort Alternate Mode) support
Windows 8 or above for MST and 2 Extended Screen support
MacOS does not support MST technology and will only support one extended mode
Important Note
Before purchasing, please confirm the USB C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB C ports only work for charging or data transfer, no video output function
Screen resolution will be limited to 1080p when two HDMI monitors are connected
Screen resolution will be limited to 1080p when VGA port is connected
The USB C Female port is for PD Charging only, not for data transfer
Please connect power delivery adapter when power is not enough
USB A port is not suitable for charging iPad, tablet or other high power USB devices
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| USB Power Delivery |
 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| Microphone in The socket where a microphone is connected to the device. |
 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Performance | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 5 Gbit/s |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported The number of displays that can be used with this product. | 3 |
| Maximum refresh rate | 60 Hz |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Housing material What the casing of the product is made of. | Aluminium, Plastic |
| Power | |
| Power source type What the power source is. | USB |
| USB cable length | 0.15 m |
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 92 mm |
| Depth The distance from the front to the back of something. | 45 mm |
| Height The measurement of the product from head to foot or from base to top. | 16 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 60 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| SKU | 734864 |
| MPN | DA451 |
| Brand | Simplecom |
| Product Condition | Brand New/Unused |
| Adapter Type | USB Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.simplecom.com.au/ |
