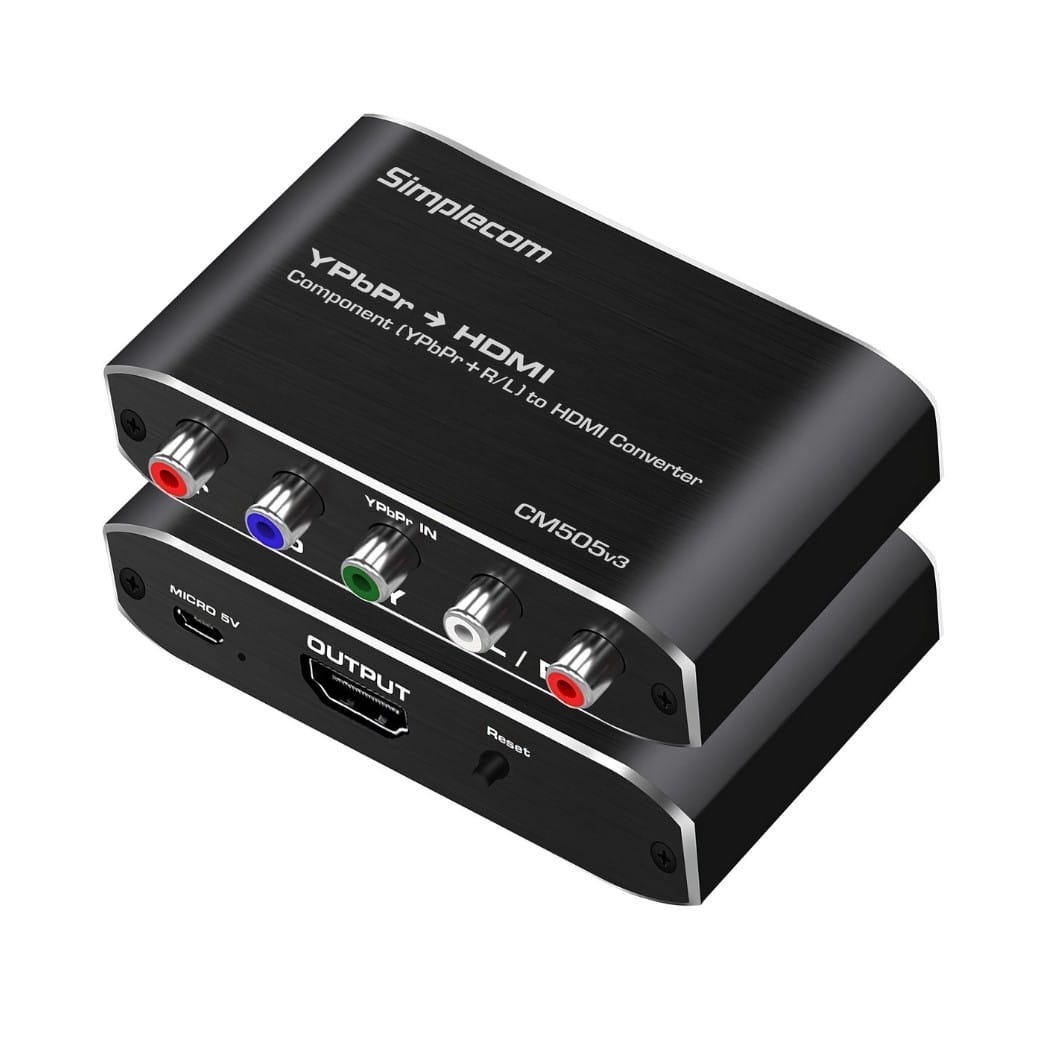

Simplecom CM505v3 Component (YPbPr + Stereo R/L) to HDMI Converter Full HD 1080p
Simplecom CM505v3 Component (YPbPr + Stereo R/L) to HDMI Converter Full HD 1080p
Feature
Convert analog component video (YPbPr + Stereo R/L) to digital HDMI output
Supports video resolutions up to Full HD 1080p
Support 165MHz/1.65Gbps per channel (4.95Gbps all channels) bandwidth
Support 8bit per channel (24bit all channel) deep color
Support uncompressed 2 channel audio such as LPCM
Powered by USB, plug into either USB wall adapter or a nearby USB port on TV
Aluminium case for durability and excellent heat dissipation
Ideal for legacy component video devices such as STB, DVD players, game consoles
Specifications
Model: CM505v3
Input: Component (YPbPr) + R/L Stereo
Output: HDMI
Case Material: Aluminium
Video Amplifier Bandwidth: 1.65Gbps/165MHz per channel
Vertical Frequency Range: 50/60Hz
Interlaced Resolutions (50&60Hz): 480i, 576i, 1080i
Progressive Resolutions (50&60Hz): 480p, 576p, 720p, 1080p
Operating Temperature: 0DegC to 70DegC
Operating Humidity: 10% to 85% RH
Storage Temperature: -10DegC to +80DegC
Storage Humidity: 5% to 90% RH
Power Input: USB 5V1A
Power consumption (MAX): 5W
Package Contents
1x Component to HDMI converter
1x HDMI Cable
1x USB Power cable
1x USB Wall Adapter
Important Note
The converter only works in one direction, from Component to HDMI, and cannot be used in reverse
This adapter only converts video format from component to HDMI and does not upscale the resolution. The display screen must support the same resolution as the input source. (e.g. if the component input is 1080i, the HDMI output is also 1080i)
Supports 2 channel analog audio input, but will not only convert audio
Feature
Convert analog component video (YPbPr + Stereo R/L) to digital HDMI output
Supports video resolutions up to Full HD 1080p
Support 165MHz/1.65Gbps per channel (4.95Gbps all channels) bandwidth
Support 8bit per channel (24bit all channel) deep color
Support uncompressed 2 channel audio such as LPCM
Powered by USB, plug into either USB wall adapter or a nearby USB port on TV
Aluminium case for durability and excellent heat dissipation
Ideal for legacy component video devices such as STB, DVD players, game consoles
Specifications
Model: CM505v3
Input: Component (YPbPr) + R/L Stereo
Output: HDMI
Case Material: Aluminium
Video Amplifier Bandwidth: 1.65Gbps/165MHz per channel
Vertical Frequency Range: 50/60Hz
Interlaced Resolutions (50&60Hz): 480i, 576i, 1080i
Progressive Resolutions (50&60Hz): 480p, 576p, 720p, 1080p
Operating Temperature: 0DegC to 70DegC
Operating Humidity: 10% to 85% RH
Storage Temperature: -10DegC to +80DegC
Storage Humidity: 5% to 90% RH
Power Input: USB 5V1A
Power consumption (MAX): 5W
Package Contents
1x Component to HDMI converter
1x HDMI Cable
1x USB Power cable
1x USB Wall Adapter
Important Note
The converter only works in one direction, from Component to HDMI, and cannot be used in reverse
This adapter only converts video format from component to HDMI and does not upscale the resolution. The display screen must support the same resolution as the input source. (e.g. if the component input is 1080i, the HDMI output is also 1080i)
Supports 2 channel analog audio input, but will not only convert audio
| SKU | 785516 |
| MPN | CM505V3 |
| Brand | Simplecom |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.simplecom.com.au/ |
