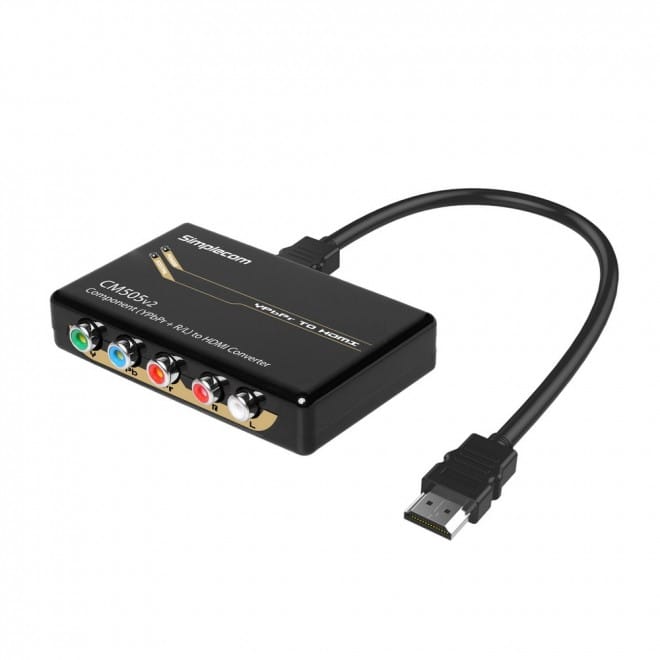

Simplecom CM505v2 Component (YPbPr + Stereo R/L) to HDMI Converter Full HD 1080p
CM505v2 is a Component to HDMI converter lets you convert and combine analog component video and audio (YPbPr + Stereo R/L) into a single HDMI output. This Component to HDMI converter supports high definition video resolutions up to 1080p, providing easy and convenient way to connect legacy component video device to modern HDMI display.
It can be applied for most component video devices, such as legacy STB, DVD players, game consoles, and more. Easy to use, plug and play, it supports 165MHz/1.65Gbps per channel (4.95Gbps all channels) bandwidth ensure no distortion of video or audio signal, and no lag in signal transmission.
Feature
Convert analog component video (YPbPr + Stereo R/L) to digital HDMI output
Powered by USB, plug into either USB wall adapter or a nearby USB port on PC or TV
Supports full range of component video resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Support 165MHz/1.65Gbps per channel (4.95Gbps all channels) bandwidth
Support 8bit per channel (24bit all channel) deep color
Support uncompressed 2 channel audio such as LPCM
Ideal for legacy component video devices such as STB, DVD players, game consoles
Specifications
Input: Component (YPbPr) + R/L Stereo
Output: HDMI
DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
Video Amplifier Bandwidth: 1.65Gbps/165MHz per channel
Vertical Frequency Range: 50/60Hz
Interlaced Resolutions (50&60Hz): 480i,576i,1080i
Progressive Resolutions (50&60Hz): 430p,576p,720p,1080p
Operating Temperature: 0 DegC to 70 DegC
Operating Humidity: 10% to 85% RH
Storage Temperature: -10 DegC to +80 DegC
Storage Humidity: 5% to 90% RH
Power Supply: USB
Power consumption (MAX): 5W
Package Contents
1x Component to HDMI converter
1x HDMI Lead
1x USB Power cable
1x USB Wall Adapter
Important Note
This converter is Component to HDMI one way only, doesn't work in reverse way
This adapter converts video format only, and doesn't change the resolution, the display screen has to support same resolut
It can be applied for most component video devices, such as legacy STB, DVD players, game consoles, and more. Easy to use, plug and play, it supports 165MHz/1.65Gbps per channel (4.95Gbps all channels) bandwidth ensure no distortion of video or audio signal, and no lag in signal transmission.
Feature
Convert analog component video (YPbPr + Stereo R/L) to digital HDMI output
Powered by USB, plug into either USB wall adapter or a nearby USB port on PC or TV
Supports full range of component video resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Support 165MHz/1.65Gbps per channel (4.95Gbps all channels) bandwidth
Support 8bit per channel (24bit all channel) deep color
Support uncompressed 2 channel audio such as LPCM
Ideal for legacy component video devices such as STB, DVD players, game consoles
Specifications
Input: Component (YPbPr) + R/L Stereo
Output: HDMI
DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p
Video Amplifier Bandwidth: 1.65Gbps/165MHz per channel
Vertical Frequency Range: 50/60Hz
Interlaced Resolutions (50&60Hz): 480i,576i,1080i
Progressive Resolutions (50&60Hz): 430p,576p,720p,1080p
Operating Temperature: 0 DegC to 70 DegC
Operating Humidity: 10% to 85% RH
Storage Temperature: -10 DegC to +80 DegC
Storage Humidity: 5% to 90% RH
Power Supply: USB
Power consumption (MAX): 5W
Package Contents
1x Component to HDMI converter
1x HDMI Lead
1x USB Power cable
1x USB Wall Adapter
Important Note
This converter is Component to HDMI one way only, doesn't work in reverse way
This adapter converts video format only, and doesn't change the resolution, the display screen has to support same resolut
| Ports & interfaces | |
| Connector 1 This is the first connector in the device. | HDMI |
| Connector 2 This is the second connector in the device. | YPbPr + R/L |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Supported video modes The video modes that can be displayed by the device. | 480p, 720p, 1080i, 1080p |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 1.65 Gbit/s |
| Maximum refresh rate | 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 80 °C |
| Relative humidity | 10 - 85% |
| SKU | 540578 |
| MPN | CM505V2 |
| Brand | Simplecom |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.simplecom.com.au/ |
