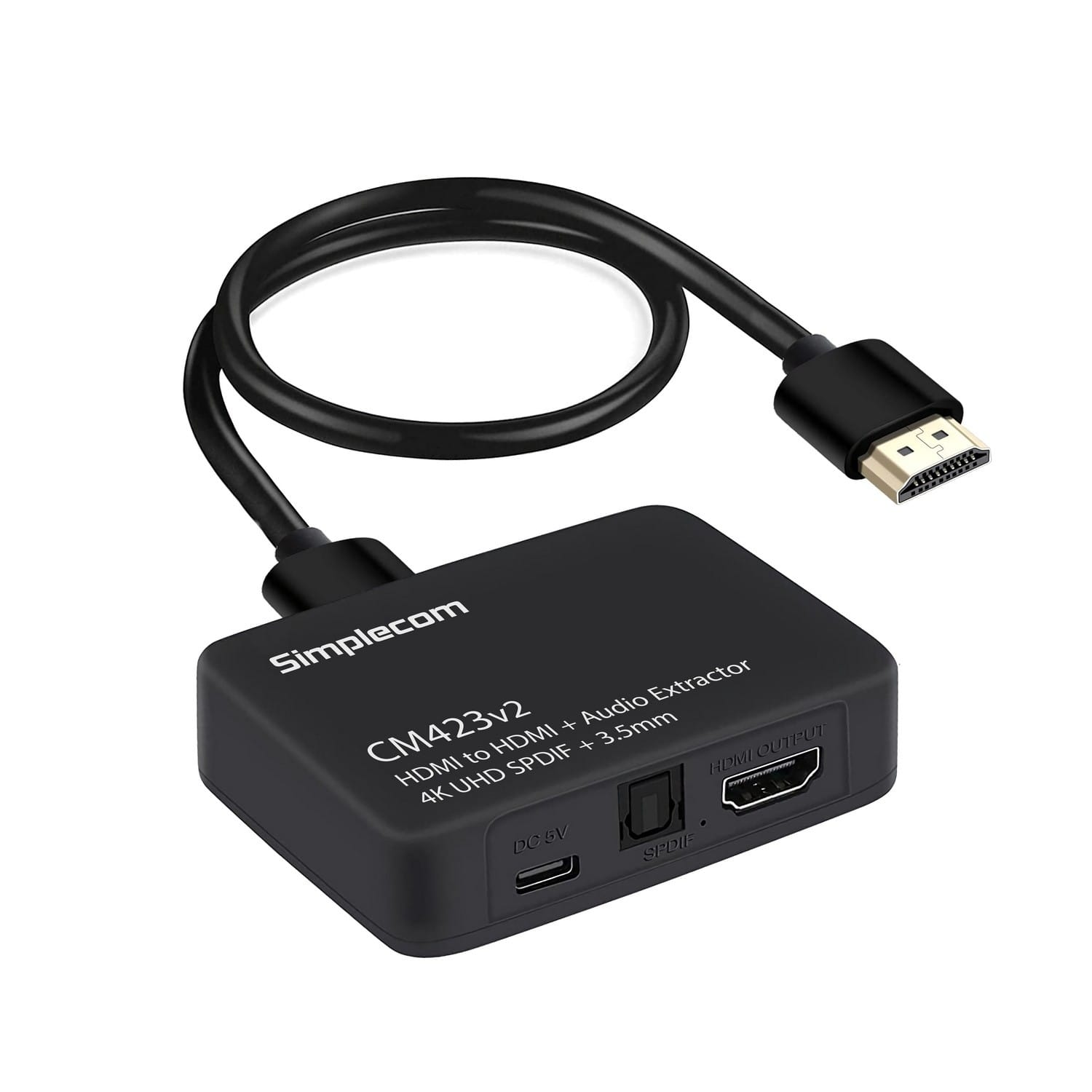

Simplecom CM423v2 HDMI Audio Extractor 4K HDMI to HDMI and Optical SPDIF 3.5mm Stereo
Features
Optical SPDIF and 3.5mm audio output extracted from HDMI input
One HDMI output for HDMI pass through
Ideal solution for connecting external speaker system with analog or optical input
SPDIF and 3.5mm jack can output audio simultaneously for 2.0CH audio
HDMI 1.4b and HDCP 1.4 Compliant
Supports HDMI resolution up to 4K Ultra HD
Powered by USB, plug and play
Supports compressed and uncompressed audio format, such as DTS HD, Dolby TrueHD, Dolby Digital, PCM, LPCM
Specifications
HDMI Version: HDMI 1.4b
HDCP Version: HDCP 1.4
EDID Support: EDID 1.4
Input: 1x HDMI Female
Audio Outputs: 1x SPDIF (Optical), and 1 x 3.5mm Stereo Audio (Analog)
Video Output: 1x HDMI Female (HDMI pass through)
HDMI Resolution Support: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Audio Format Support: DTS HD, Dolby TrueHD, Dolby AC3, PCM, LPCM, DTS, DSD
Max Bandwidth: 400 MHz
Max Baud Rate: 10.2 Gbps
Input/Output TMDS signal: 0.5~1.5Volts p p (TTL)
Input/Output DDC signal: 5Volts p p (TTL)
Max working current: 350mA
Operation Temperature: 10 DegC ~ 50 DegC
Dimension: 75 x 55 x 25mm (LxWxH)
Weight: 43g
Package Contents
1x HDMI Audio Extractor
1x 0.5M HDMI Cable
1x USB Power cable
1x USB Wall Charger
1x User Manual
Optical SPDIF and 3.5mm audio output extracted from HDMI input
One HDMI output for HDMI pass through
Ideal solution for connecting external speaker system with analog or optical input
SPDIF and 3.5mm jack can output audio simultaneously for 2.0CH audio
HDMI 1.4b and HDCP 1.4 Compliant
Supports HDMI resolution up to 4K Ultra HD
Powered by USB, plug and play
Supports compressed and uncompressed audio format, such as DTS HD, Dolby TrueHD, Dolby Digital, PCM, LPCM
Specifications
HDMI Version: HDMI 1.4b
HDCP Version: HDCP 1.4
EDID Support: EDID 1.4
Input: 1x HDMI Female
Audio Outputs: 1x SPDIF (Optical), and 1 x 3.5mm Stereo Audio (Analog)
Video Output: 1x HDMI Female (HDMI pass through)
HDMI Resolution Support: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Audio Format Support: DTS HD, Dolby TrueHD, Dolby AC3, PCM, LPCM, DTS, DSD
Max Bandwidth: 400 MHz
Max Baud Rate: 10.2 Gbps
Input/Output TMDS signal: 0.5~1.5Volts p p (TTL)
Input/Output DDC signal: 5Volts p p (TTL)
Max working current: 350mA
Operation Temperature: 10 DegC ~ 50 DegC
Dimension: 75 x 55 x 25mm (LxWxH)
Weight: 43g
Package Contents
1x HDMI Audio Extractor
1x 0.5M HDMI Cable
1x USB Power cable
1x USB Wall Charger
1x User Manual
| Features | |
| Audio connector |
 |
| Audio connector type | 3.5 mm (1/8") |
| Connector 1 This is the first connector in the device. | HDMI + 3.5mm |
| Connector 2 This is the second connector in the device. | HDMI |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Female |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Female |
| HDMI version | 1.4b |
| HDCP version | 1.4 |
| Supported video modes The video modes that can be displayed by the device. | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 10.2 Gbit/s |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 400 MHz |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cable type Type of cable e.g. electicity cable, optical cable. | Round cable |
| Supported audio channels | 5.1 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Dolby technologies | DTS-HD, Dolby Digital, Dolby TrueHD |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 50 °C |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 43 g |
| Width The measurement or extent of something from side to side. | 55 mm |
| Depth The distance from the front to the back of something. | 25 mm |
| Height The measurement of the product from head to foot or from base to top. | 75 mm |
| Packaging data | |
| Manual |
|
| SKU | 726620 |
| MPN | CM423V2 |
| Brand | Simplecom |
| Product Condition | Brand New/Unused |
| Adapter Type | HDMI Adapter, Audio Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.simplecom.com.au/ |
